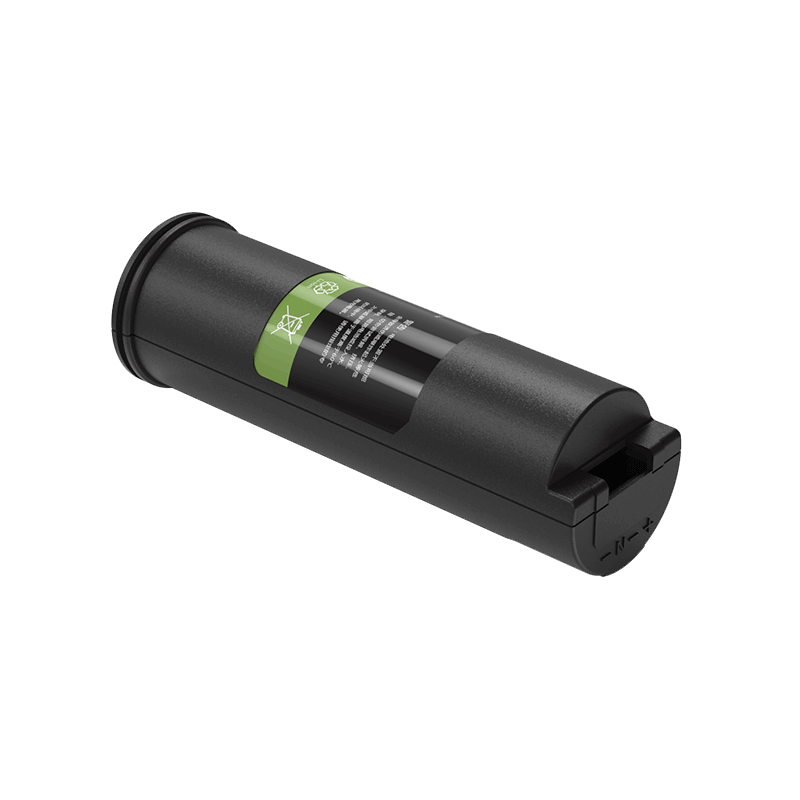

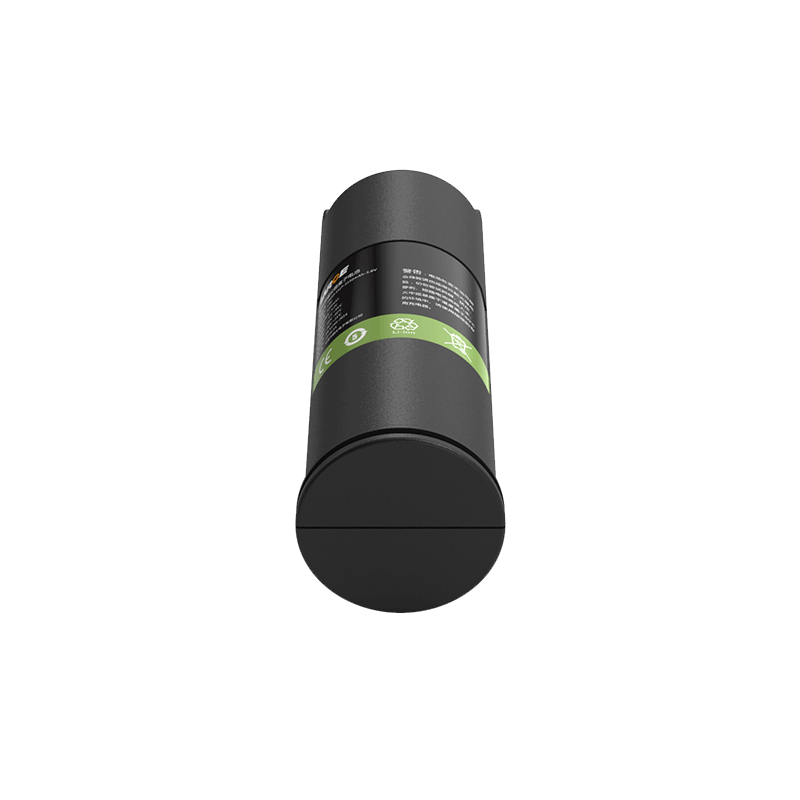

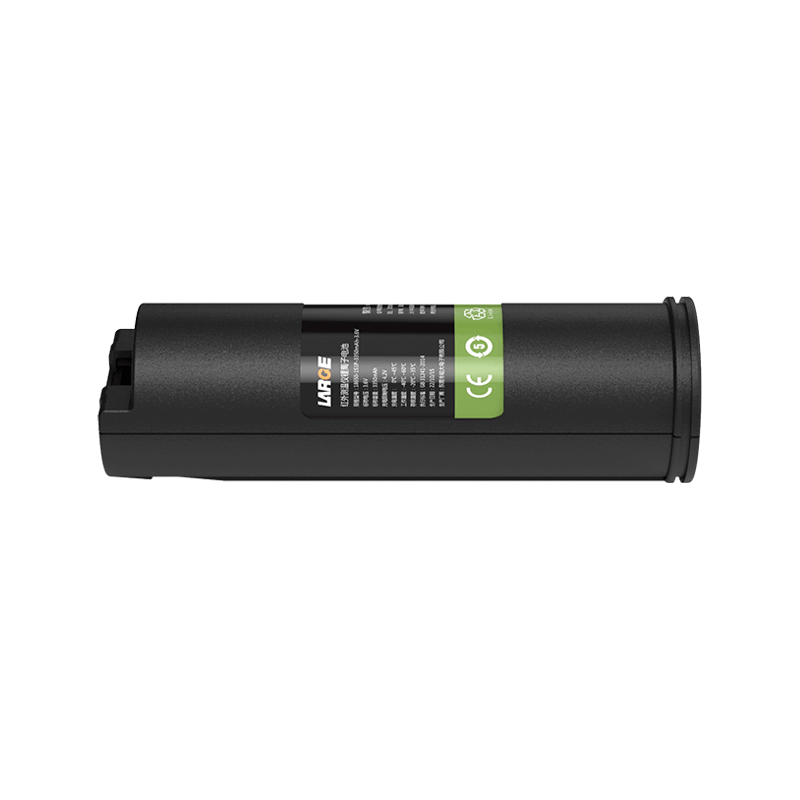

18650 3.6V 3350mAh Low Temperature Lithium-ion Battery for Infrared Thermoscope

Product number: 01DQ0030-13T

Cell model: 18650-3350mAh-3.6V

Battery specification: 18650-1S1P-3350mAh-3.6V

Product size: 74*φ22.8mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 3350mAh

Charging voltage: 4.2V

Charging current: ≤1.5A

Discharge current: ≤3A

Discharge cut-off voltage: 3.0V

Internal resistance of finished product: ≤100mΩ

Battery weight: 60g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: ABS+PC case

Output: gold plated shrapnel

Lithium battery protection: short circuit / over charge / over discharge / over current / ESD protection, etc.

Application: Temperature tester, portable thermometer, handheld terminal testing equipment
