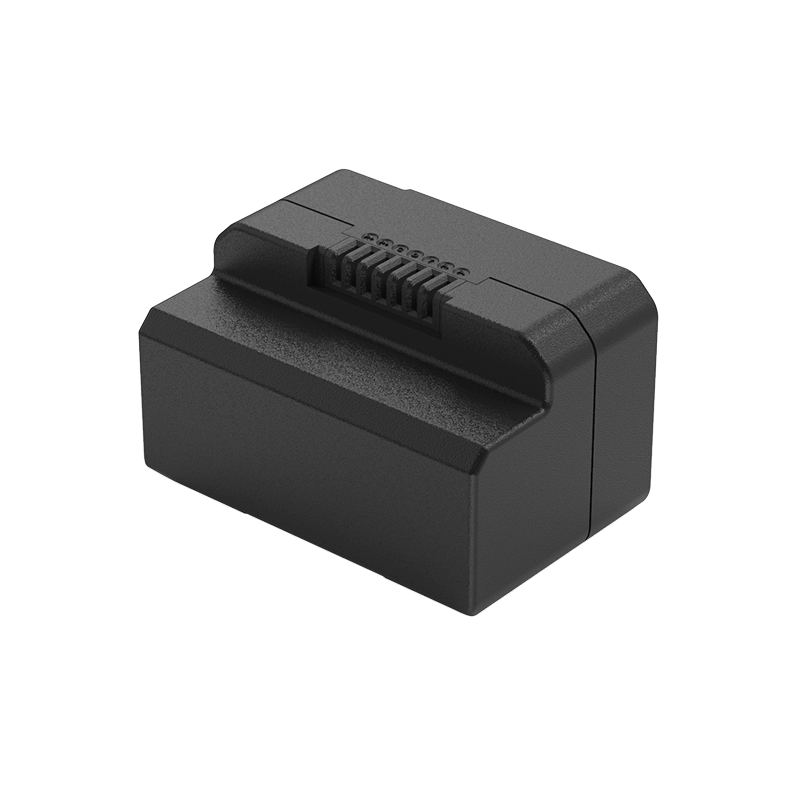

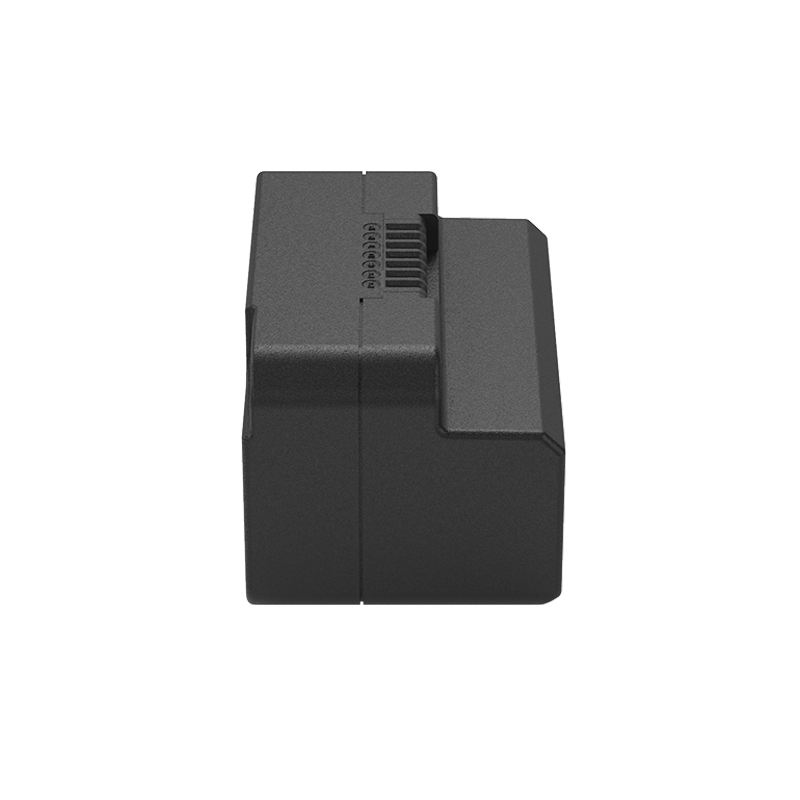

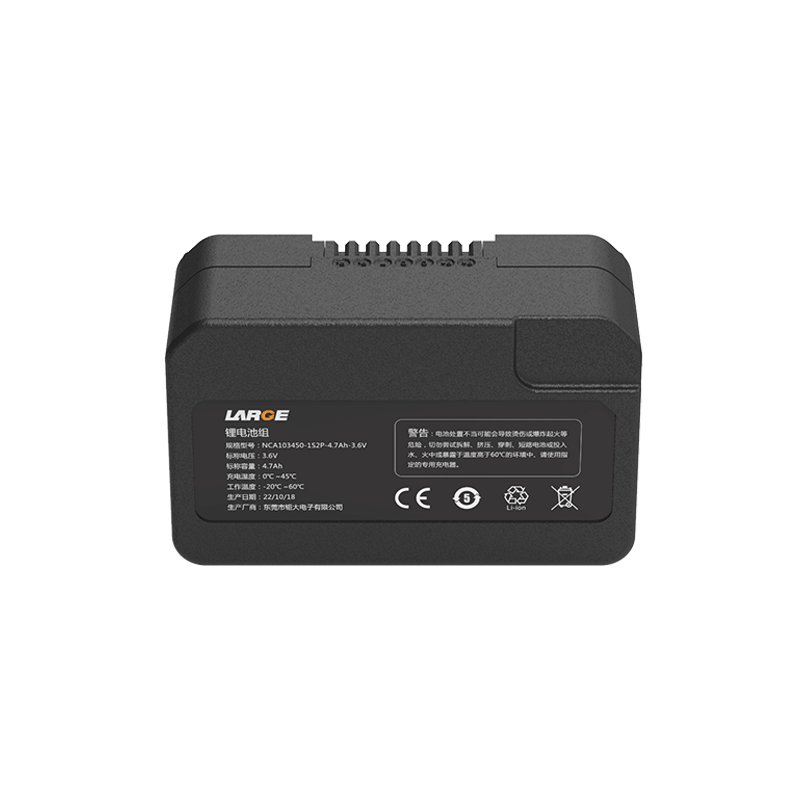

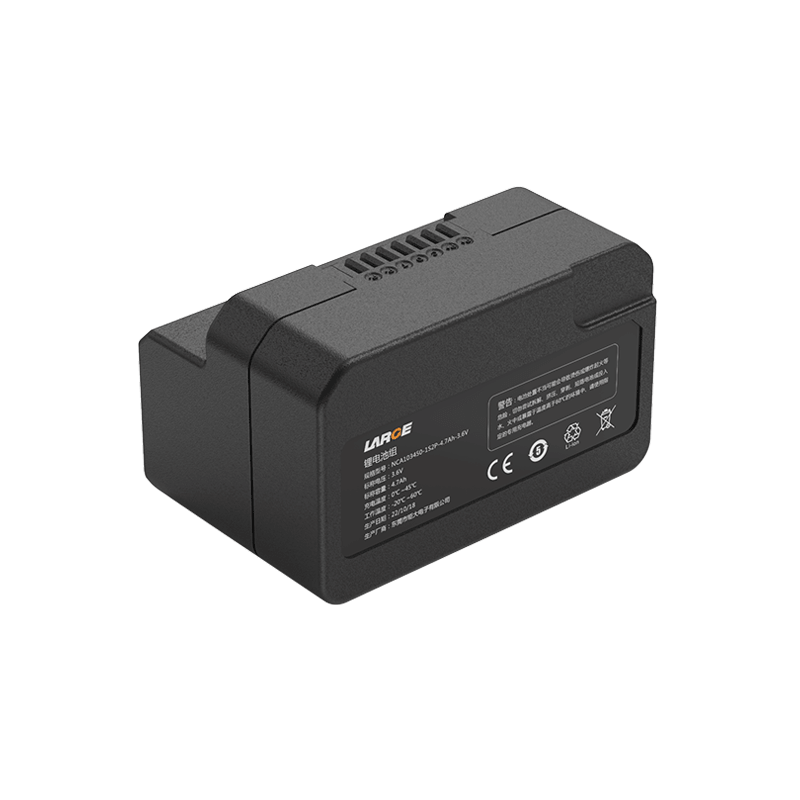

103450 3.6V 4700mAh Lithium-ion Battery Pack

103450 3.6V 4700mAh Lithium-ion Battery Pack
103450 3.6V 4700mAh Lithium-ion Battery Pack
103450 3.6V 4700mAh Lithium-ion Battery Pack
103450 3.6V 4700mAh Lithium-ion Battery Pack

Product Detail

Product number: 36AQ619-01

Cell model: NCA103450-2350mAh-3.6V

Battery specification: NCA103450-1S2P-4.7Ah-3.6V

Product size: 55.9*34*37.4±0.3mm (L*W*H)

Nominal voltage: 3.6V

Nominal capacity: 4700mAh

Charging voltage: 21V

Charging current: 2000mA

Discharge current: 2000mA

Discharge cut-off voltage: 2.5V

Finished internal resistance: ≤200mΩ

Battery weight: 150g

Charging temperature: 10 ~ 45℃

Discharge temperature: -20~+60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: plastic case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Equipment


Product Features

1.Plastic case is simple and reliable, and is easy to install.

2.I2c protocol

3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;

4.Battery protection management: Use imported well-known brand protection chip with nice stability, high precision monitoring, precise control, to eliminate security risks.

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.

*
*
*
*
*
