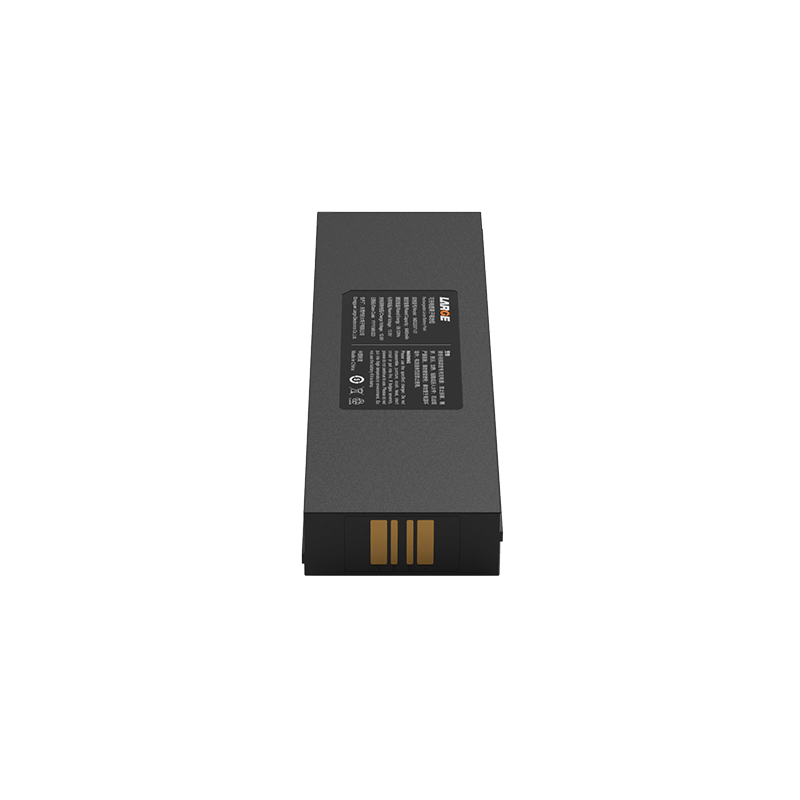

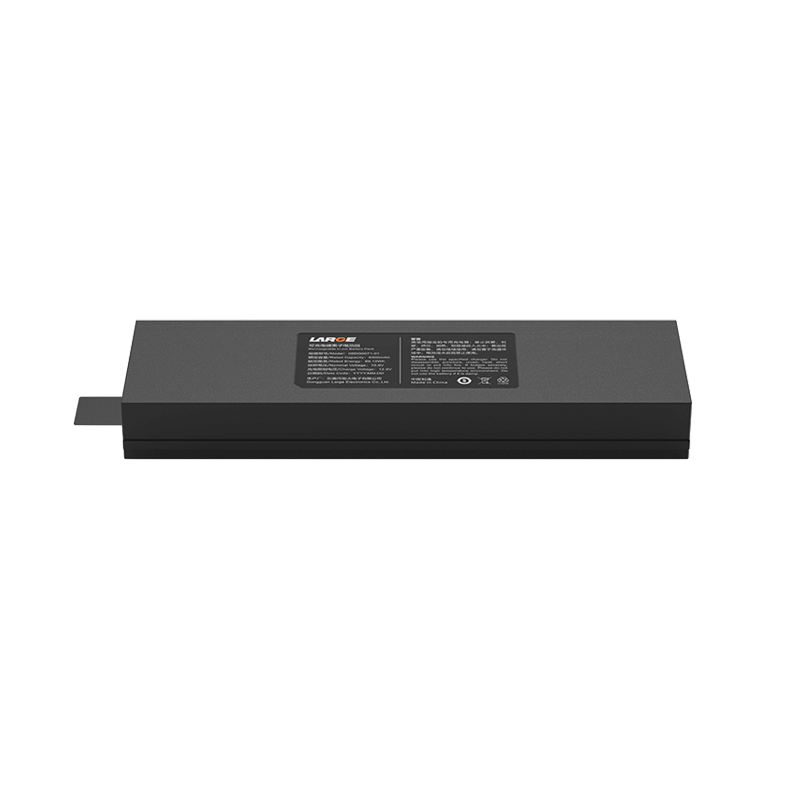

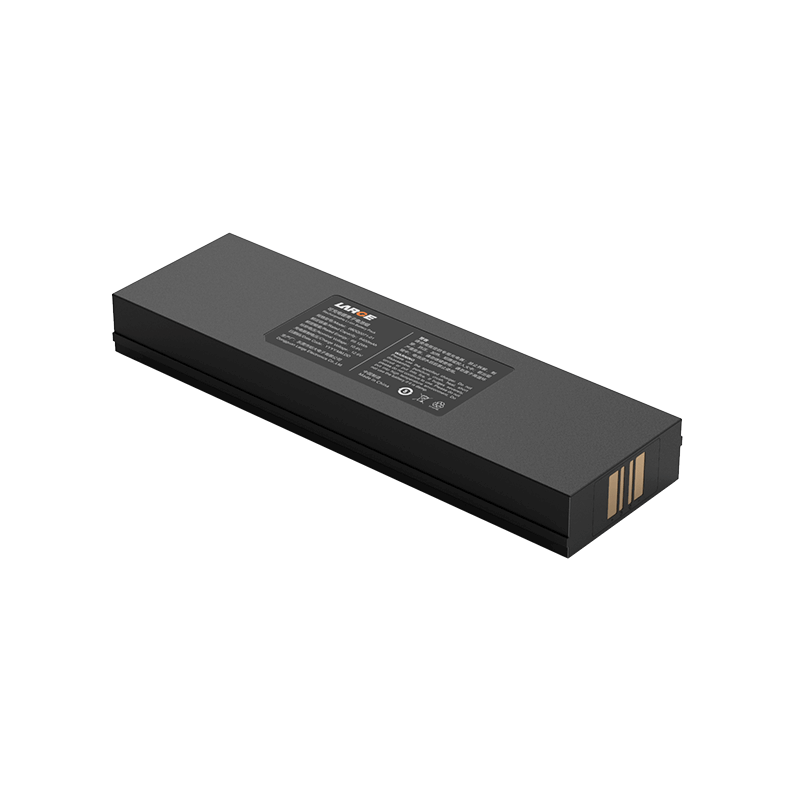

18650 10.8V 6.7Ah Lithium-ion Battery Pack

Product number: 08DQ0071-01

Battery model: 18650-3.6V-3350mAh

Battery specification: 18650-3S2P-10.8V-6.7Ah

Product size: 200±0.5mm ×60±0.3mm×23±0.3mm

Nominal voltage: 10.8V

Nominal capacity: 6.7Ah

Charging voltage: 12.6V

Charging current: 2.5A

Discharge current: 2.5A

Discharge cut-off voltage: 7.5V

Finished internal resistance: ≤180mΩ

Battery weight: 450g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: plastic case

Communication protocol: SMBUS

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Built-in battery
