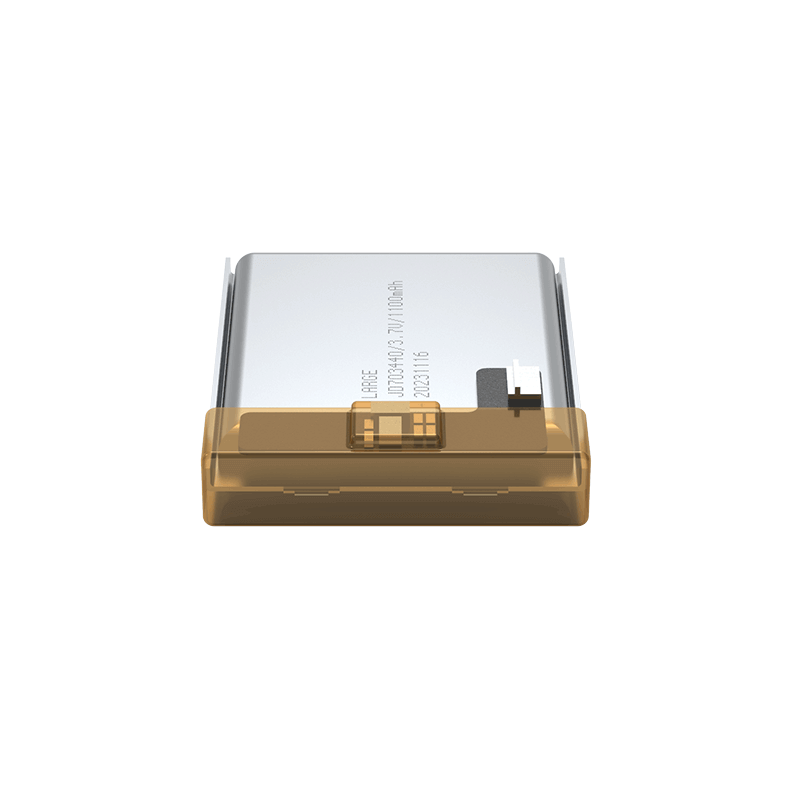

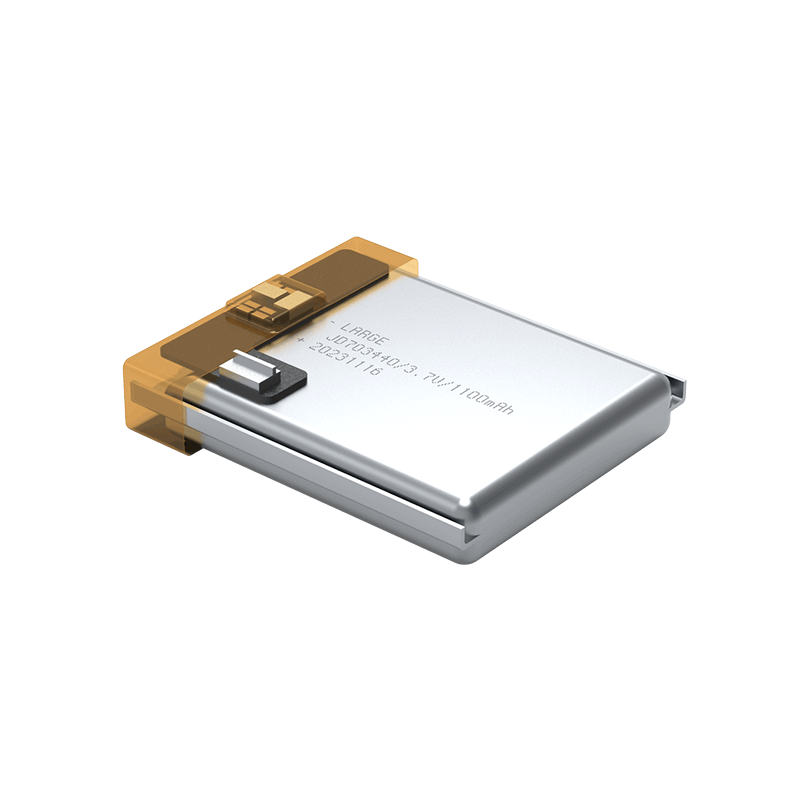

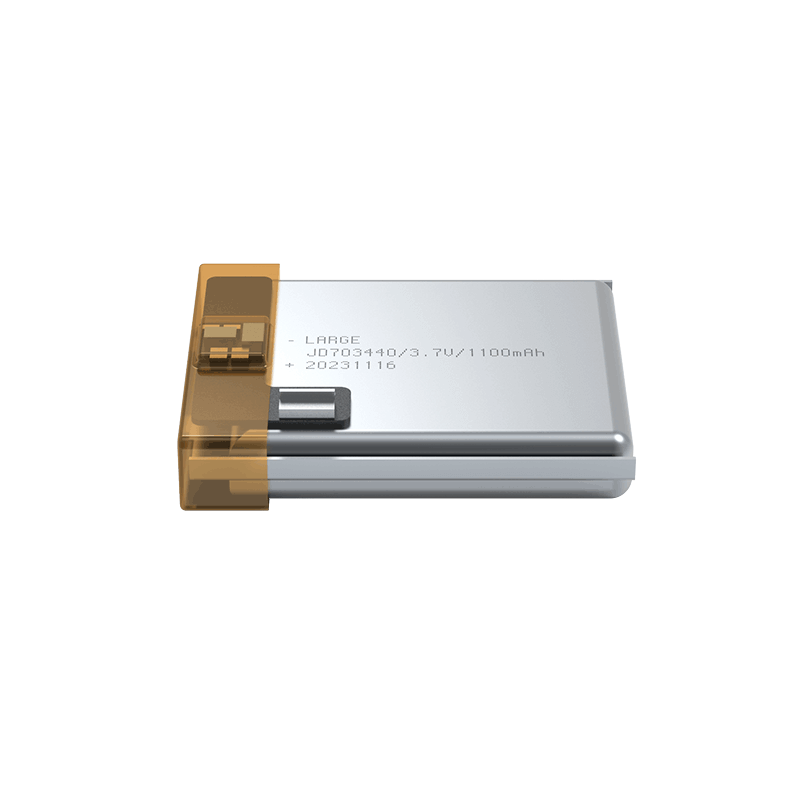

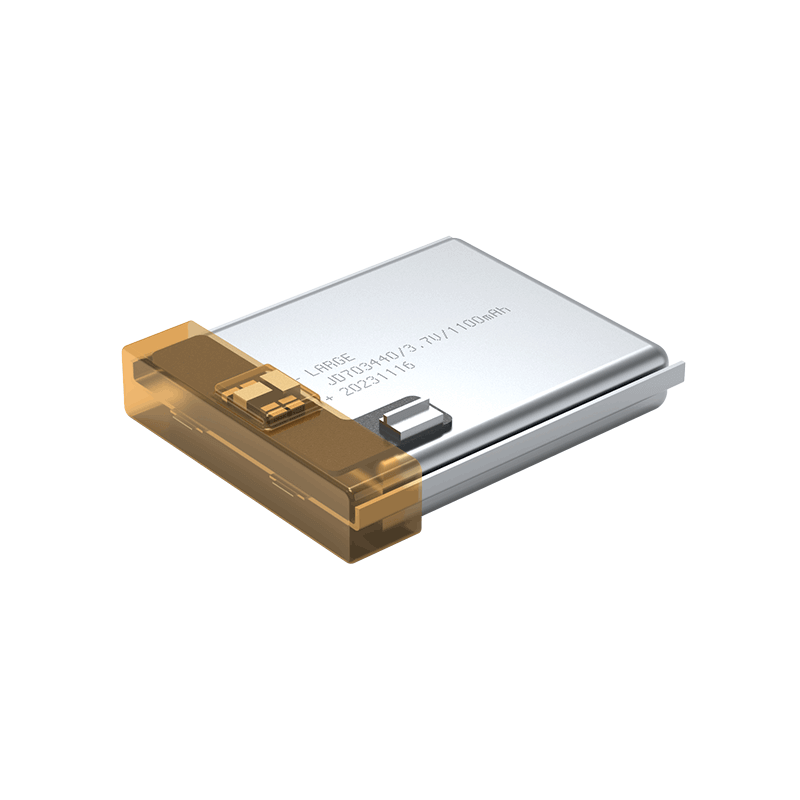

Polymer Li-ion Battery Pack 703440 3.7V 1100mAh

Product number: 36AQ517-35

Battery model: JD703440/3.7V/1100mAh

Battery specification: JD703440/3.7V/1100mAh

Product size: (length) 41mm* (width) 34.5mm* (thickness) 7.0mm

Nominal voltage: 3.7V

Nominal capacity: 1100mAh

Charging voltage: 4.2V

Charging current: 500mA

Discharge current: 800mA

Discharge cut-off voltage: 3.0V

Finished internal resistance: ≤200mΩ

Battery weight: About 25g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35 ℃(less than 3 months); 10~+25℃ (less than 6 months)

Battery packaging: bare battery process

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Equipment battery
