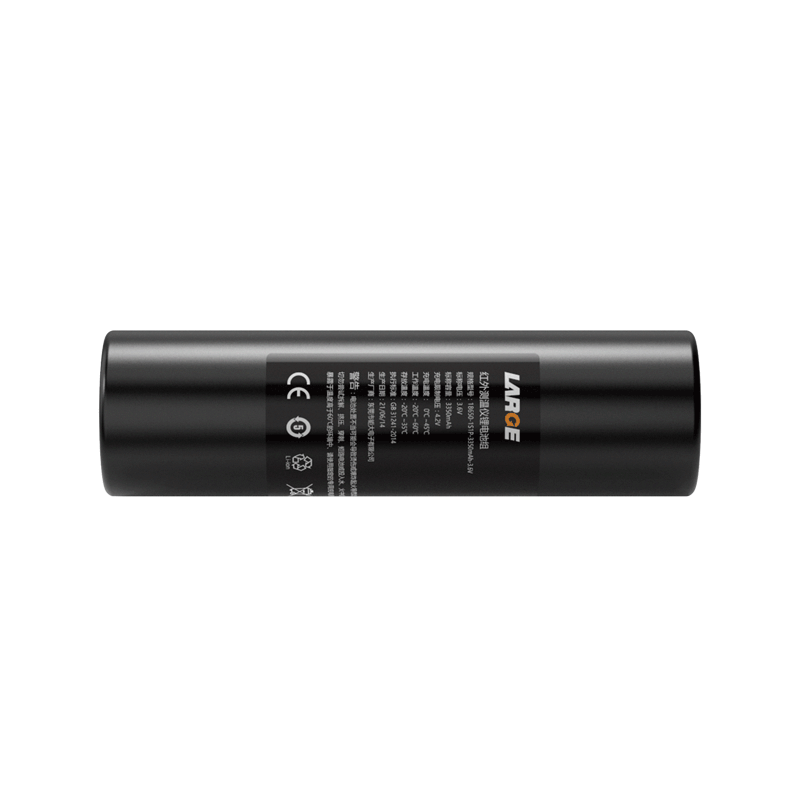

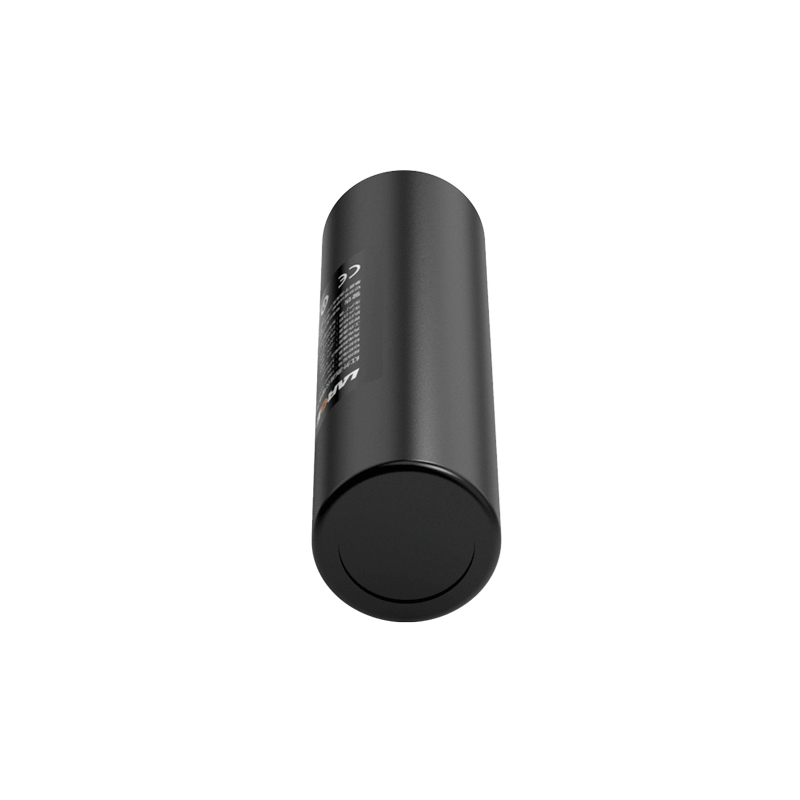

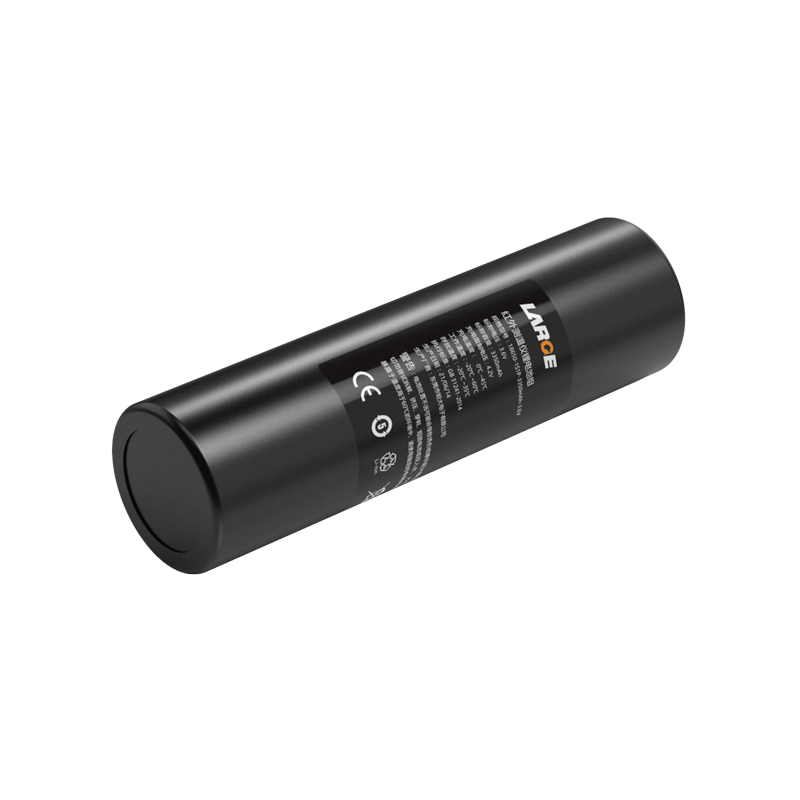

18650 3.6V 3350mAh Samsung Battery for Infrared Thermoscope

Product number: 01DQ0030-08

Cell model: 18650-3350MAH-3.6V

Battery specification: 18650-1S1P-3350MAH-3.6V

Product dimension: 69.5*φ19.5mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 3350mAh

Charging voltage: 4.2V

Charging current: ≤2A

Discharge current: ≤4A

Discharge cut-off voltage: 2.5V

Finished product internal resistance: ≤150mΩ

Battery weight: 60G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: PVC heat shrinkable film

Output: A1251 connector

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: temperature tester, handheld terminal test equipment, medical equipment
