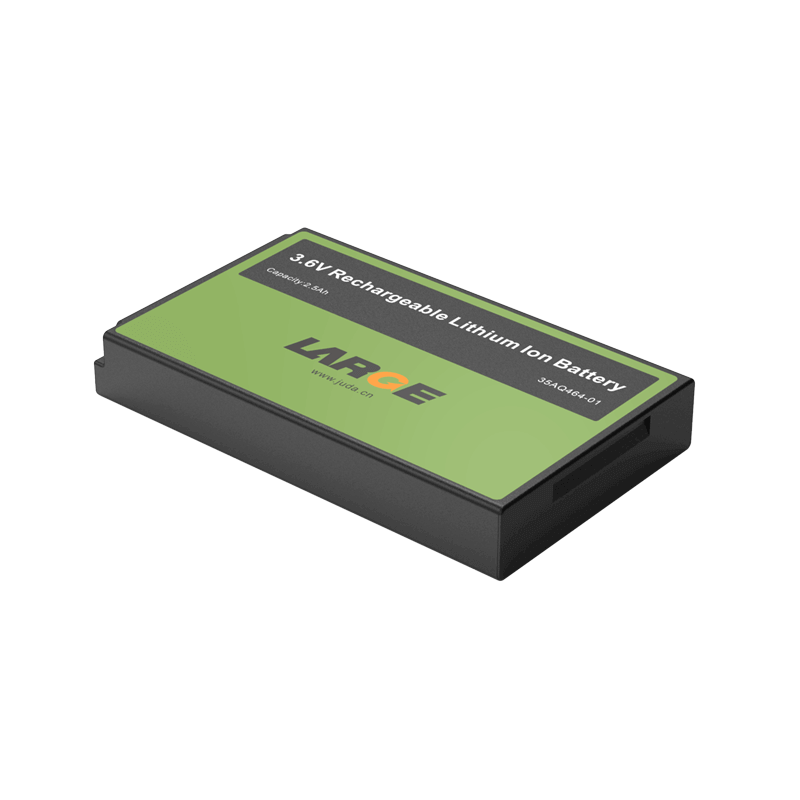

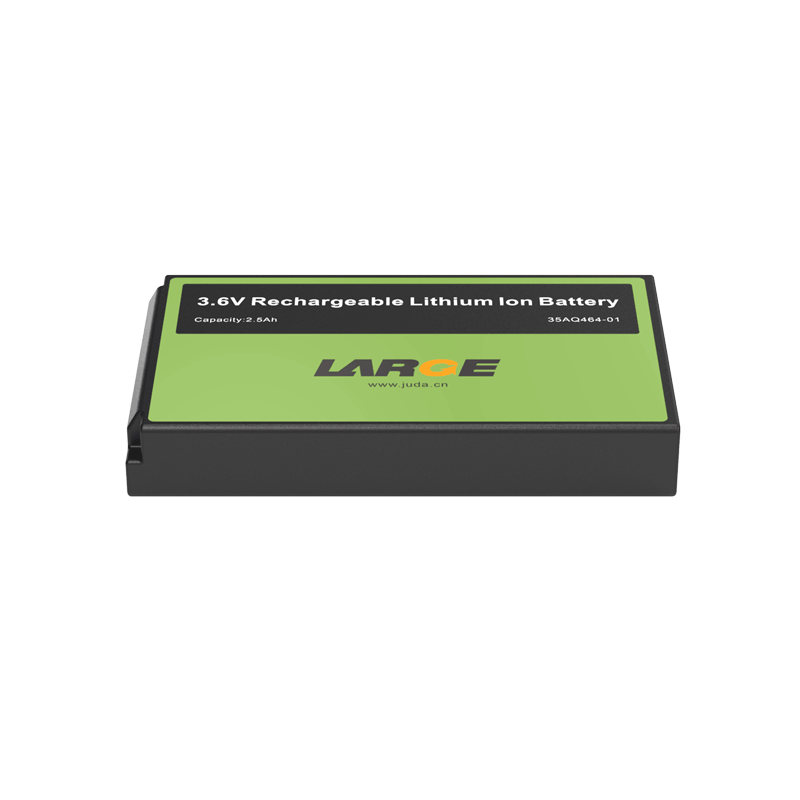

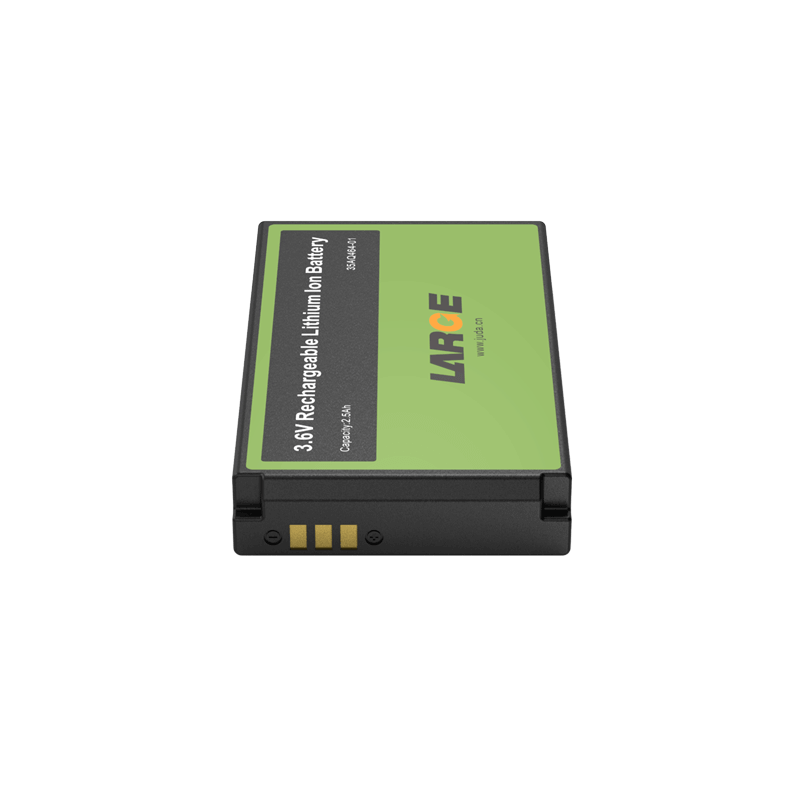

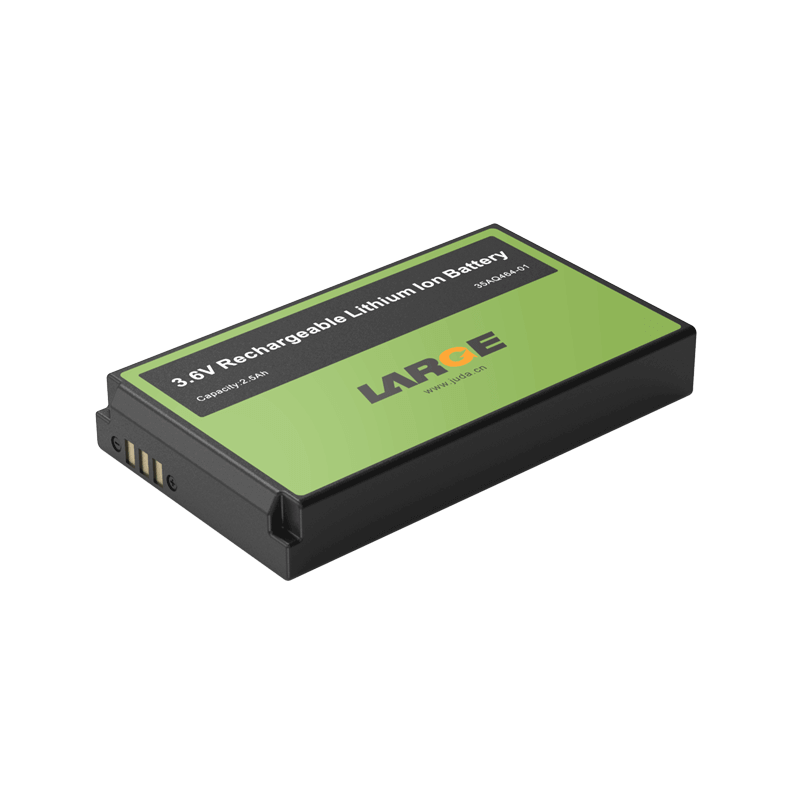

3.6V 2400mAh Explosion-proof Battery for Handheld Terminal

Project number: 35AQ464-01

Cell model: JD973761EX/2400mAh/3.6V

Battery specification: JD973761EX/2400mAh/3.6V

Nominal voltage: 3.6V

Nominal capacity: 2400mAh

Charging voltage: 4.2V charging

Charging current: ≤ 2.5A

Discharge current: 3.0A

Instantaneous discharge current: 5.0A

Discharge cut-off voltage: 3.0V

Product internal resistance: ≤180mΩ

Battery weight: 50G

Product dimension: 10.5*40.2*68.0mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: 0 to 25 ° C

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Handheld terminal
