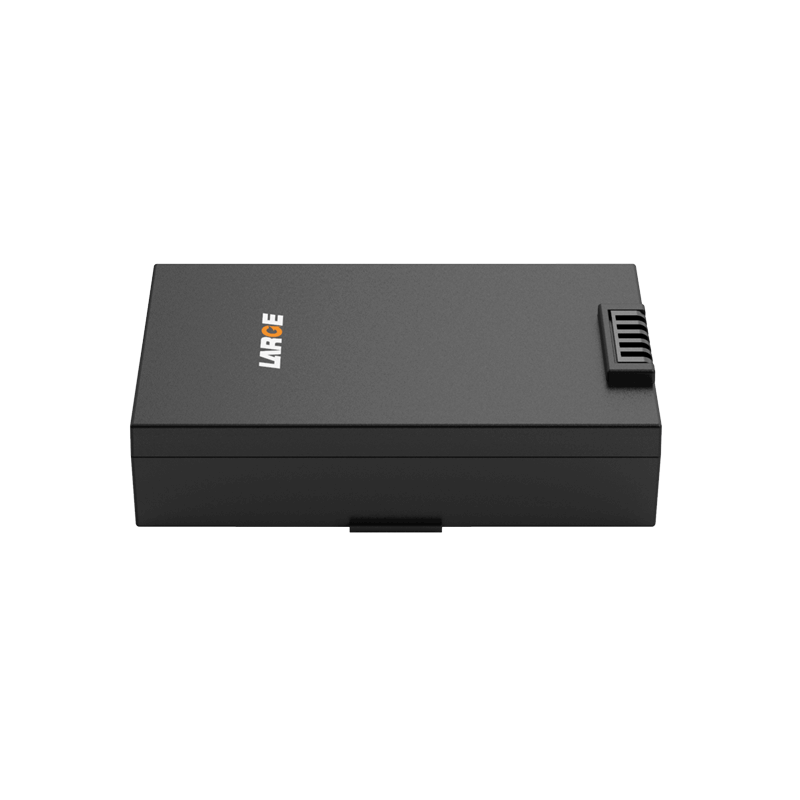

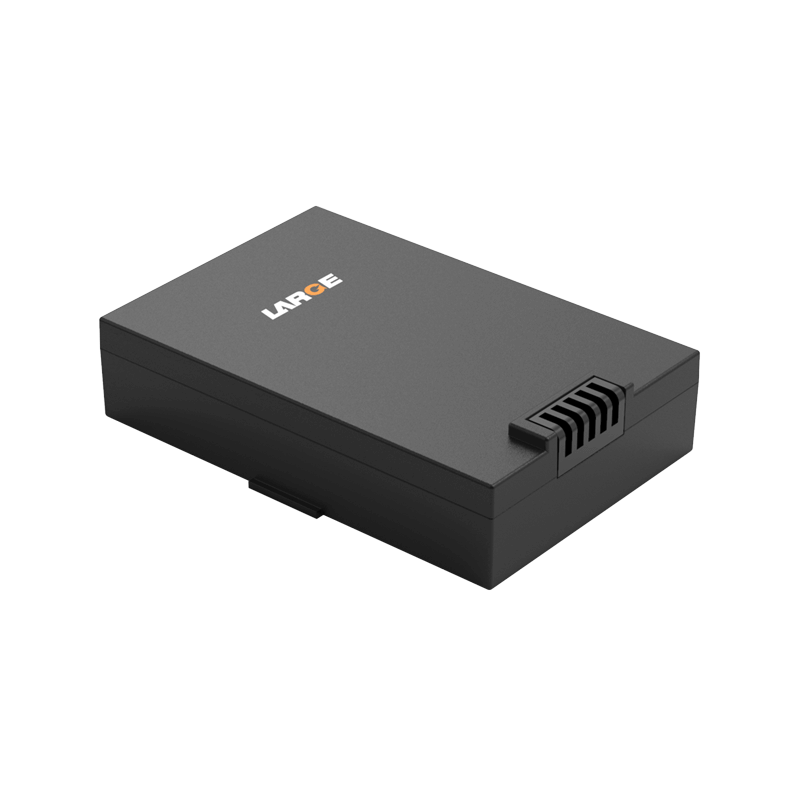

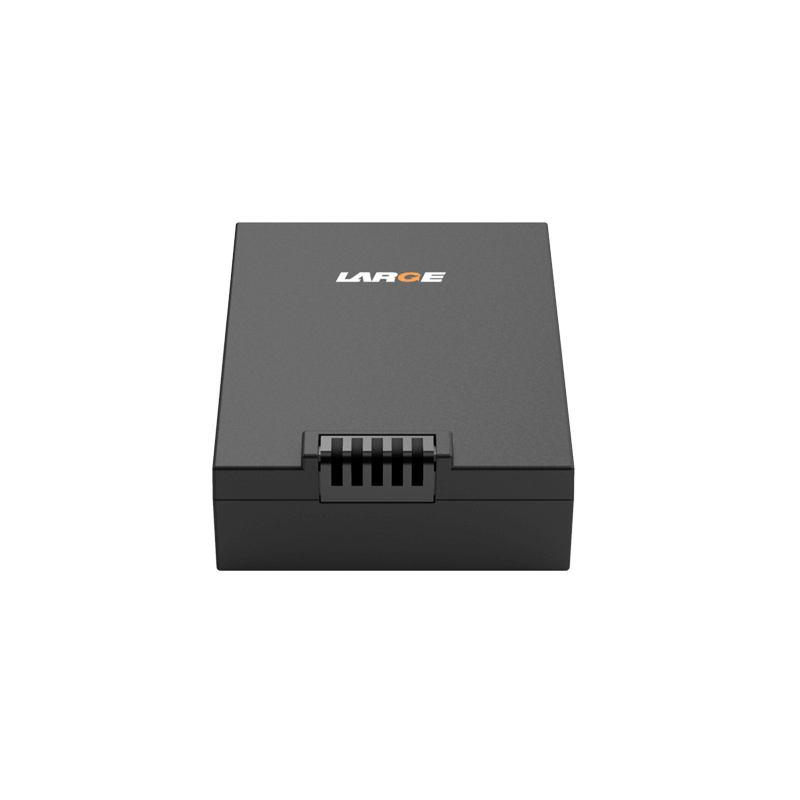

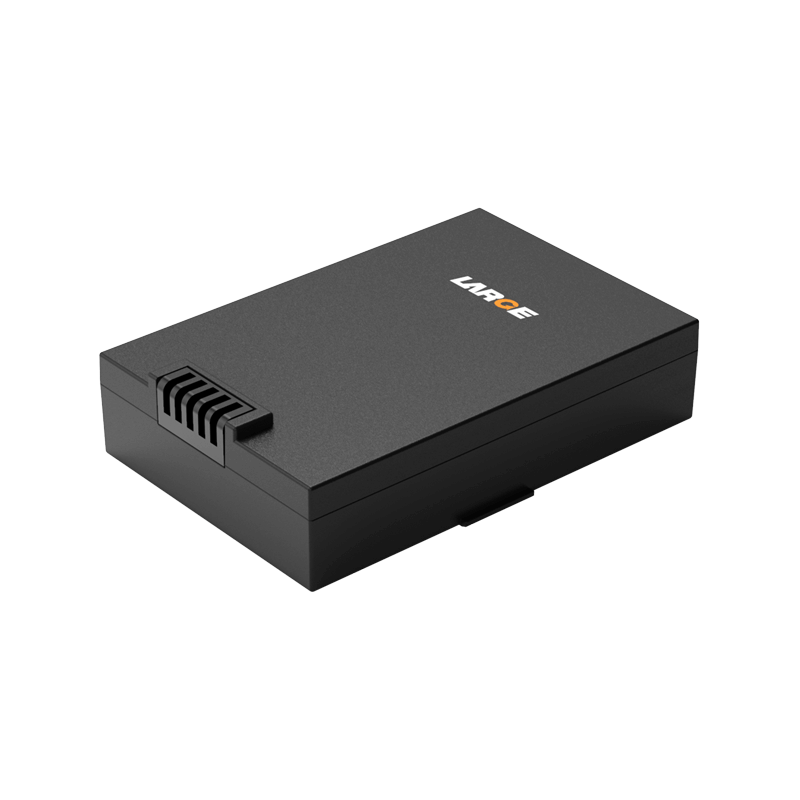

2100mAh 7.4V Lithium Polymer Battery for Industrial Instrument

Product number: 08AQ0125-03

Cell model: 684155/2100mah /3.7V

Specification: 684155/2S1P/2100mAh/7.4V

Product size: 68*45*16mm

Nominal voltage: 7.4V

Nominal capacity: 2100mAh

Finished product internal resistance: ≤260mΩ

Charging voltage: 8.4V

Charging current: ≤1.0A

Discharge current: ≤3.0A

Discharge cut-off voltage: 6.0V

Battery weight: 70G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, etc.

Application: Industrial equipment, industrial equipment

Product Features

1.ABS+PC shell increases battery reliability and firmness.

2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;

3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, high precision monitoring and precise control,to eliminate security risks to the greatest extent.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
