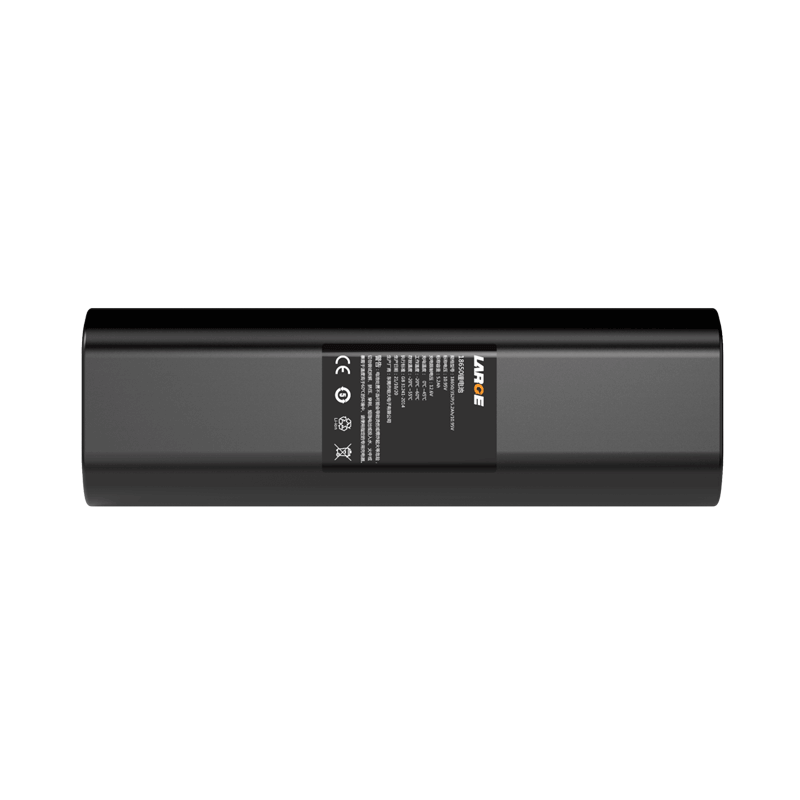

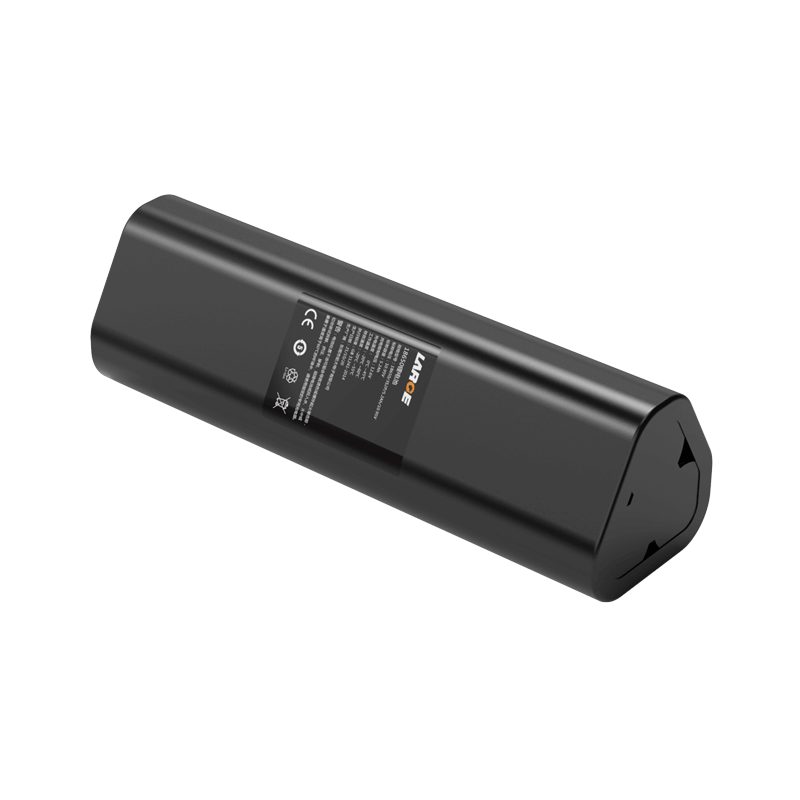

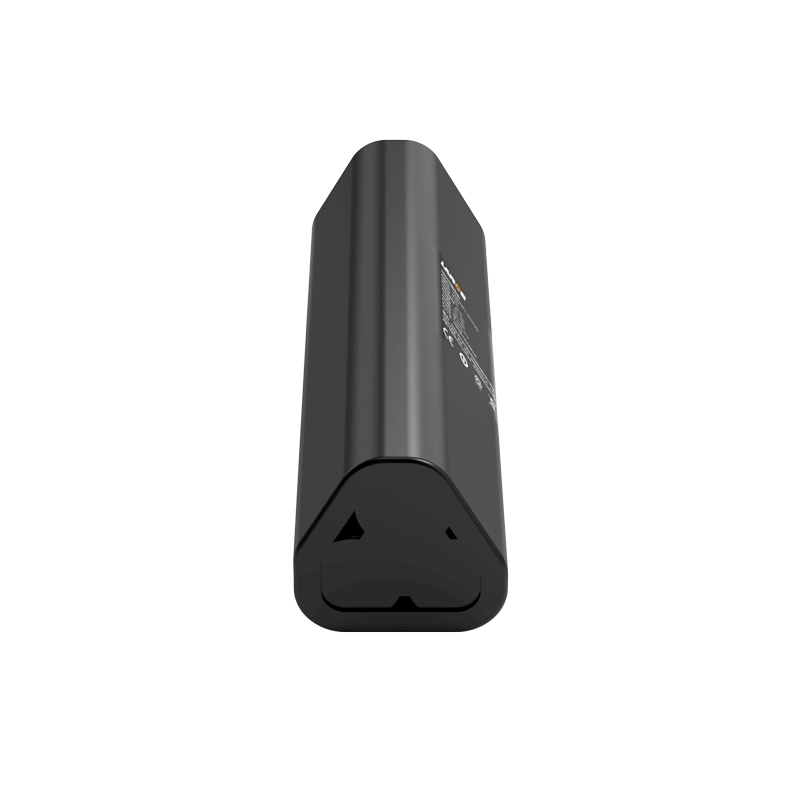

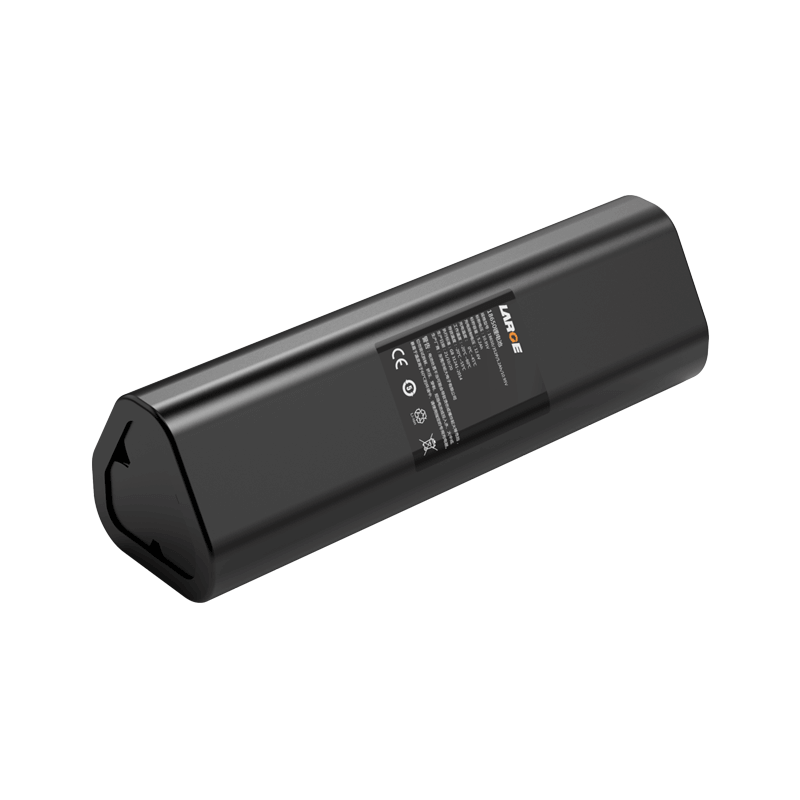

18650 5.2Ah 10.95V Lishen Battery for Outdoor Detection Equipment

Product number: 08DQ543-22

Cell model: 18650/2600mah /3.6V

Specification: 18650/3S2P/5.2Ah/10.95V

Product size: 132.5*39*38(mm)

Nominal voltage: 10.95V

Nominal capacity: 5.2Ah

Charging voltage: 12.6V

Charging current: ≤ 2.6A

Discharge current: ≤7.8A

Discharge cut-off voltage: 8.25V

Product internal resistance: ≤180mΩ

Battery weight: 400G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20~+55℃ (less than 1 month) -20~ 40 ℃(less than 3 months); -20~+20℃ (less than 12 months)

Battery package: PVC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Outdoor detection equipment

Product Features

1.PVC process

2.SMBUS communication protocol

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

5.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
