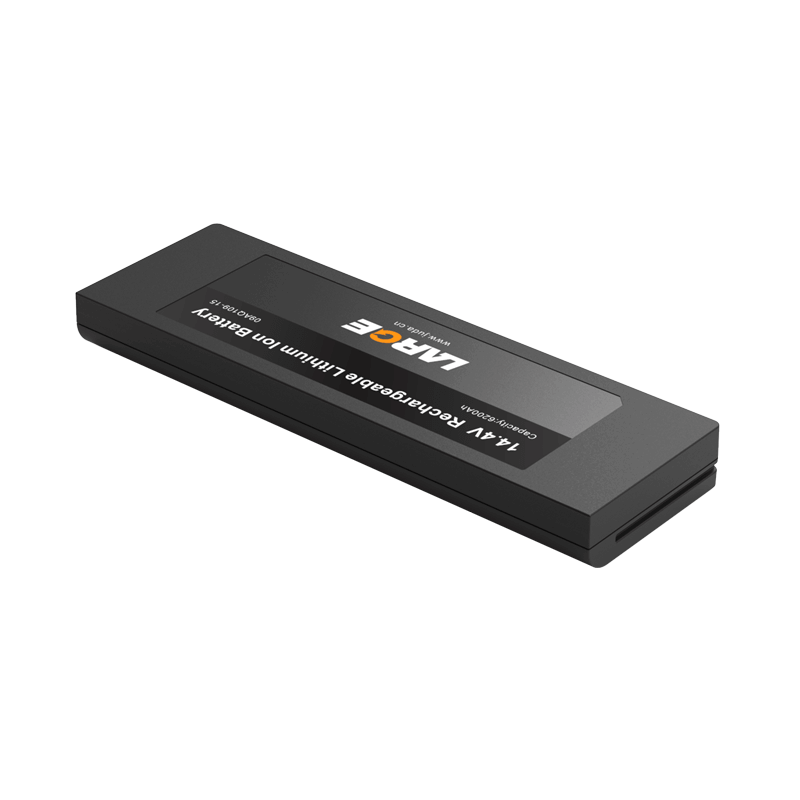

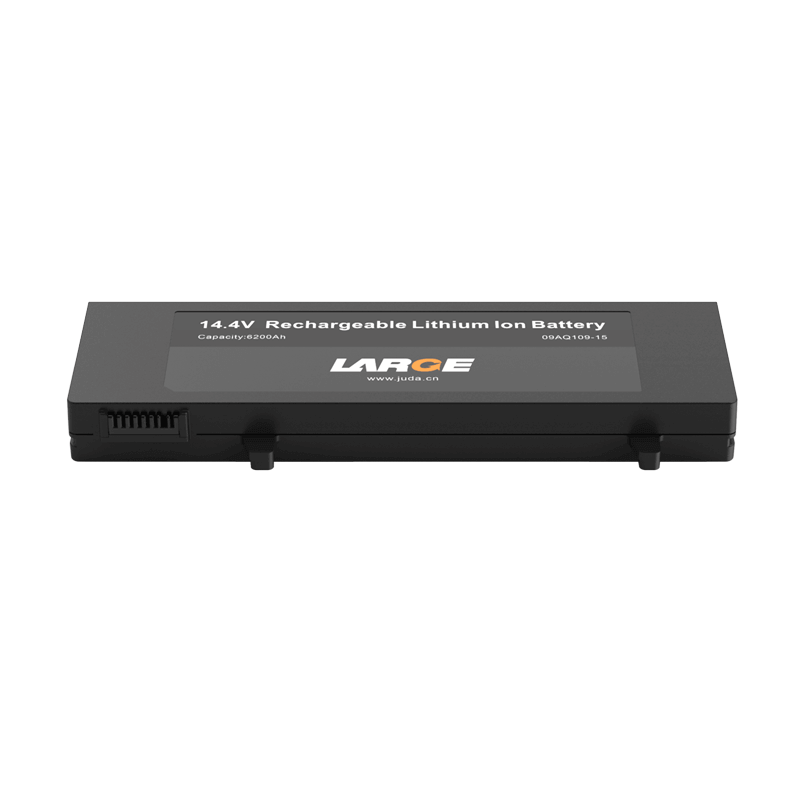

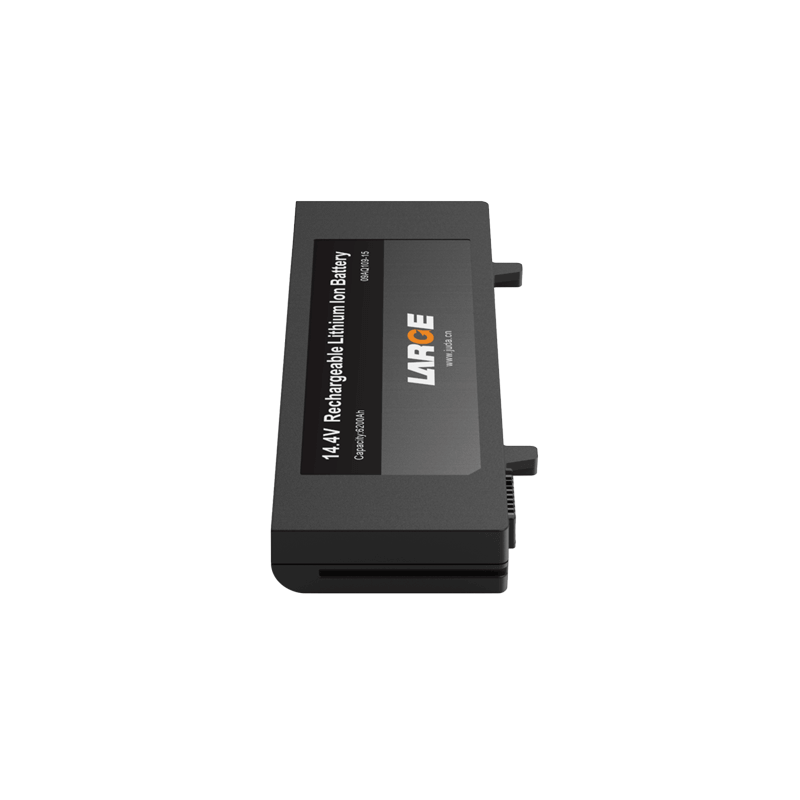

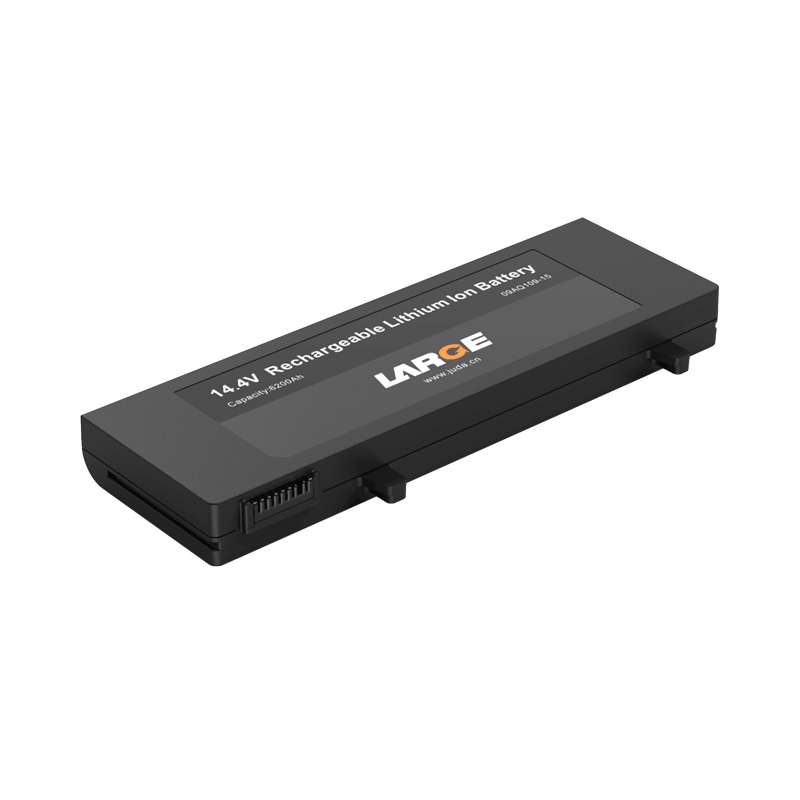

18650 14.4V 6200mAh Lithium-ion Battery for B Supersonic Diagnostic Set

Project number: 09AQ109-15

Batteries model: NCR18650GA6W / 3350 mah / 3.6 V

Specification: 18650-4S2P/6200mAh/14.4V (Smart + Case)

Nominal voltage: 14.4V

Nominal capacity: 6200mAh

Charging voltage: 16.8V

Charging current: ≤3.10A

Discharge current: 6.20A

Instantaneous discharge current: 8.0A

Discharge cut-off voltage: 12.0V

Internal resistance: ≤250mΩ

Battery weight: 410G

Product size: 21.5*77.69*208mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ° C to 23 ° C

Battery case: /

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: B ultrasound machine
