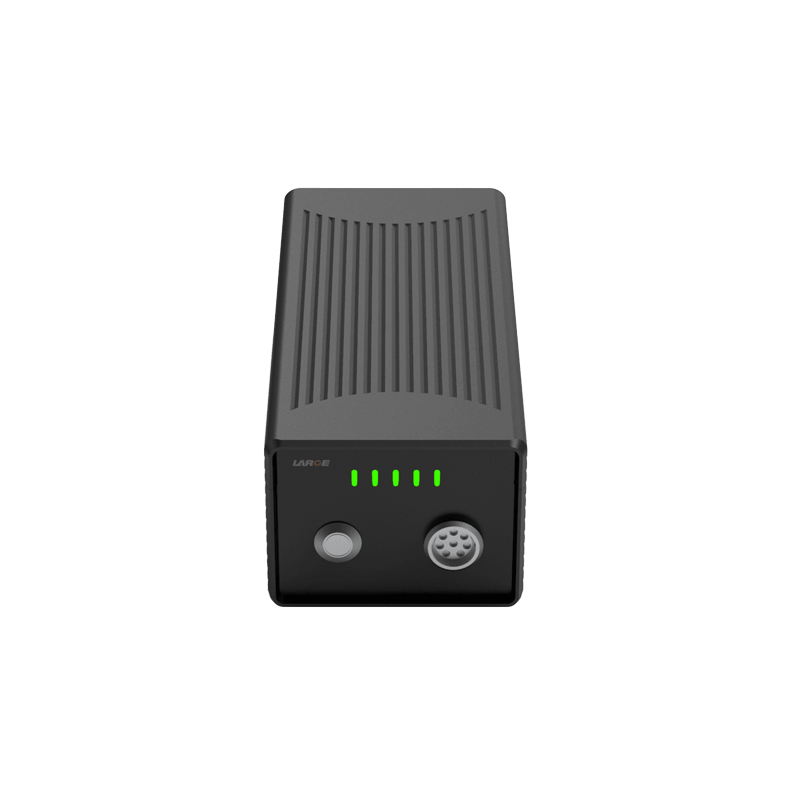

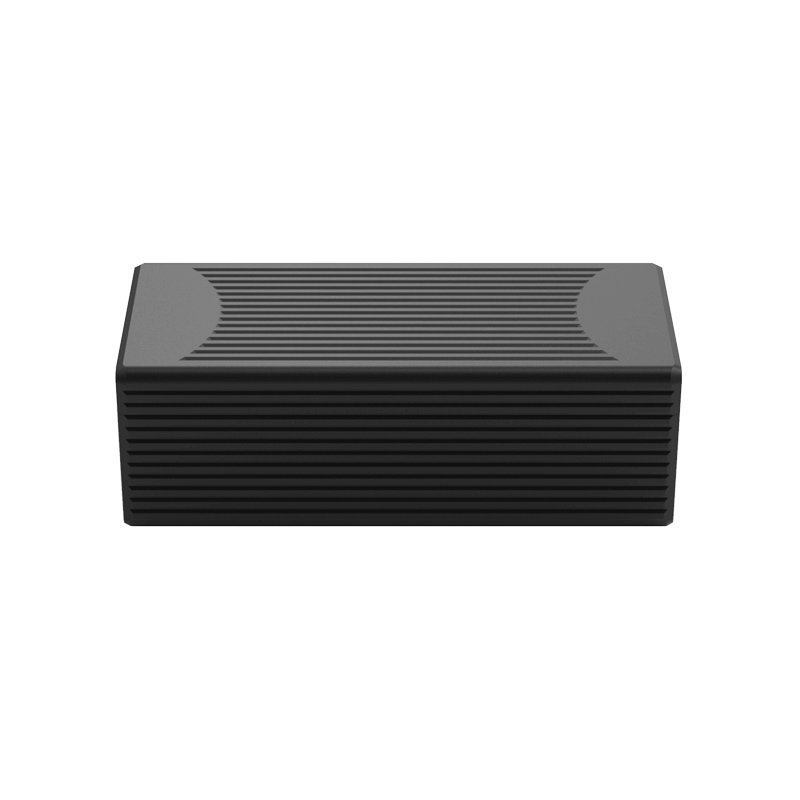

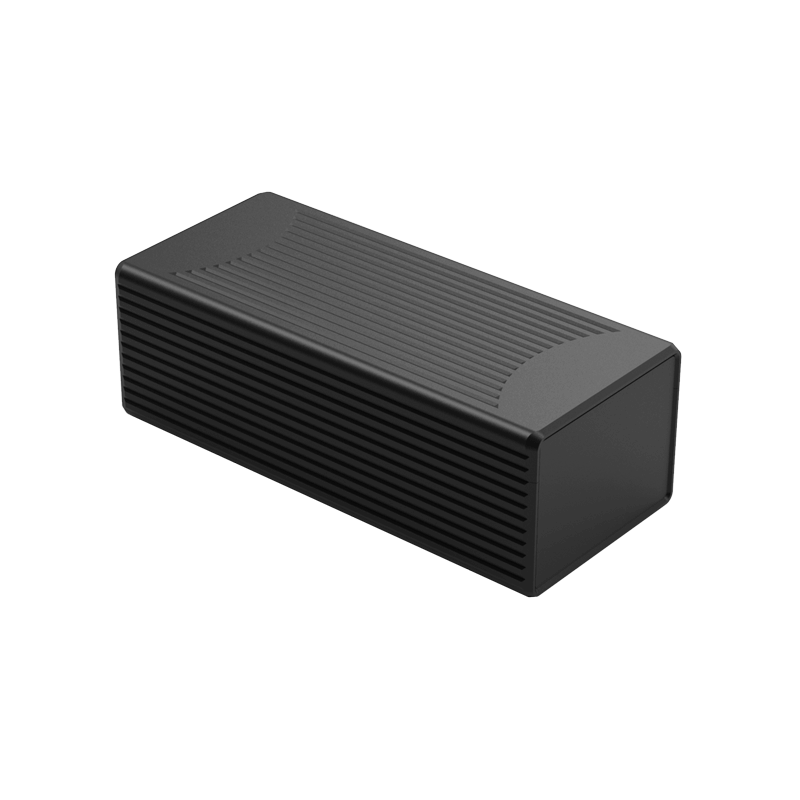

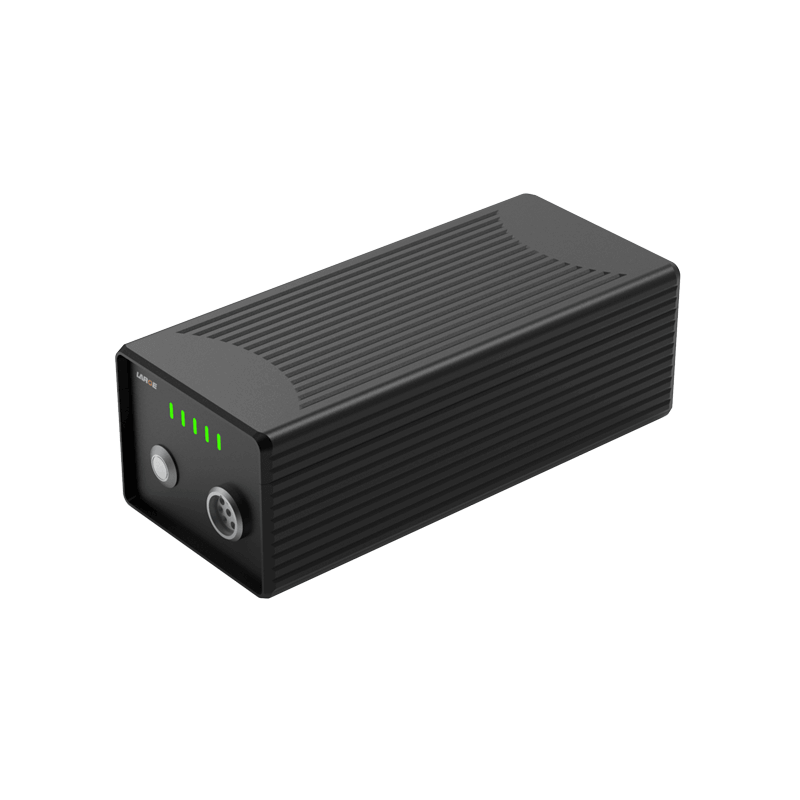

18650 21.6V 6.4Ah BAK Battery for Hospital Bed Controller

Product number: 37DZ093-01

Cell model: 18650/3350mah /3.60V

Specification: 18650-6S2P-6.4 AH-21.6V

Product size: 172mm*76mm*57.5mm

Nominal voltage: 21.6V

Nominal capacity: 6.4Ah

Charging voltage: 25.2V

Charging current: 5A

Discharge current: 5A

Discharge cut-off voltage: 19V

Product internal resistance: ≤200mΩ

Battery weight: 1.5Kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55 ℃

Storage temperature: -20~+50℃ (less than 1 month) -20~ 40 ℃(less than 3 months); -20~+20℃ (less than 12 months)

Battery package: black plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Hospital bed controller

Product Features

1.Black aluminum shell package is simple, reliable and easy to install.

2.Modbus Communication protocol

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported well-known protection chips, featuring high stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
