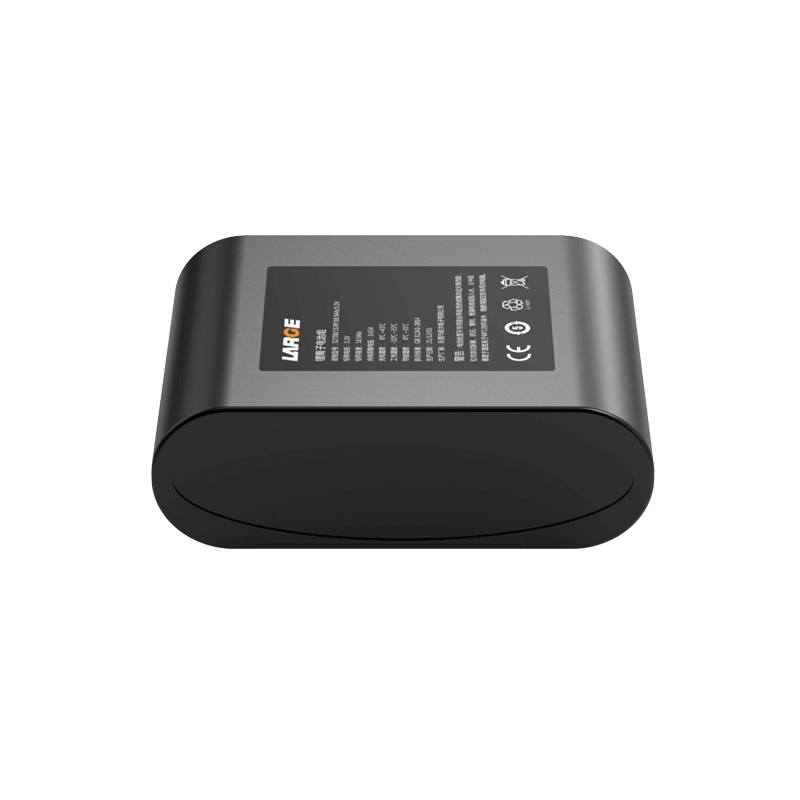

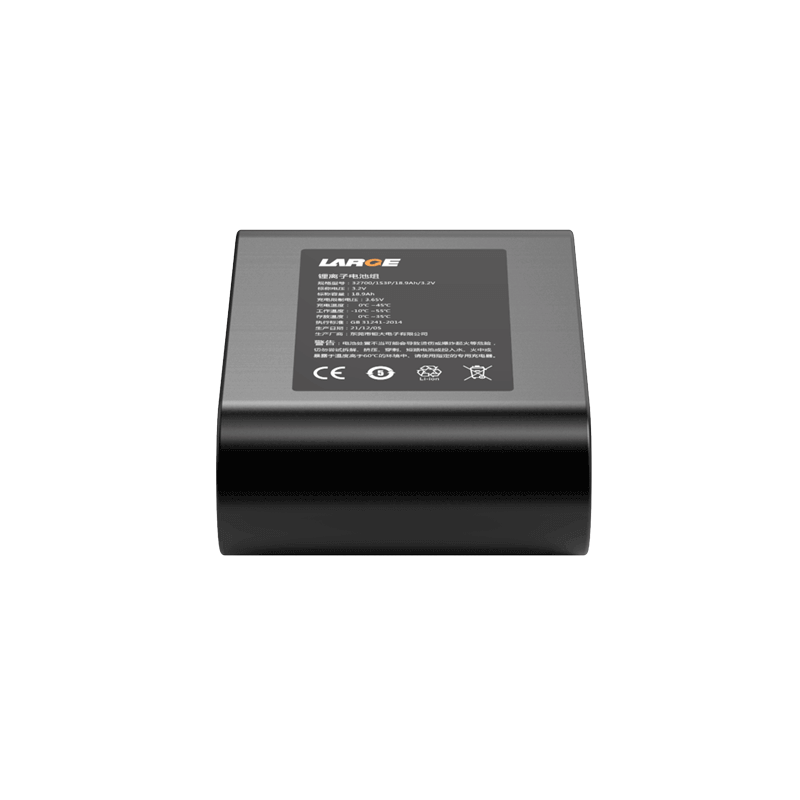

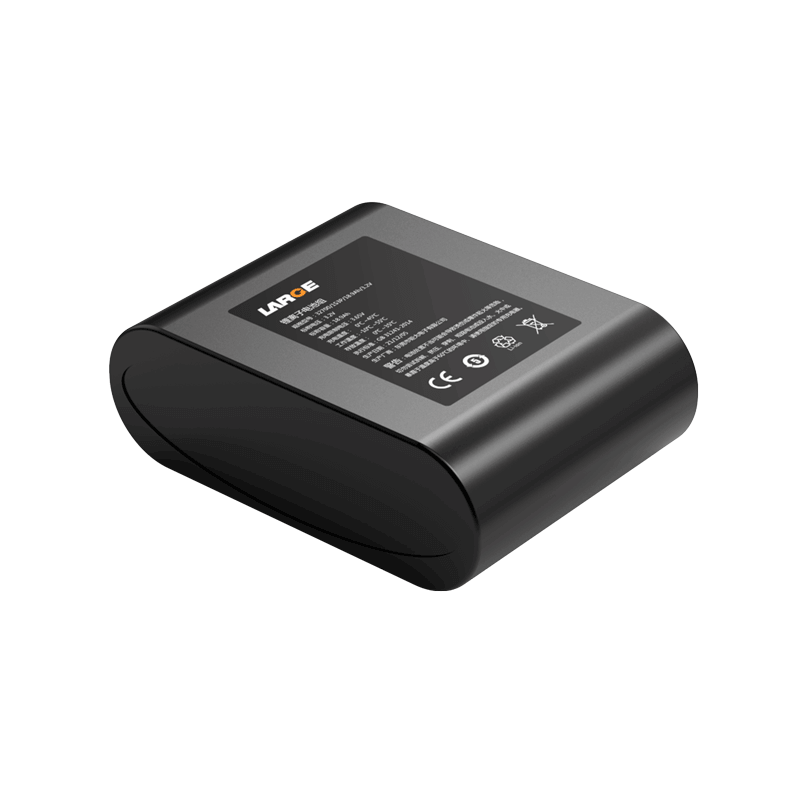

32700 3.2V 18.9Ah LiFePo4 Battery for Building Alarm

Product number: 08DQ0048-01

Cell model: 32700/6300mah /3.2V

Specification: 32700/1S3P/18.9Ah/3.2V

Product size: 98.5mm*72mm*33mm

Nominal voltage: 3.2V

Nominal capacity: 18.9Ah

Charging voltage: 3.65V

Charging current: 4A

Discharge current: 5A

Discharge cut-off voltage: 2.0V

Product internal resistance: ≤180mΩ

Battery weight: 480 GB

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 55 ℃

Storage temperature: 0 to +35 ° C (less than 1 month) 0 to 30 ° C (less than 3 months) 0~+25℃ (less than 6 months)

Battery case: Bare battery + protection board insulation

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Building alarm

Product Features

1. bare battery and a insulation protective board are simple, reliable and easy to install.

2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
