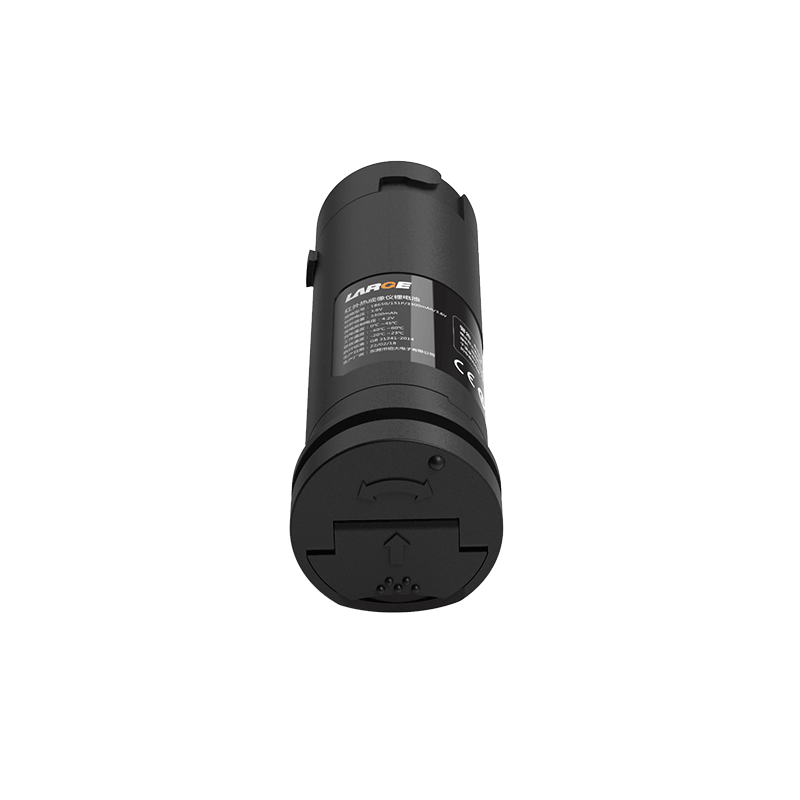

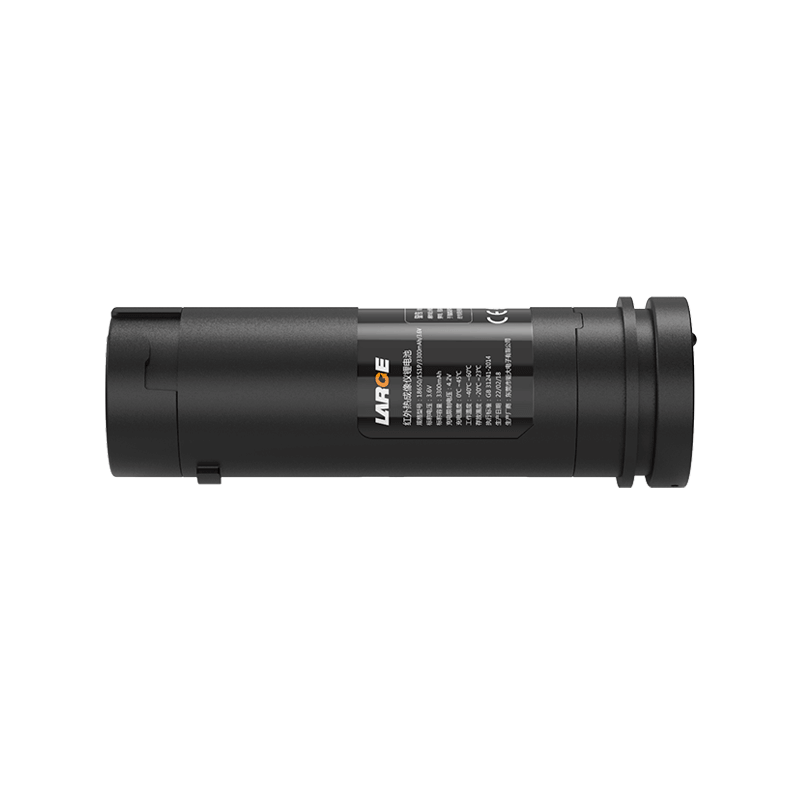

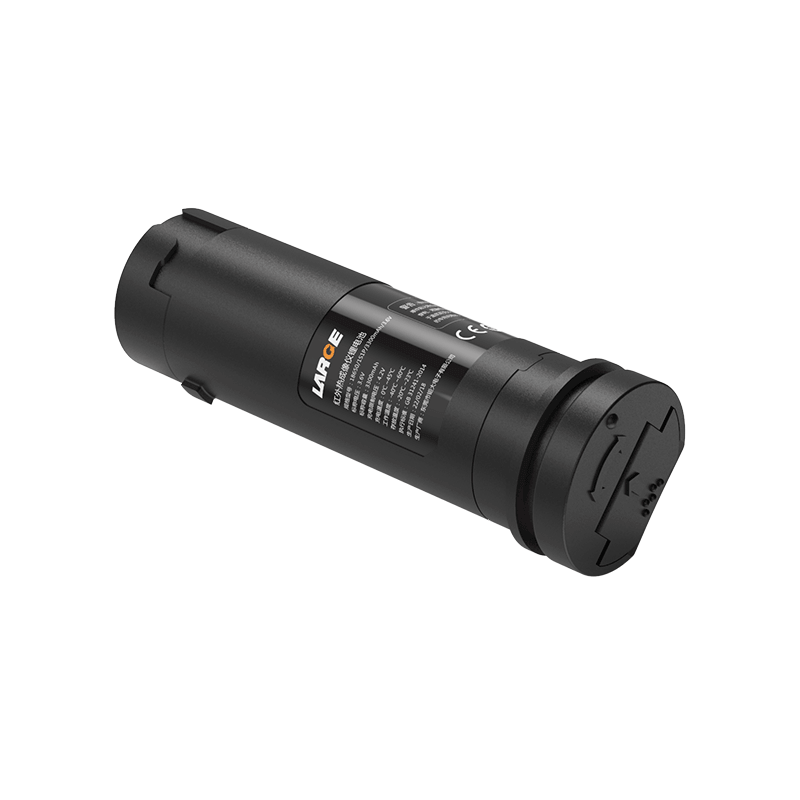

18650 3300mAh 3.6V Lithium-ion Battery for Infrared Thermal Imager

Product number: 36AQ517-01T

Cell model: 18650-3350MAH-3.6V

Specification: 18650/1S1P/3300mAh/3.6V

Product size: 74*21.7*24.3mm

Nominal voltage: 3.6V

Nominal capacity: 3300mAh

Product internal resistance: ≤180mΩ

Charging voltage: 4.2V

Charging current: ≤1.5A

Discharge current: ≤2A

Discharge cut-off voltage: 2.8V

Battery weight: 80G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: engineering plastic ABS+PC

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Infrared thermal imaging equipment, portable infrared equipment

Product Features

1.ABS+PC shell increases battery reliability and firmness.

2.Hardware output: Use gold - plated shrapnel output to increase electrical conductivity reliability.

3.Battery protection management: Adopt special lithium-ion battery protection chip with high precision monitoring and precise control, eliminating safety risks to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
