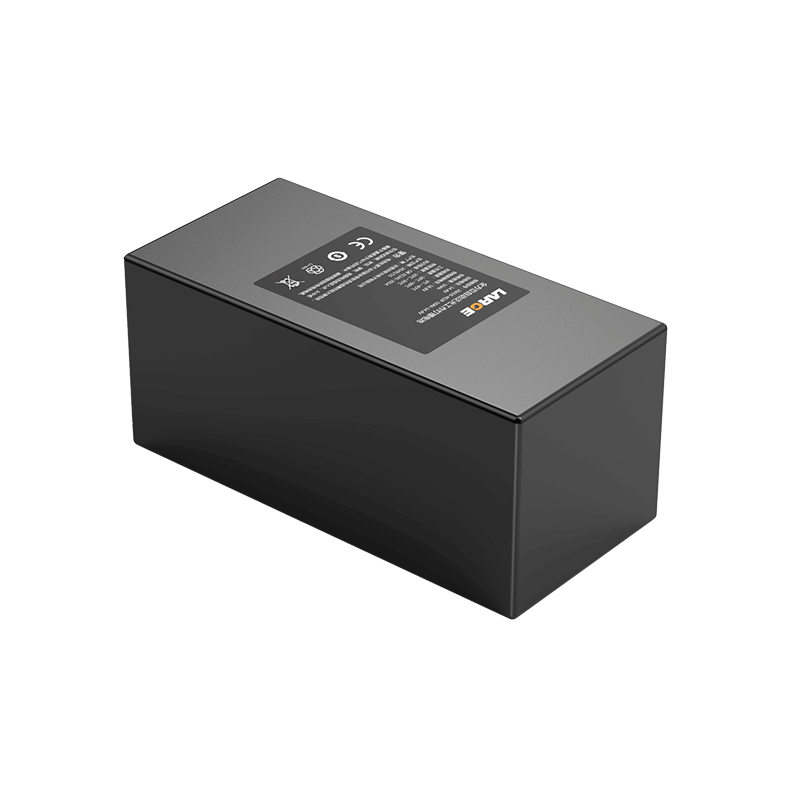

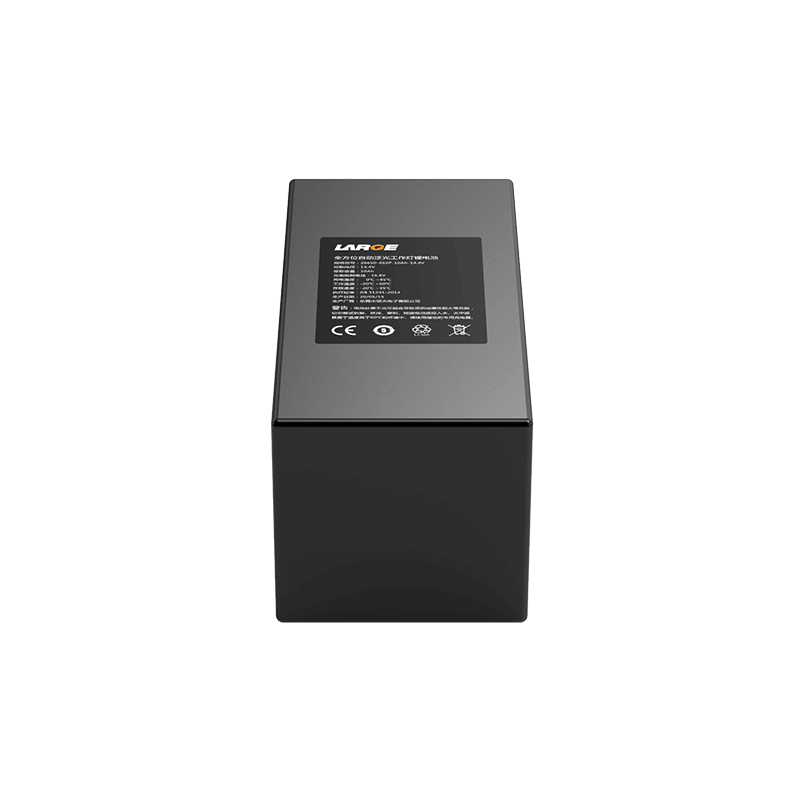

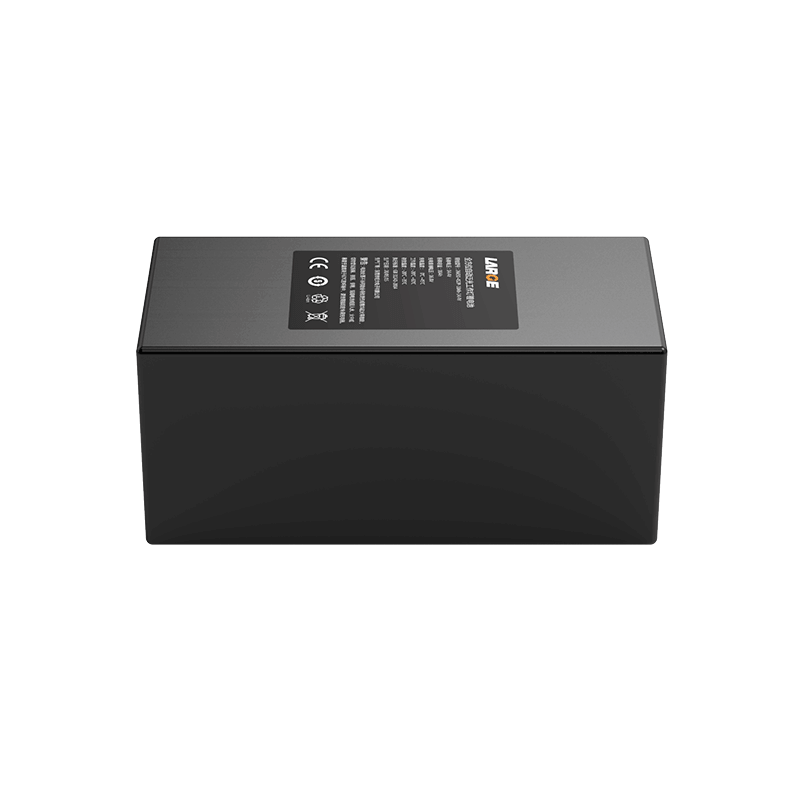

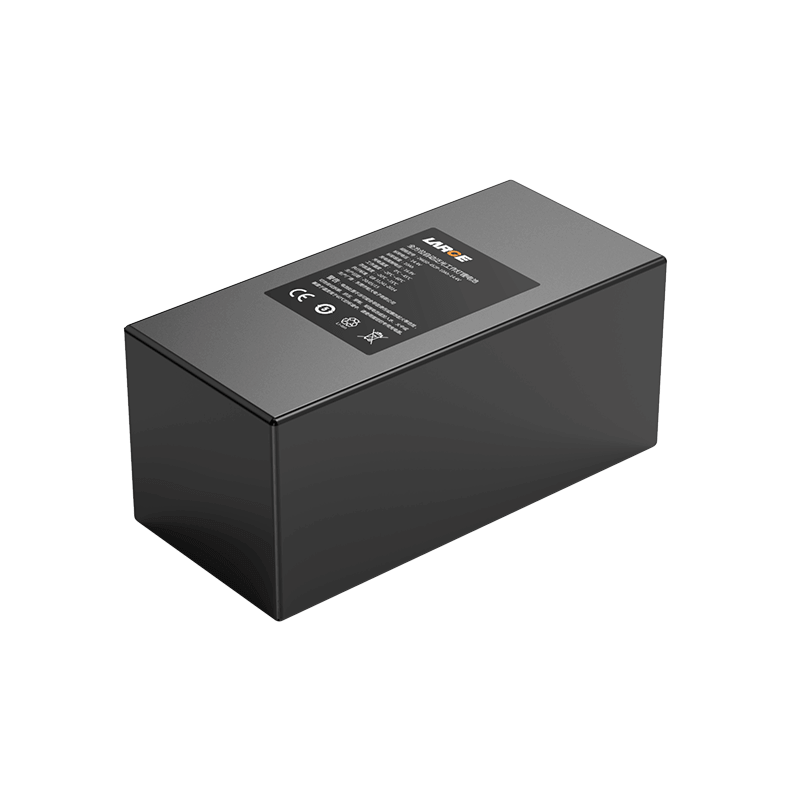

26650 14.4V 10Ah Lithium-ion Battery for Omnidirectional automatic floodlight

Product number: 04BQ118-33

Cell model: 26650-5000 MAH-3.6V

Battery specification: 26650-4S2P-10AH-14.4V

Product size: 148*70*60mm

Nominal voltage: 14.4V

Nominal capacity: 10Ah

Finished internal resistance: ≤ 300mΩ

Charging voltage: 16.8V

Charging current: ≤4A

Discharge current: ≤25A

Discharge cut-off voltage: 11.2V

Battery weight: 520g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery package: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Application: omni-directional automatic floodlight, portable lighting equipment

Product Features

1.Blue PVC heat shrinkable film package is simple and reliable, and is easy to install;

2.The battery pack is assembled by special cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good vibration and impact resistance.

3.Battery protection management: Use special lithium battery protection chip, with good stability, high precision monitoring, precise control, temperature protection and other functions, so as to eliminate the safety hazards;

4.The battery pack has good safety, high discharge rate, and the discharge power reaches more than 90%.

5.The battery pack has long cycle life,which in line with the value of low carbon, energy saving and environmental protection;
