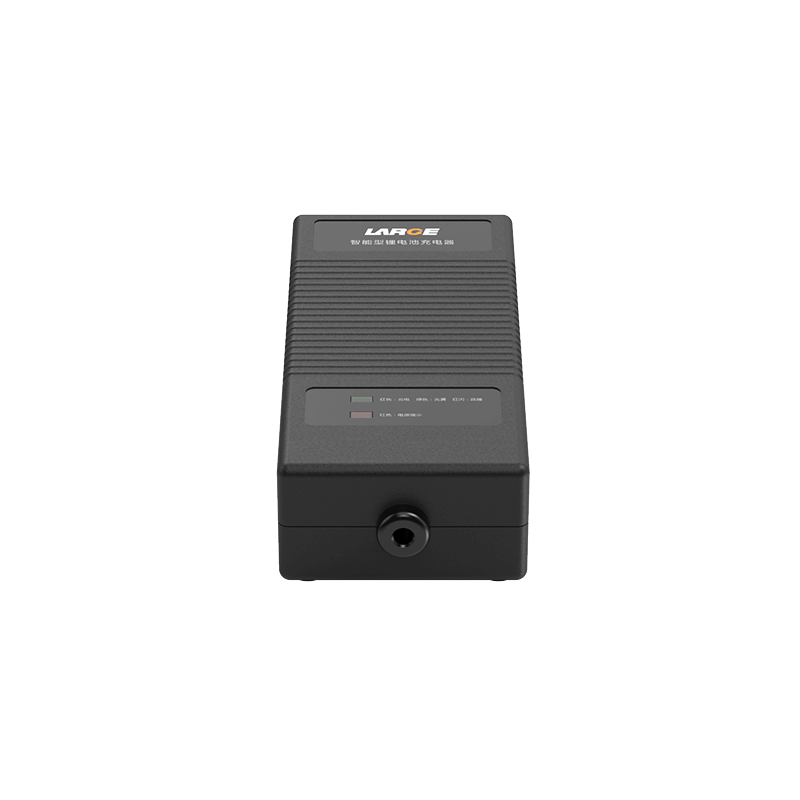

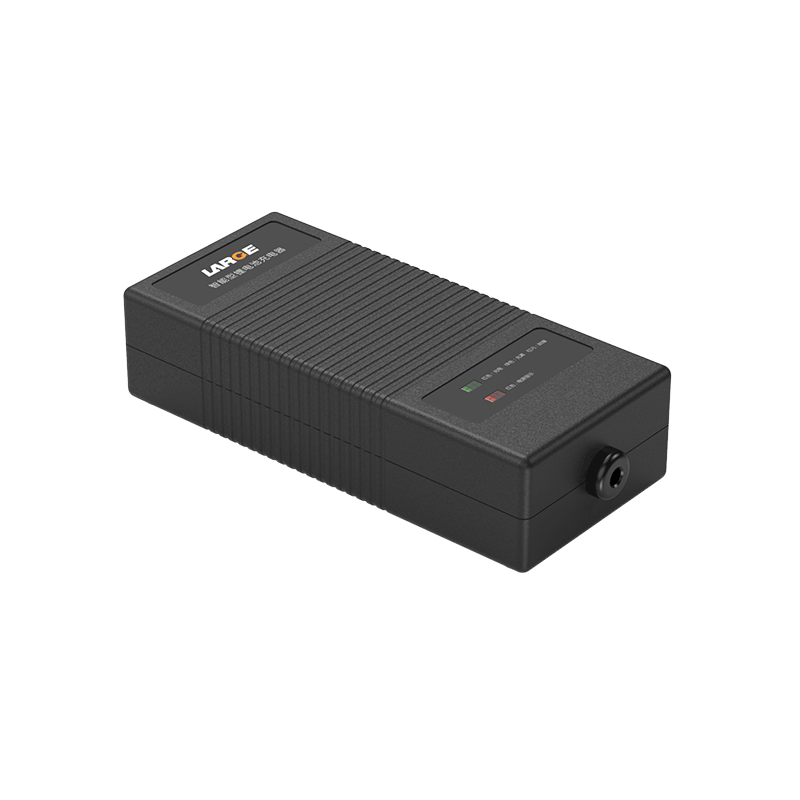

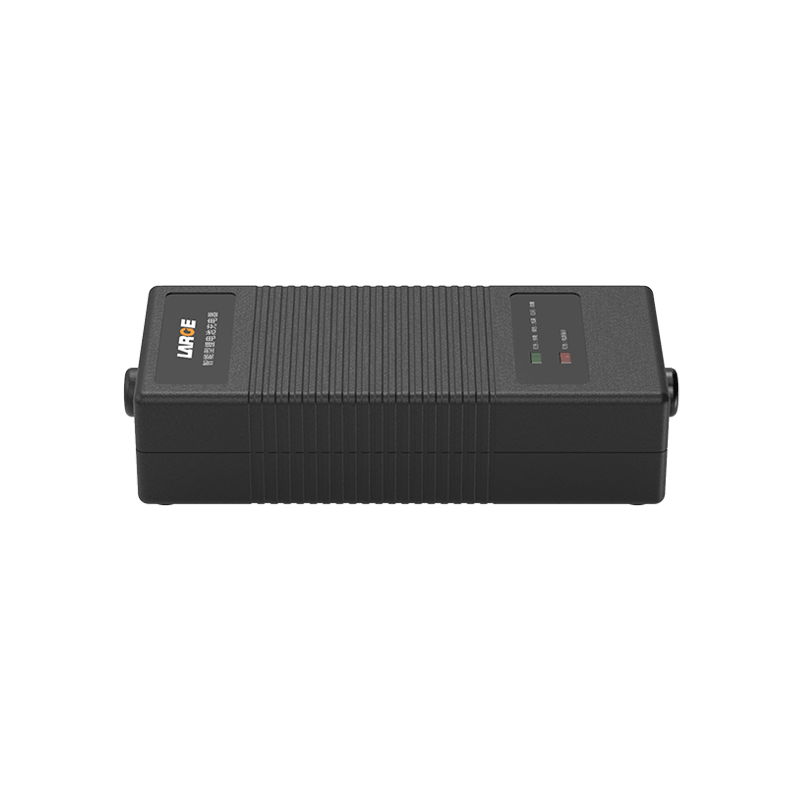

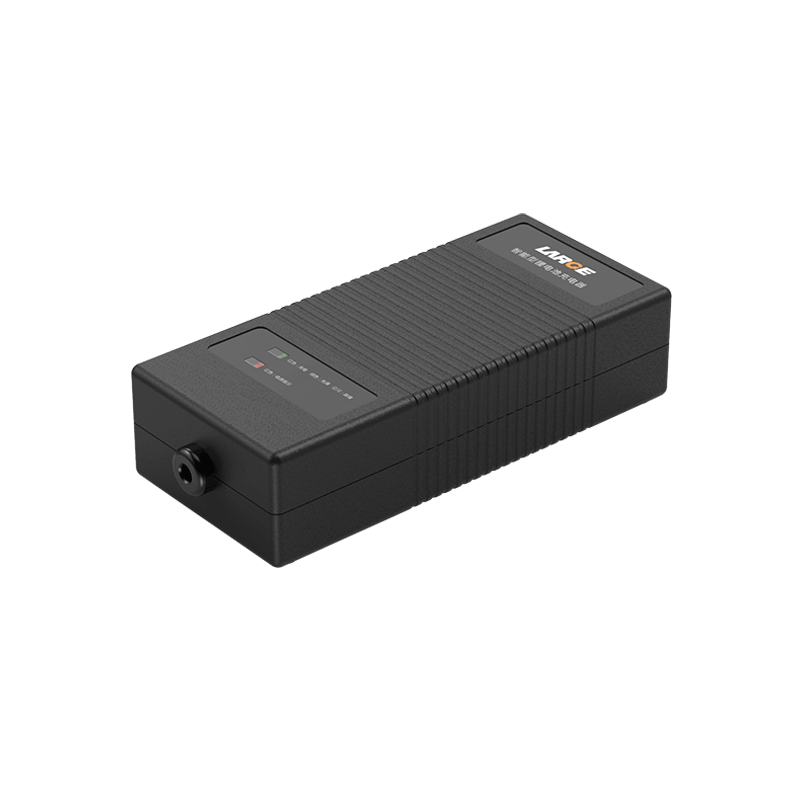

DC-DC 28.0V 3.0A Charge Management Power Module

Product number: 08DQ0058-02C

Applicable charging specifications: Lithium iron 26650-8S structure

Product size: 145mm*65mm*38mm

Maximum charging voltage and range: 27.8V-28.2V

Maximum charging voltage and range: 3.0±0.3A

Charging current: 300±150mA

Input undervoltage protection: ≤18.5±1.5V

Ambient temperature and humidity: -20~+50℃& 0~90%RH Non-condensing

Storage temperature and humidity: -20~+85℃&0~95%RH

Battery package: plastic case

Protection function: short circuit protection, over current protection, over temperature protection, etc

Application: equipment battery charging

Product Features

1.Plastic case is simple and reliable, and is easy to install.

2.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;

3.Charge management: Use imported well-known brand protection chip with nice stability, high precision monitoring, precise control, to minimize the potential security risks.
