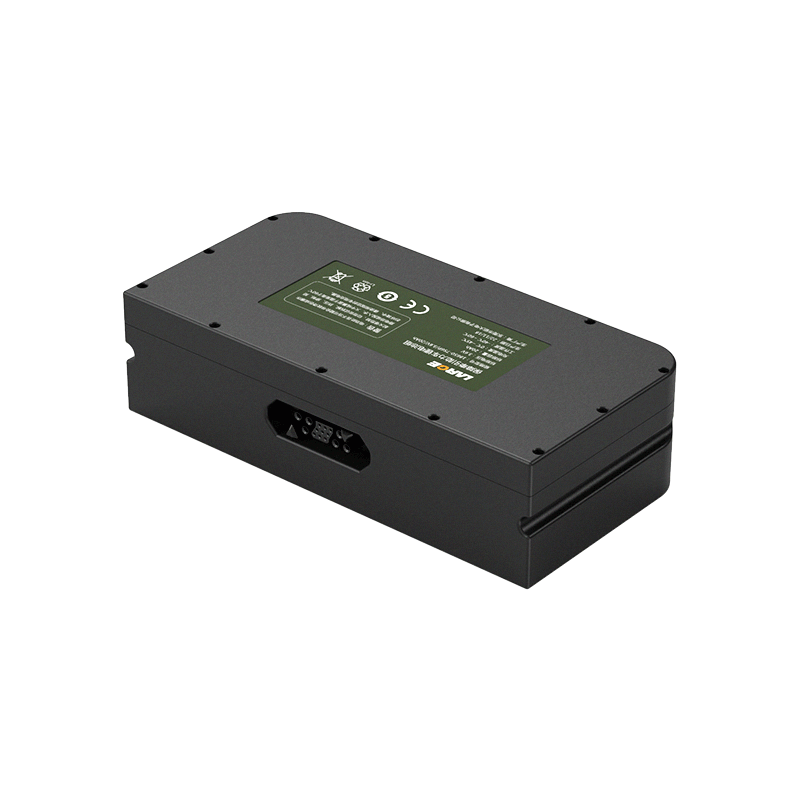

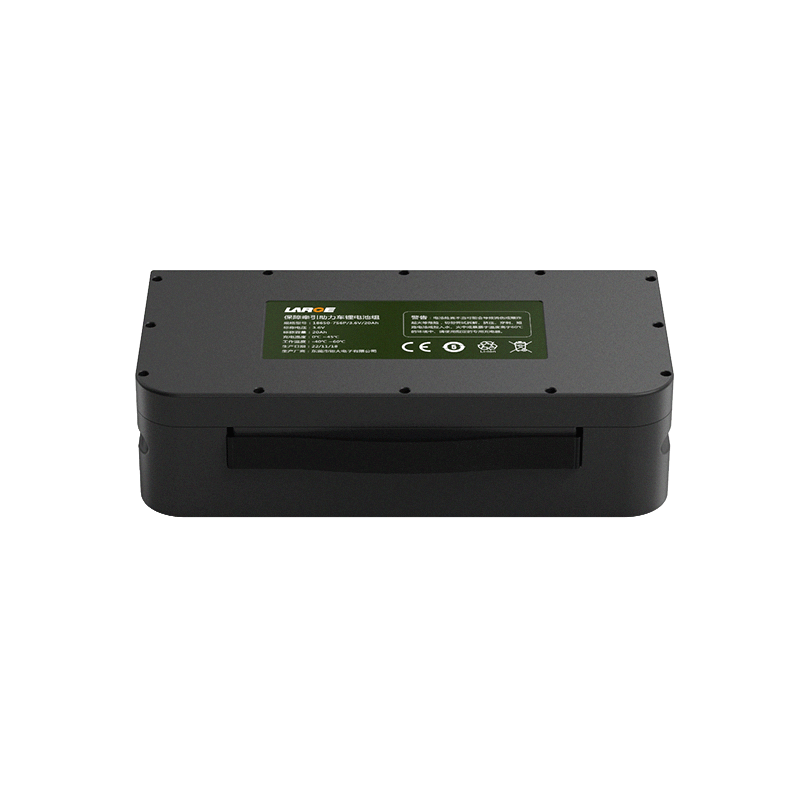

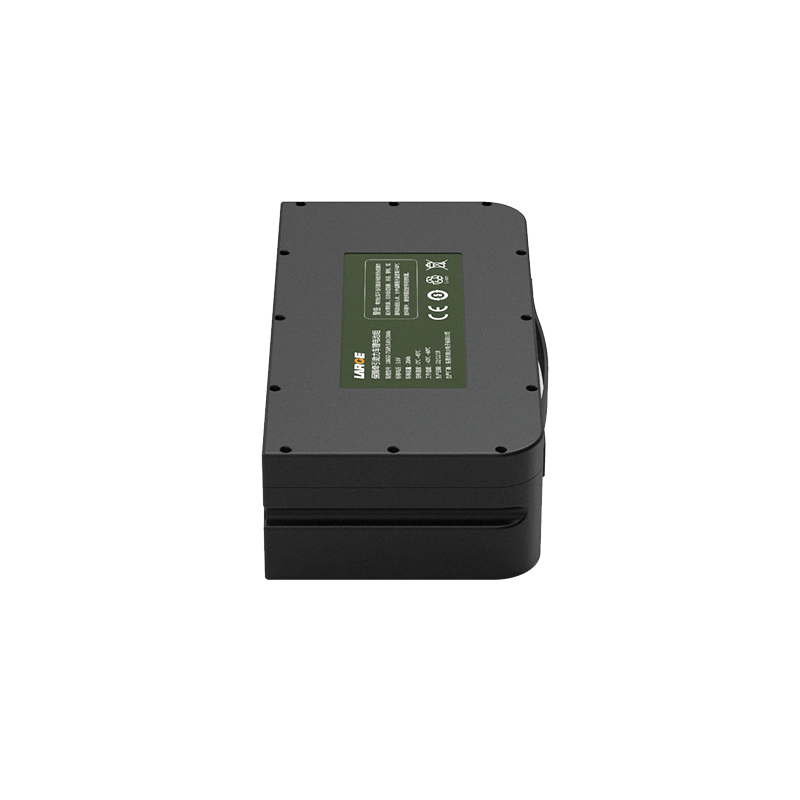

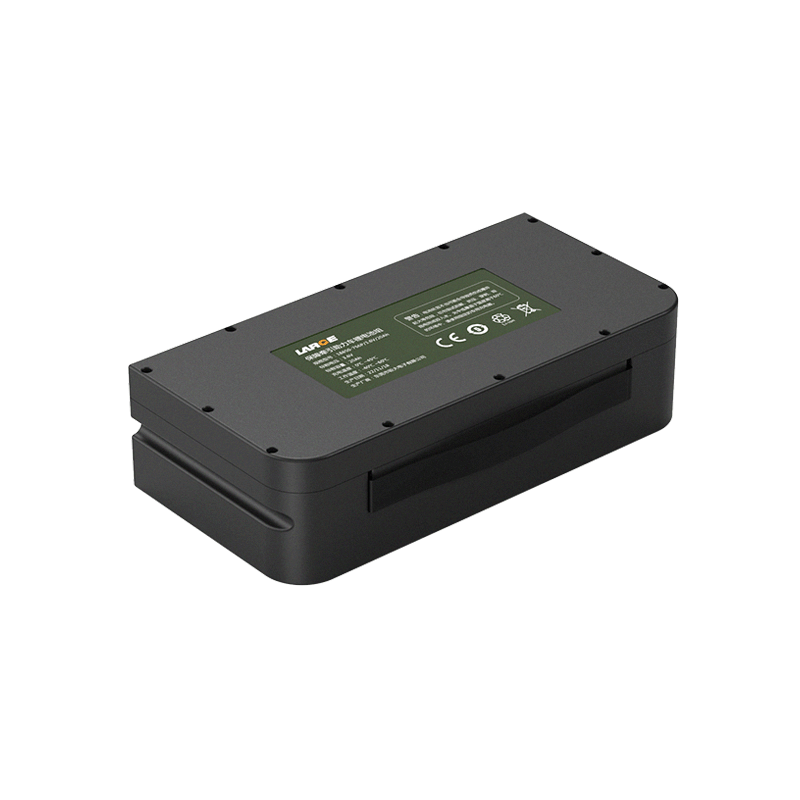

Low Temperature 18650 25.2V 20Ah Lithium-ion Battery Pack for Support Traction Moped

Project number: 33DZ085-02

Cell model: 18650/3.6V/3.35Ah

Battery specification: 18650-7S6P/3.6V/20Ah

Nominal voltage: 25.2V

Nominal capacity: 20Ah

Charging voltage: 29.4V

Charging current: ≤10A

Discharge current: 35A

Instant discharge current: 40-60A

Discharge cut-off voltage: 17.5V

Finished internal resistance: ≤200mΩ

Battery weight: 3100g

Product size: 75*140*280mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -40 ~ 45℃

Temperature protection: 75℃±5℃

Battery case: plastic case

Communication: CAN

Lithium-ion protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, communication and so on

Application: Railway track push detection instrument

Product Features

1.Ternary lithium low-temperature battery

2.Temperature protection

3.The battery pack has good safety and long cycle life;

4.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept;

5.5V 500mAH output

6.CAN communication
