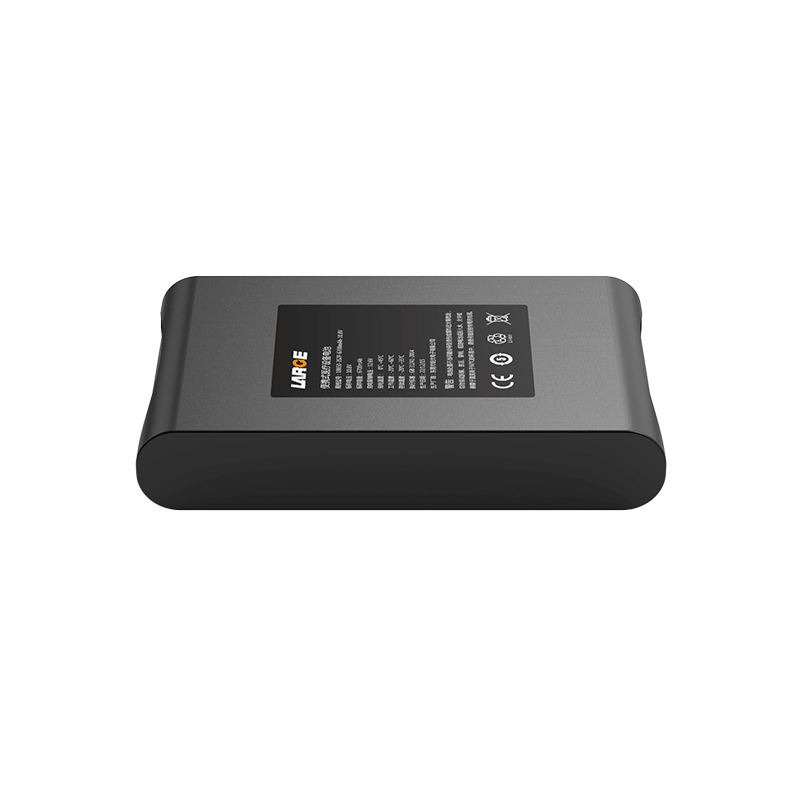

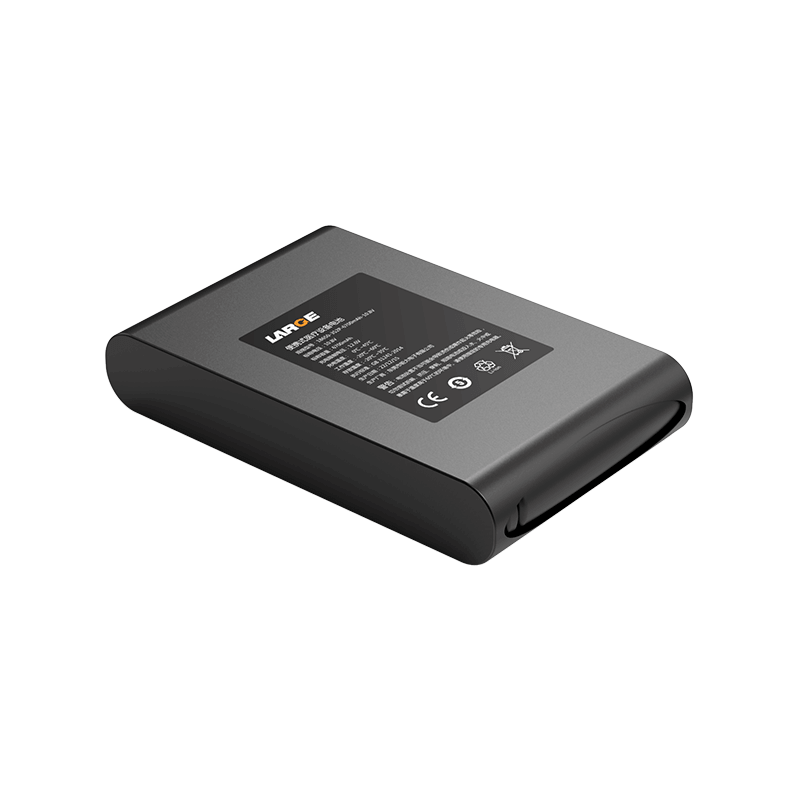

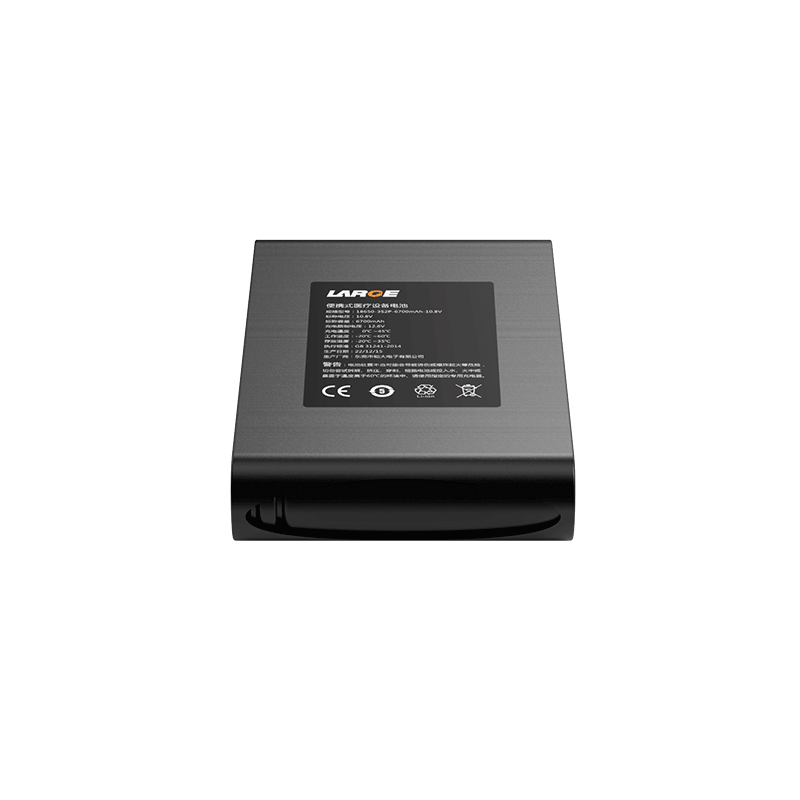

18650 10.8V 6700mAh Portable Medical Device Batteries

Product number: 08DQ0070-01T

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-3S2P-6700mAh-10.8V

Product size: 113*72*20mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 6700mAh

Charging voltage: 12.6V

Charging current: ≤3.0A

Discharge current: ≤3.0A

Discharge cut-off voltage: 7.8V

Finished internal resistance: ≤150mΩ

Battery weight: 300g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Applications: Handheld medical equipment, portable medical equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable, easy to install.

2.Connector plug terminal: Adopt JST plug output mode to increase conductive reliability;

3.Data communication management: TI-SMBus software management chip, SMBus communication accurate data transmission, precise temperature control, to minimize security risks.

4.Battery management: It has high stability, high precision monitoring, accurate control, ESD protection, temperature protection and other functions,so as to minimize security risks

5.The battery pack has good safety, nice discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
