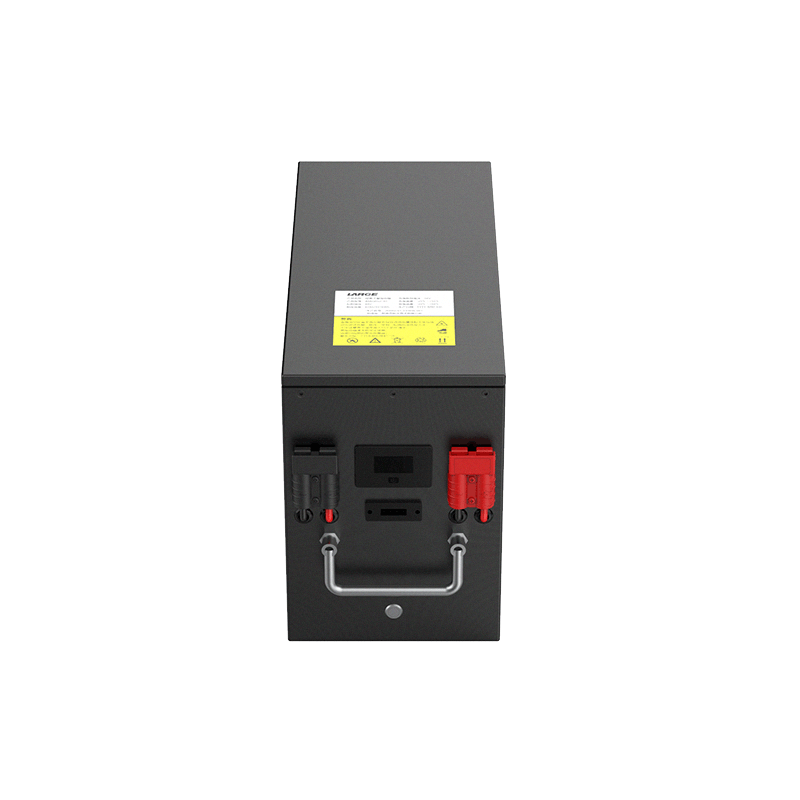

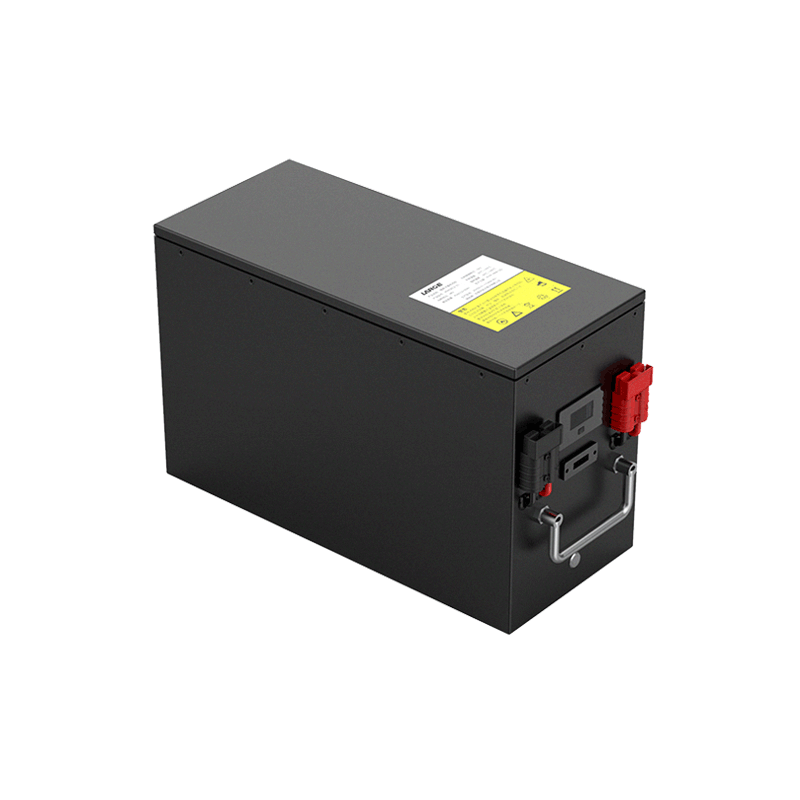

Lithium Iron Phosphate Battery for Downhole Robot

Product number: 40AQ052-07

Cell model: 26650-3.2V-3.3Ah

Battery specification: 26650-15S16P-48V-52.8Ah

Product size: (385×170×245)±1mm

Nominal voltage: 48V

Nominal capacity: 52.8Ah

Charging voltage: 54V

Charging current: 20A

Discharge current: 38A

Discharge cut-off voltage: 30V

Finished internal resistance: ≤180mΩ

Battery weight: ≤29Kg

Charging temperature: -20℃ ~ 45℃

Discharge temperature: -40°C~+55 °C

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: black sheet metal case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: robot, mine

Product Features

1.Metal case built-in battery

2.RS485 communication protocol

3.Output: Anderson plug with power display;

4.Battery protection management: Use imported well-known brand protection chip, with high stability, high precision monitoring, precise control, to maximize the elimination of security risks;

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
