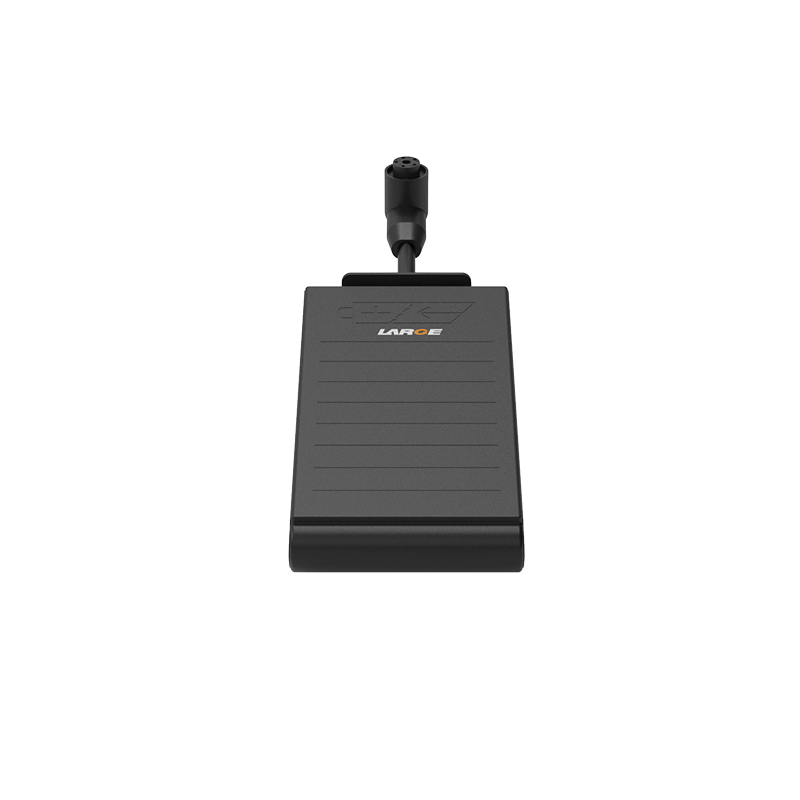

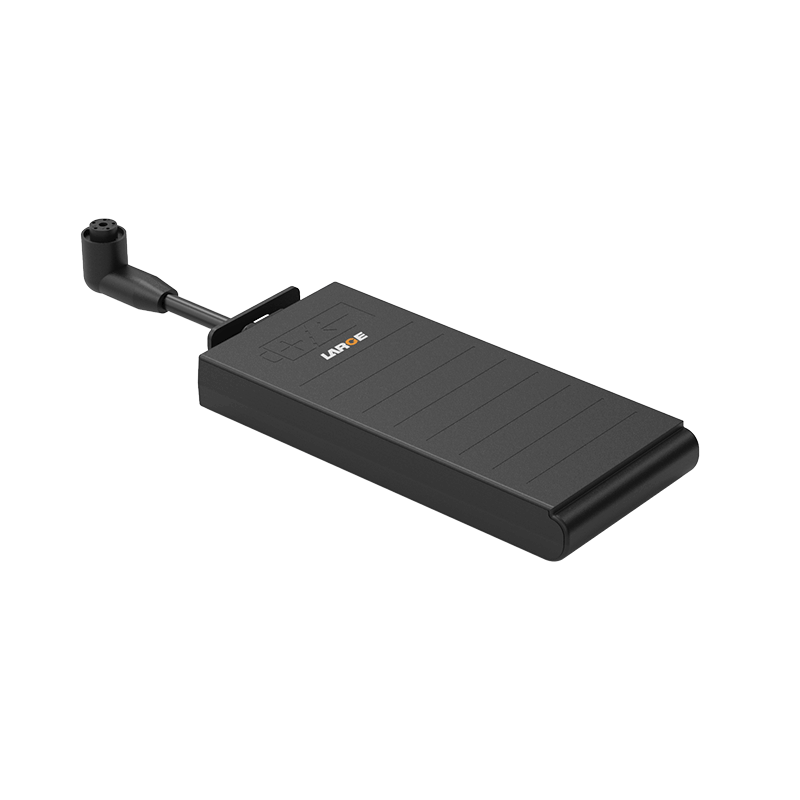

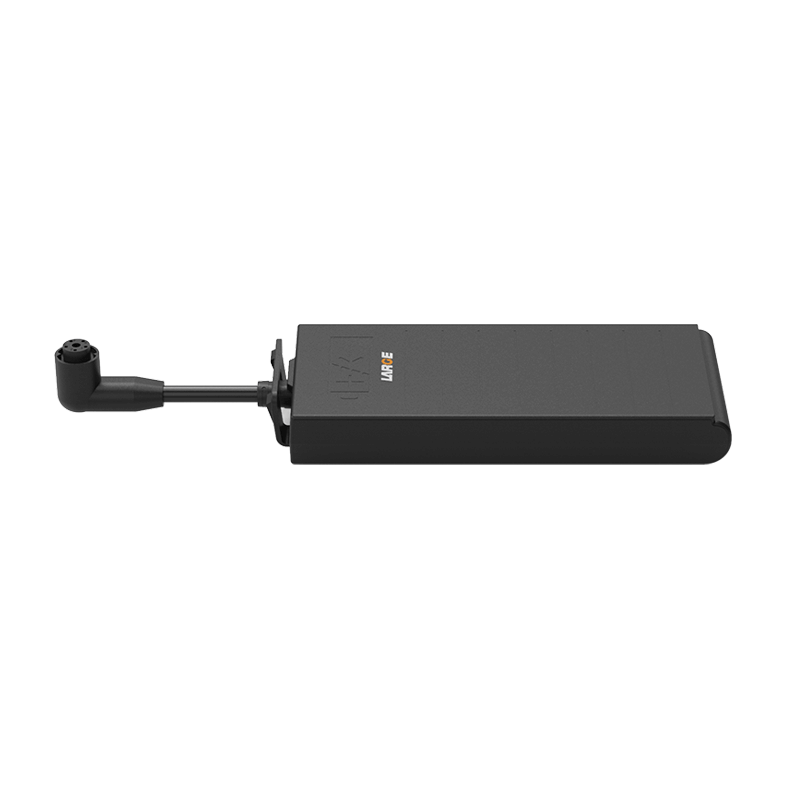

18650 14.52V 2600mAh Artificial Heart Intelligent Lithium-ion Battery Pack

Product number: 05DQ0073-01

Battery model: INR18650-26J/2600mAh/3.63V

Battery specification: 18650-4S1P/2600mAh/14.52V (smart + shell)

Nominal voltage: 14.52V

Nominal capacity: 2600mAh

Charging voltage: 16.8V

Charging current: ≤3.0A

Discharge current: 2.0A

Instantaneous discharge current: 3.0A

Discharge cut-off voltage: 10.8V

Internal resistance of finished product: ≤350mΩ

Battery weight: 500±30g

Product size: 22.3*79.0*173.6mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: ABS+PC

Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Applications: Artificial heart, medical equipment
