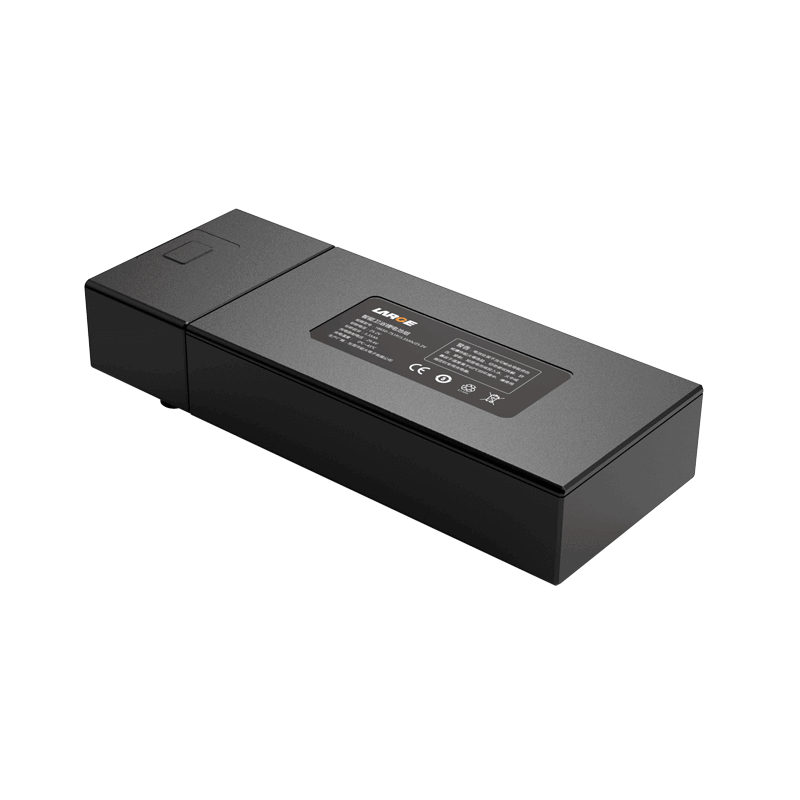

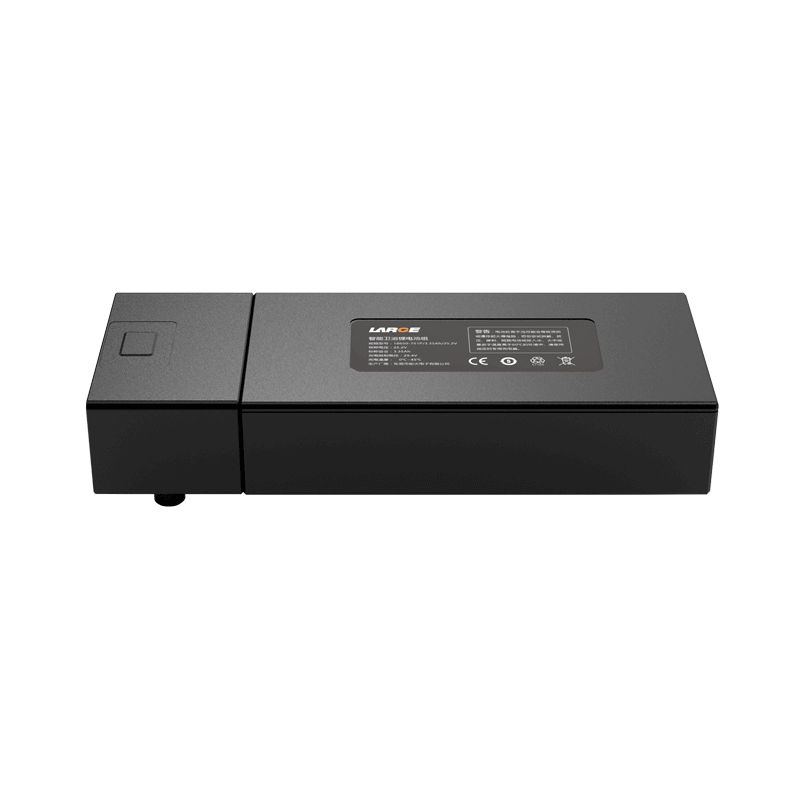

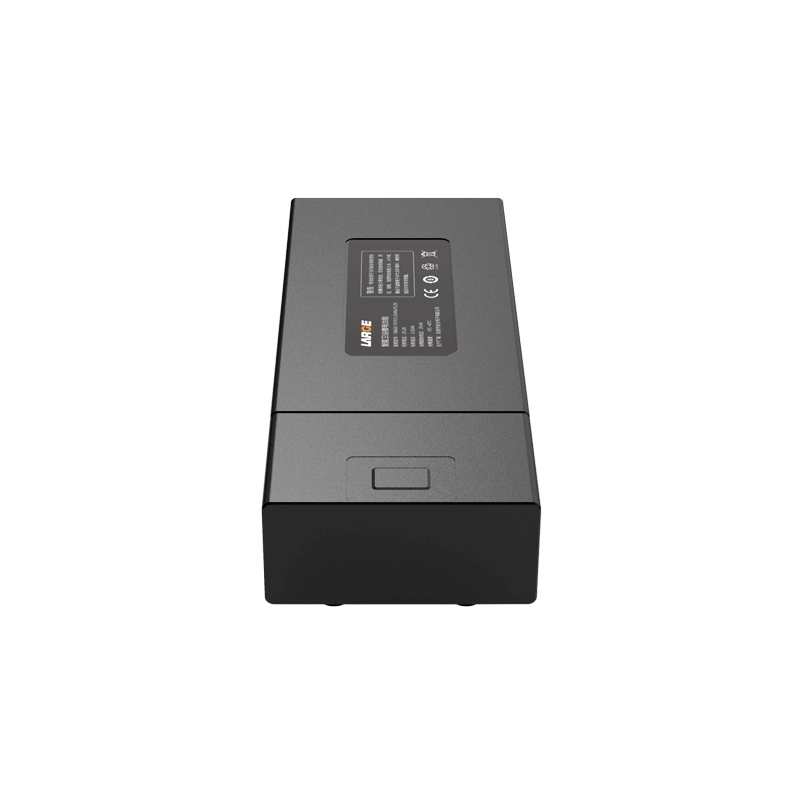

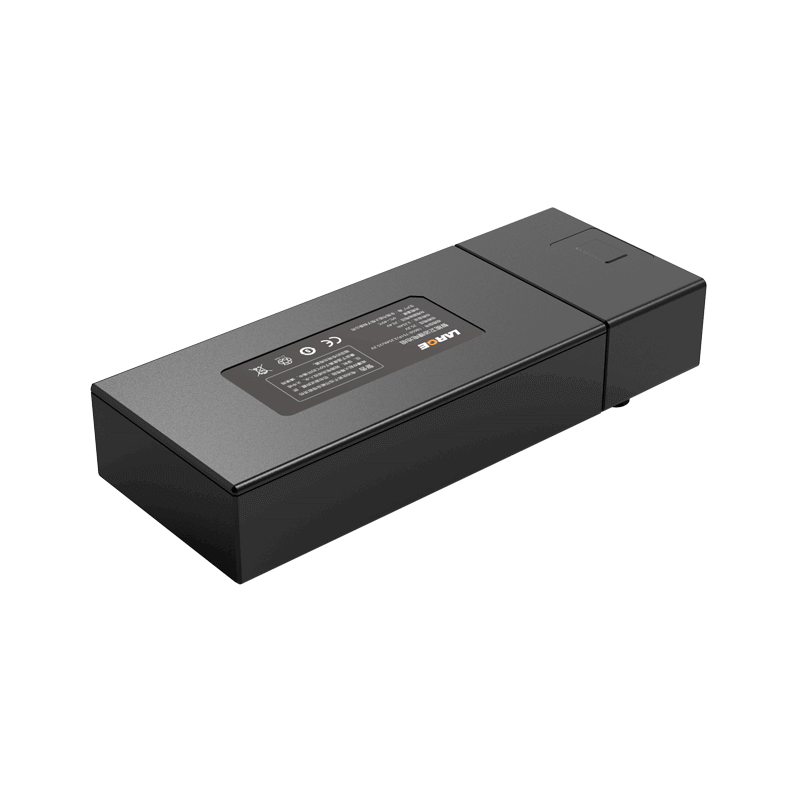

18650 25.2V 3350mAh Samsung Battery for Intelligent Bathroom

Product number: 01DQ0133-01

Cell model：INR18650-35E/3350mAh/3.6V

Battery specification:18650-7S1P/3.35Ah/25.2V

Battery dimension:146*75*34mm（Max）

Nominal voltage：25.2V

Nominal capacity：3.35Ah

Charging voltage: 29.4V

Charging current: ≤2A

Discharging current: ≤8A

End-off voltage:17.5V

Internal resistance: ≤350mΩ

Battery weight: 450g

Charging temperature：10～45℃

Discharging temperature: -20～60℃

Storage temperature: -20~+60℃（less than one month）-20～45 ℃(less than three months)；-20~+23℃（less than twelve months）

Battery case:metal case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: intelligent bathroom

Product features

1. Metal shell is simple and reliable, and is easy to install.

2. Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability.

3. Battery protection management: Adopt imported well-known brand protection chip with good stability, high precision monitoring, precise control to eliminate safety risks.

4. The battery pack has good safety,nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
