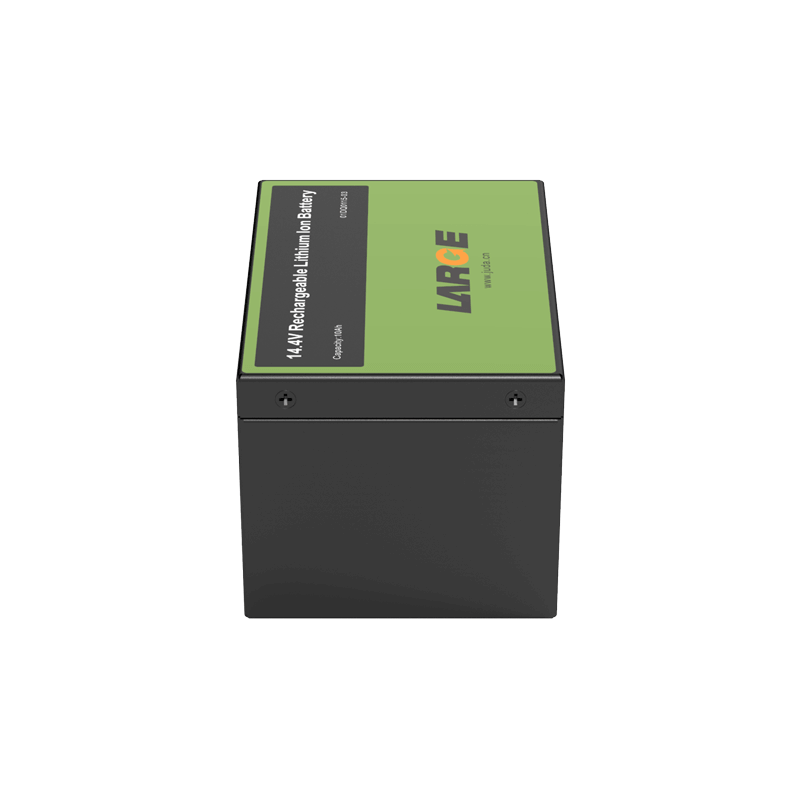

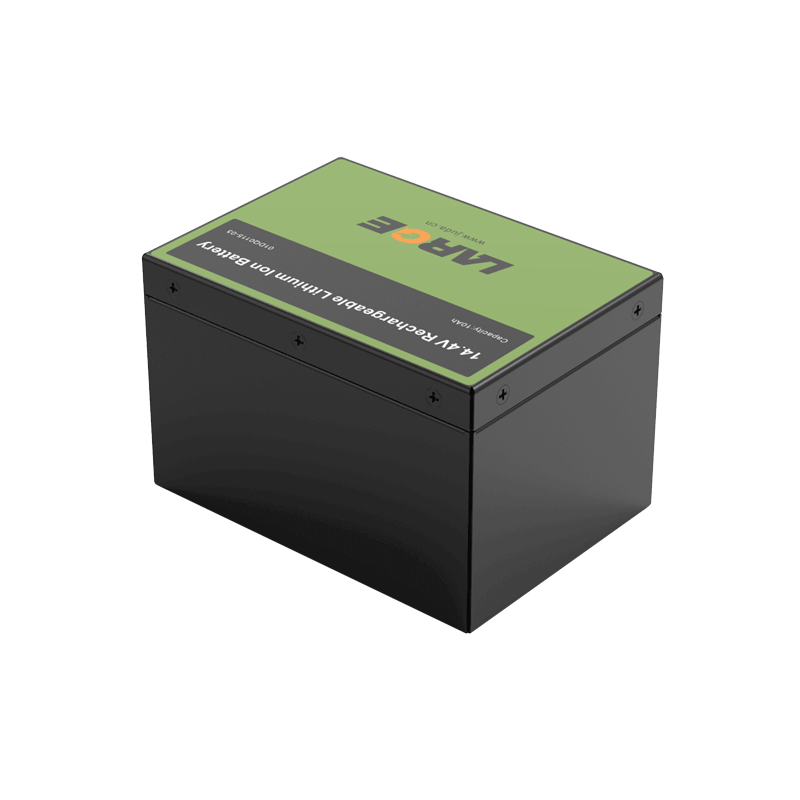

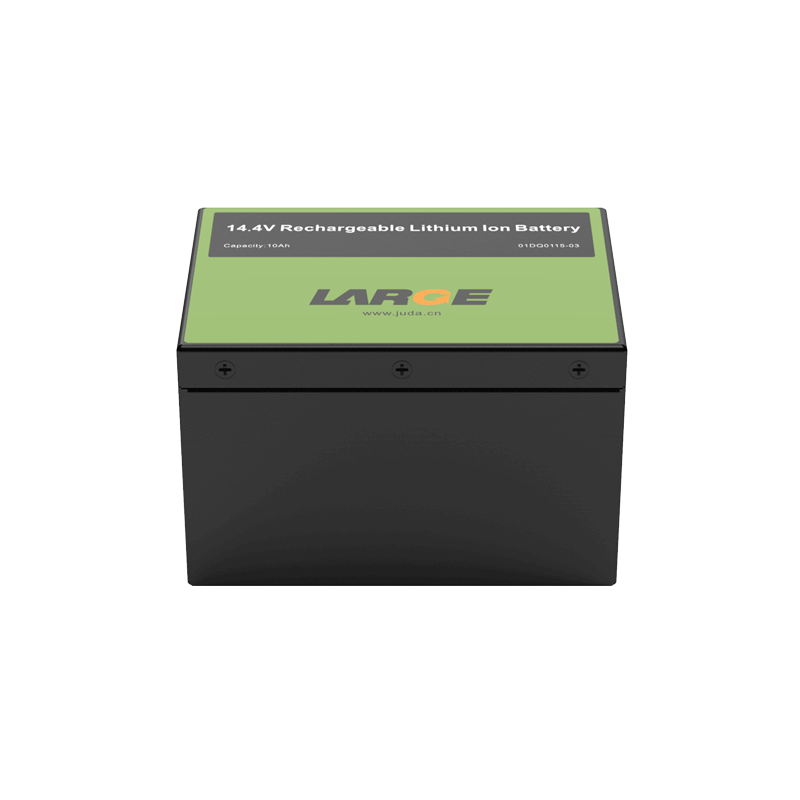

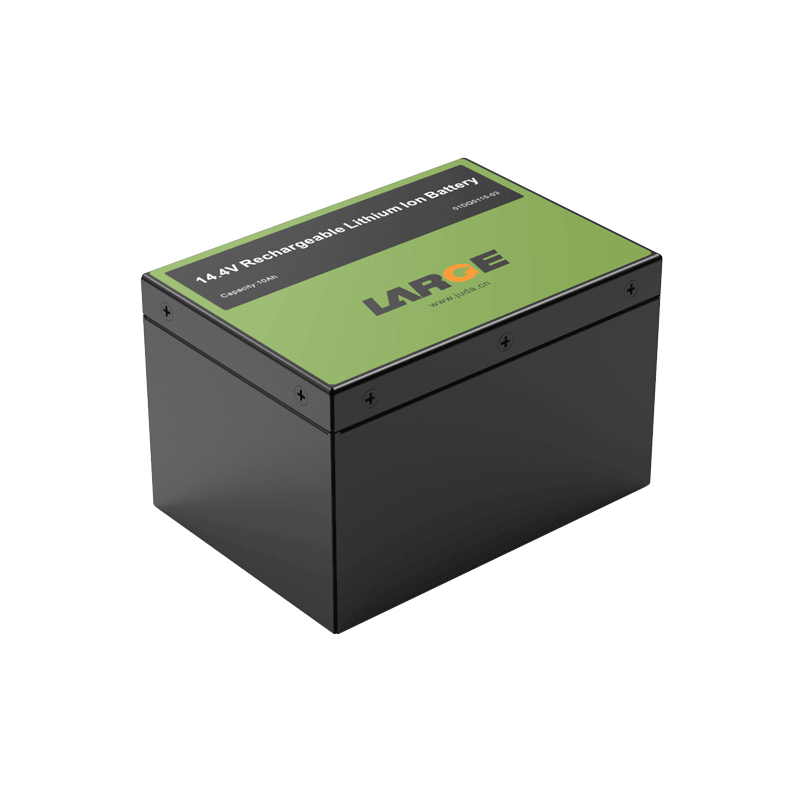

18650 10Ah 14.4V Lithium-ion Battery for Radiation Testing Equipment

Product number: 01DQ0115-03

Cell model: 18650/2500mah /3.6V

Specification: 18650/4S4P/10Ahh/14.4V

Product size: 140*100*90mm

Nominal voltage: 14.4V

Nominal capacity: 10Ah

Product internal resistance: ≤200mΩ

Charging voltage: 16.8V

Charging current: ≤4.8A

Discharge current: ≤4.8A

Discharge cut-off voltage: 10V

Battery weight: 1200G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: aluminum alloy case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Radiation testing equipment, portable testing equipment

Product features

1.Aluminum shell increases battery reliability and firmness.

2.Connector plug terminal:Adopt aviation plug output mode to increase electrical conductivity reliability.

3.Low temperature -40℃ discharge lithium battery

4.Battery protection management: Adopt dedicated lithium battery protection chipwith good stability, nice precision monitoring and precise control to eliminate security risks to the greatest extent.

5.The battery pack has good safety, nice low-temperature discharge performance and high low-temperature discharge rate, supporting -40℃ discharge rate and over 60% discharging power.

6.The battery pack has good safety, nice discharge performance and long cycle life.

7.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
