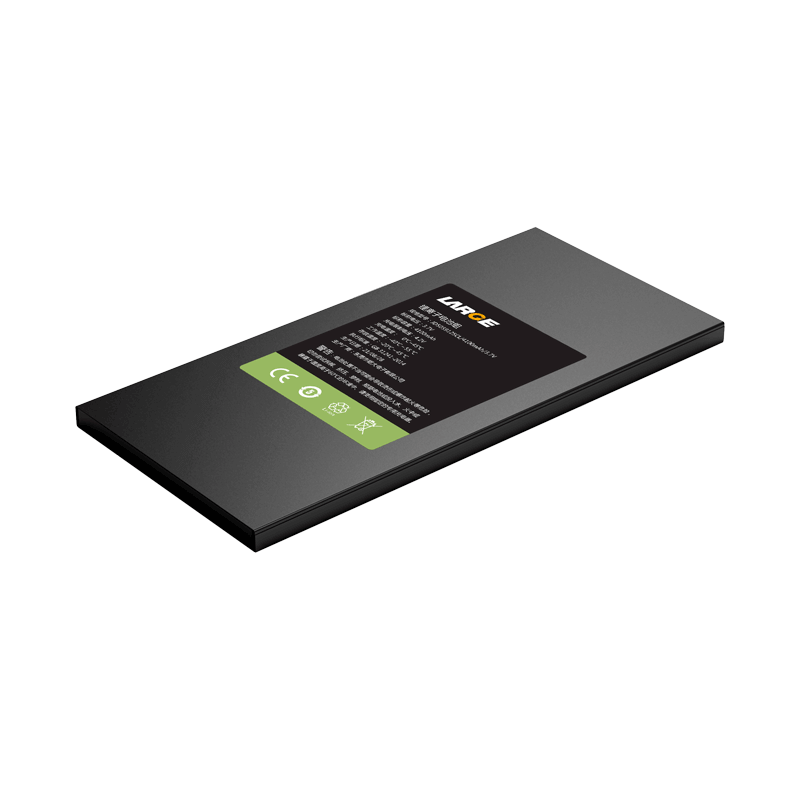

3.7V 4100mAh Lithium Polymer Battery for Hanheld Device

Product number: 35AQ712-01

Cell model: JD5059125CL/4100mAh/3.7V

Specification: JD5059125CL-1S1P-3.7V-4100mah

Product size: 130*60*5.5mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 4100mAh

Charging voltage: 4.2V

Charging current: 4100mA

Discharge current: 4100mA

Discharge cut-off voltage: 2.5V

Product internal resistance: ≤180mΩ

Battery weight: 100G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 55 ℃

Storage temperature: -20 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+20℃ (less than 12 months)

Battery encapsulation: low temperature injection molding + labeling process

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Handheld terminal

Product Features

1.Low temperature injection molding and labeling process are simple and reliable, and easy to be installed.

2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
