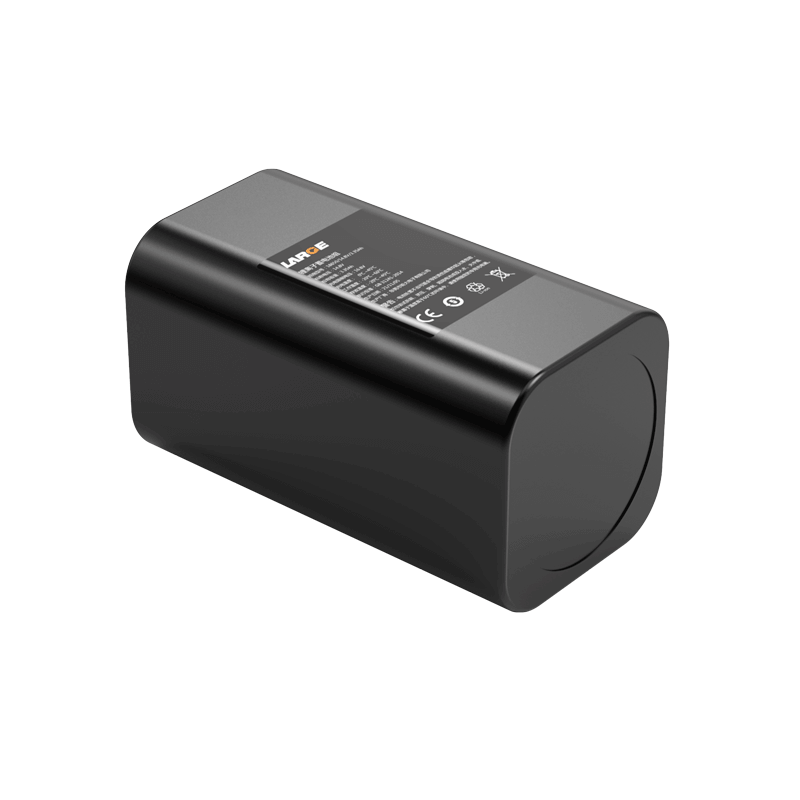

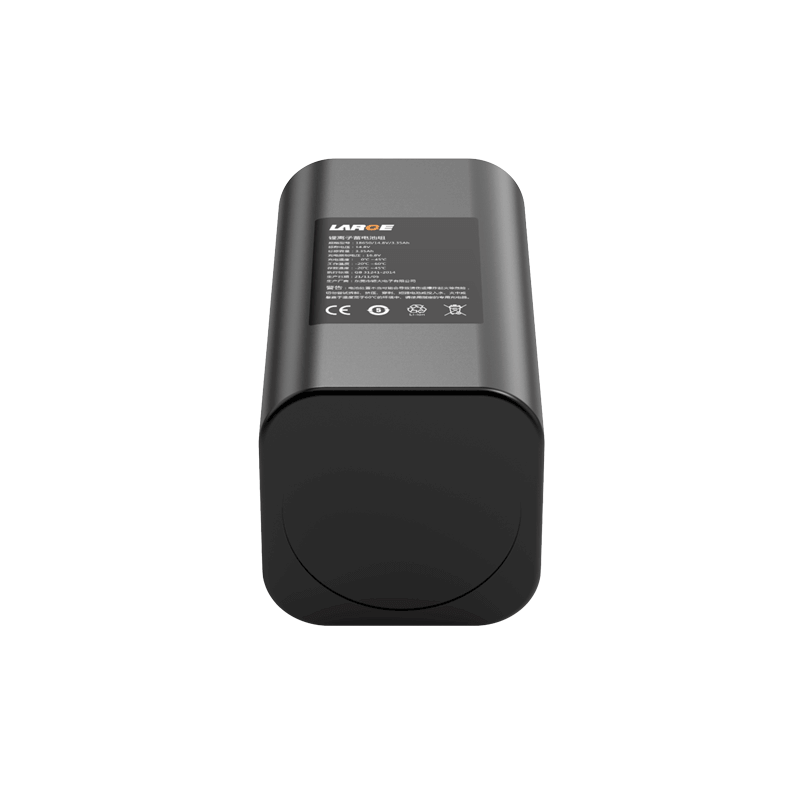

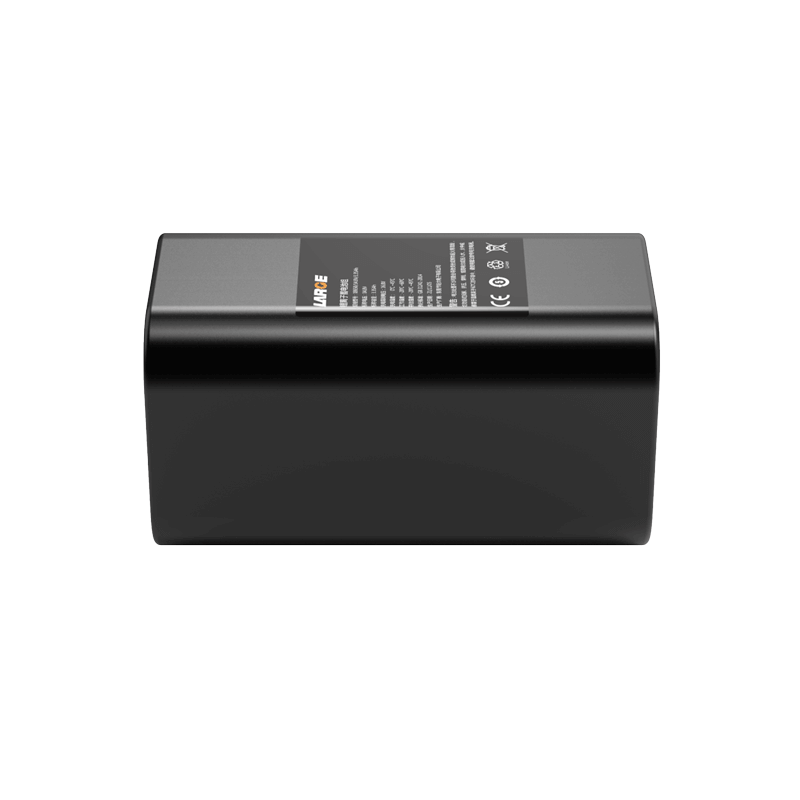

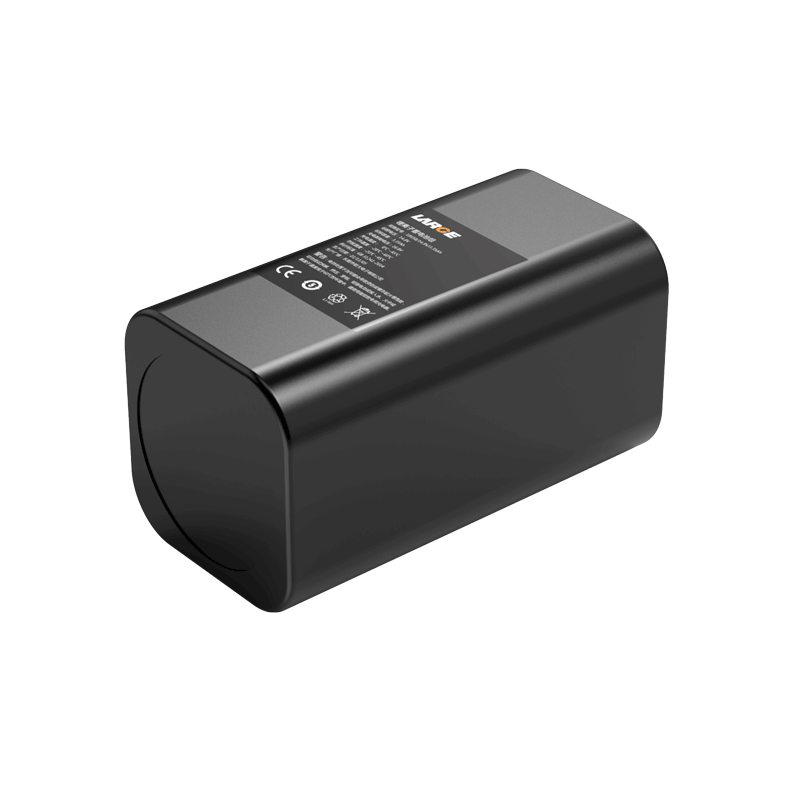

18650 10.8V 3.35Ah BAK Battery for Sound with SMBUS Communication Protocol

Product number: 35AQ588-02

Cell model: 18650/3350mah /3.6V

Specification: 14.8V/3.35Ah

Product size: 73mm *38mm *38mm

Nominal voltage: 14.8V

Nominal capacity: 3.35Ah

Charging voltage: 16.8V

Charging current: 2A

Discharge current: 2A

Discharge cut-off voltage: 10V

Product internal resistance: ≤180mΩ

Battery weight: About 230G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+25℃ (less than 12 months)

Battery package: PVC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: sound

Product Features

1.PVC process

2.SMBUS communication protocol

3.Input terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
