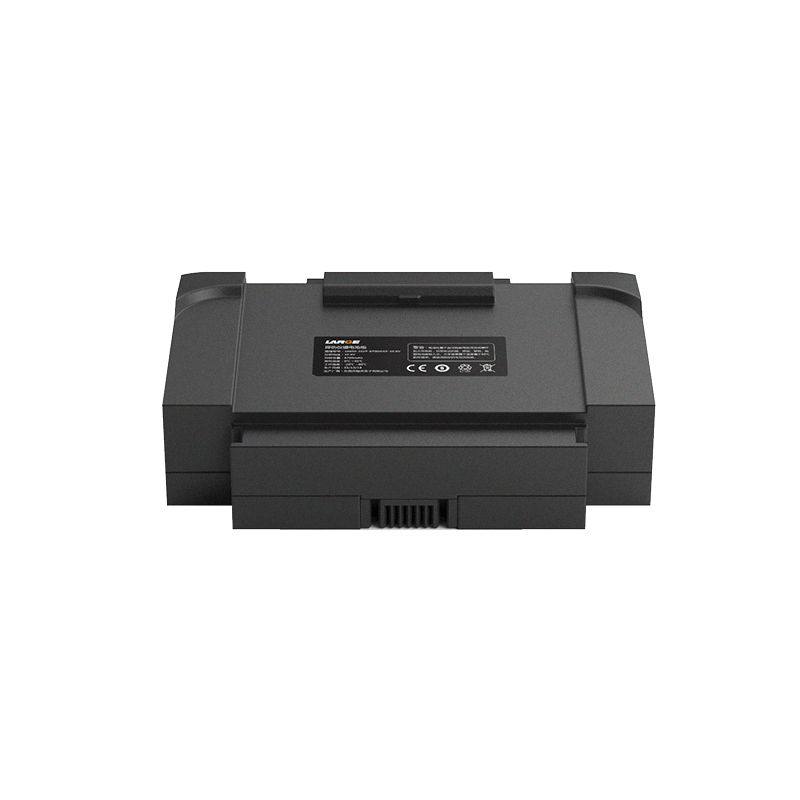

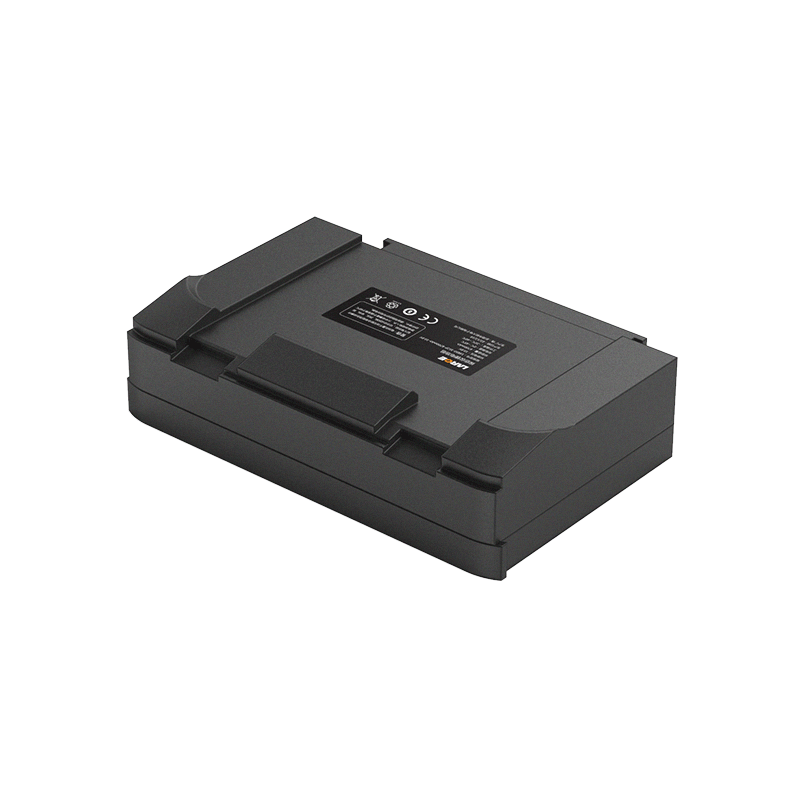

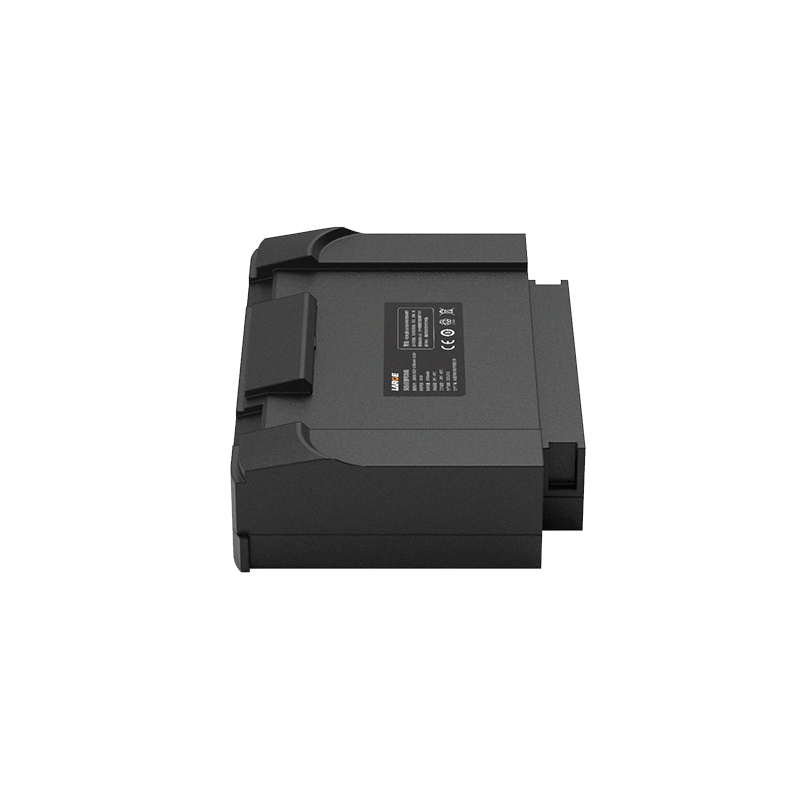

18650 10.8V 6700mAh Flaw Detector Lithium-ion Battery Pack

18650 10.8V 6700mAh Flaw Detector Lithium-ion Battery Pack
18650 10.8V 6700mAh Flaw Detector Lithium-ion Battery Pack
18650 10.8V 6700mAh Flaw Detector Lithium-ion Battery Pack
18650 10.8V 6700mAh Flaw Detector Lithium-ion Battery Pack

Product Detail

Product number: 04AQ826-03

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-3S2P-6700mAh-10.8V

Product size: 120*86*25mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 6700mAh

Charging voltage: 12.6V

Charging current: ≤3.0A

Discharge current: ≤3.0A

Discharge cut-off voltage: 8.1V

Finished internal resistance: ≤200mΩ

Battery weight: 350g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: ABS+PC

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: portable ultrasonic exploration equipment, portable flaw detection equipment


Product Features

1.ABS+PC shell increased battery reliability and firmness;

2.Connector plug terminal: Adopt knife clip connector output mode to increase conductive reliability;

3.Battery protection management: Use special lithium-ion battery protection chip with high stability, high precision monitoring, accurate control, temperature protection functions,so as to minimize security risks;

4.Data communication management: TI-SMBus software management chip, SMBus communication accurate data transmission, real-time battery status monitoring and control.

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.

*
*
*
*
*
