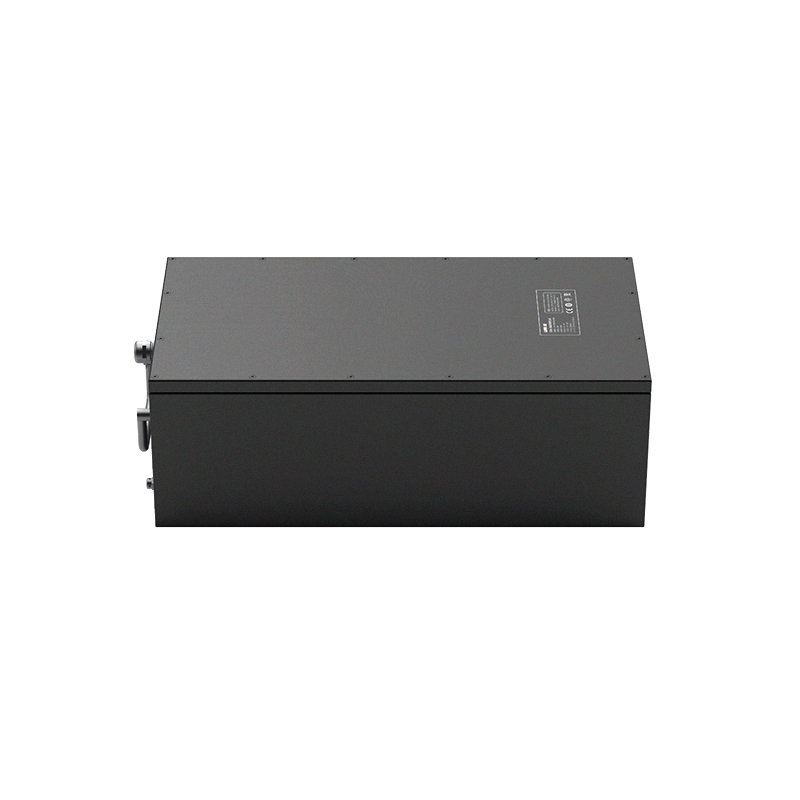

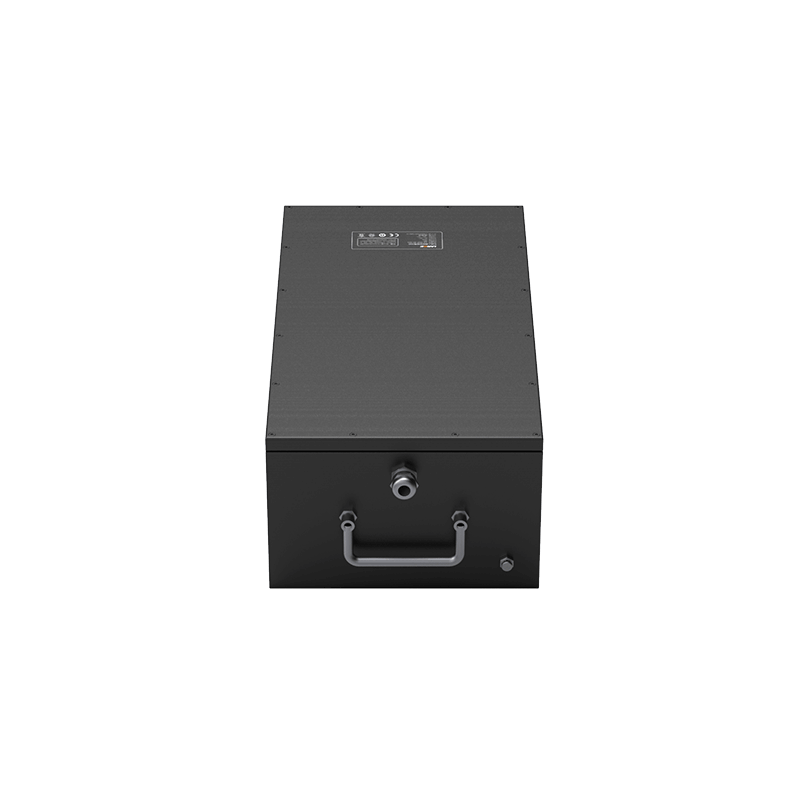

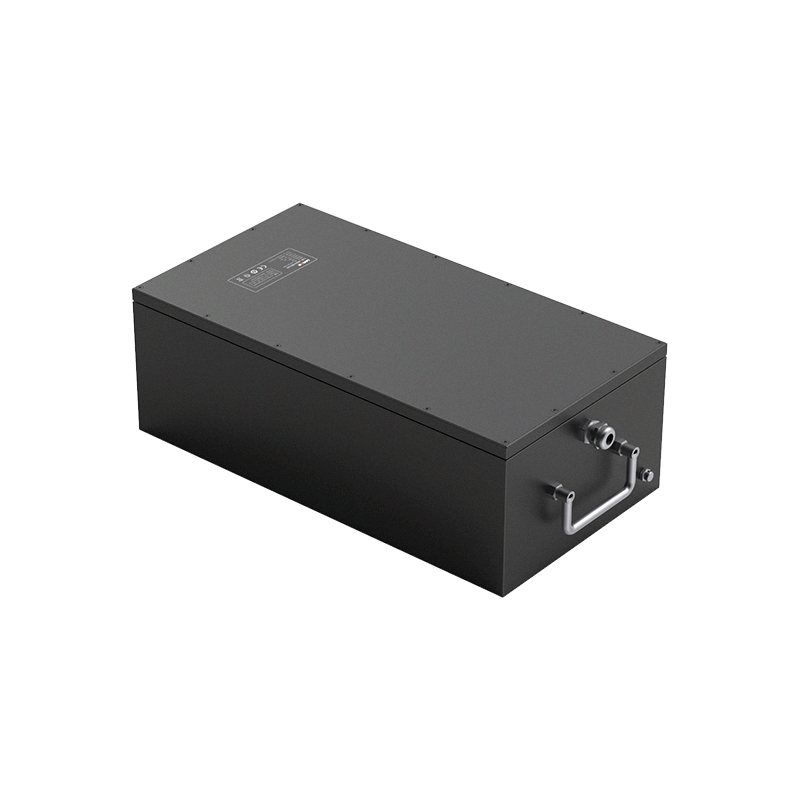

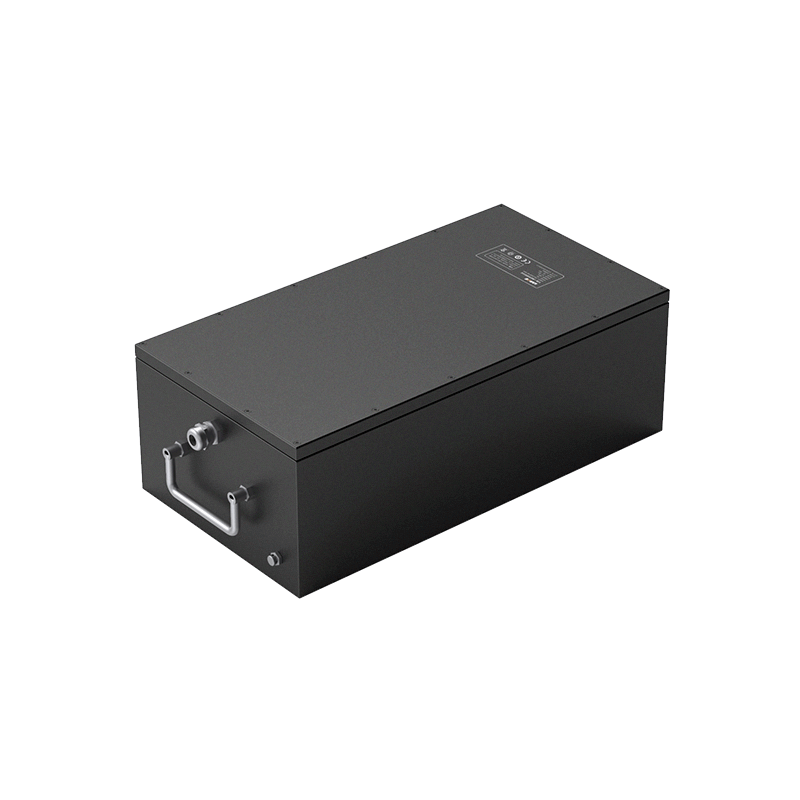

48V 60Ah Robot Lithium Iron Phosphate Battery Pack

Product number: 08DQ0074-01

Battery model: C40-3.2V-20Ah

Battery specifications: C40-15S3P-48V-60Ah

Product size: (460×245×160) ±1mm

Nominal voltage: 48V

Nominal capacity: 60Ah

Charging voltage: 54.75V

Charging current: 30A

Discharge current: 40A

Discharge cut-off voltage: 30V

Finished internal resistance: ≤180mΩ

Battery weight: 25Kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: black sheet metal case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Robots

Product Features

1.Sheet metal shell is simple and reliable, easy to install;

2.CAN communication protocol;

3.Adopt the national standard UL wire output mode to increase the electrical conductivity reliability;

4.Imported well-known brand protection chip, with high stability, high precision monitoring, precise control, to minimize the potential security risks;

5.The battery pack is safe, has good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with the value concept of low carbon, energy saving and environmental protection.
