14.8V 2200mAh Lithium Ion Battery Design Scheme of Intelligent Sweeper

APR 19, 2019   Pageview:2605

Lithium ion battery of intelligent sweeper (keyword: sweeper battery, intelligent sweeper)


As the development of economy, people has more and more exquisite requirement on material life and spiritual needs., more and more intelligent devices are applied by civilians. Floor mopping robot is also named sweeper for lazy people, which is an intelligent household appliance that cleans the floor automatically. It can detect on the size of the room, furniture position, cleaning status of the ground, etc. and come out a proper cleaning route by its inside program. It is called robot for its intelligence. Since intelligent sweeper comes into tens of thousands of family, people have more requirements on the battery of the sweeper, such as environmentally friendly, long cycle life, safe and stable, and widely temperature adaptation of different area.


application environment

place

indoor □outdoor

operating temperature/humidity

-20~60℃;40~60%RH

storage temperature/humidity

-20~20℃;50~70%RH

special performance

the requirements of charging and discharging under high-temperature & low-temperature

Charge at 0~45℃;

Discharge at -20~60℃

other requirements

expiration date

One year

explosive-proof grade

/

waterproof grade

/

dustproof grade

/

dropping frequency

/

application features



operating voltage

12~16.8V

capacity

2200mAh

working hours

/ mins

dimension

72*38*38mm

operating current

2.0A

maximum starting current

5A start-up time:20ms

maximum continuous operating current

2.5A

frequency and time

use frequently

capacity management

communication mode □SMBUS □I2C □HDQ

certification and environmental requirement of finished products

types

■GB31241-2014(CQC)

□CE

□UL2054

□UL60950

□un38.3

□RCM

□KC

□PSE

component verification

□BIS

□BMSI

□REACH

■RoHS

battery directive

halogen-free

other:

schematic design



battery specification

18650-4S1P-2200mAh-14.8V

cell model

18650-2200mAh-3.7V

guard plate and hardware configuration



IC

S-8254AAV

MOS

SL3012S*2

PTC

/

NTC

/

other

/


■PVC+ fundamental protection □PVC+ non-fundamental protection □housing+ fundamental protection □housing+ non-fundamental protection

key parameters

nominal voltage

14.8V

nominal capacity

2200mAh

dimension

72*38*38mm

internal resistance

≤ 330m Ω

weight

200g

charging current

2.5A

continuous discharge current

2.5A

protective current

9~15A

charging voltage

16.8V

End-off voltage

12V

cycle life

Charging and discharging requirements: charge at 0.5c, discharge at 0.5c

over 500 cycles

charging temperature

0~45℃

discharging temperature

-20~60℃

storage temperature

-20~60℃

temperature protection

/±/℃

key features



1. have function of overcharging, over-discharging, overcurrent, short circuit, etc.

2. With NTC temperature measurement

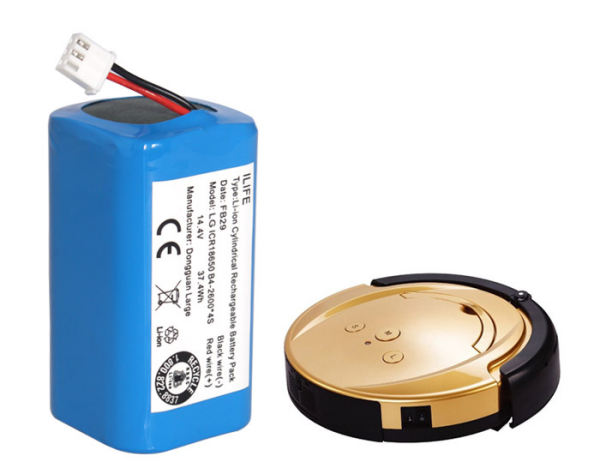

product picture



*
*
*
*
*
