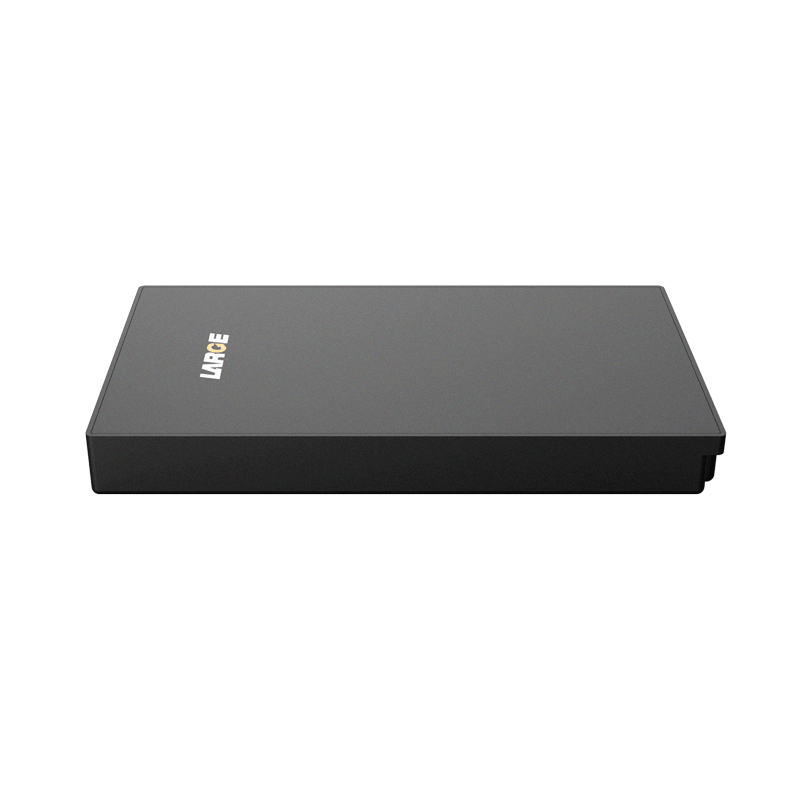

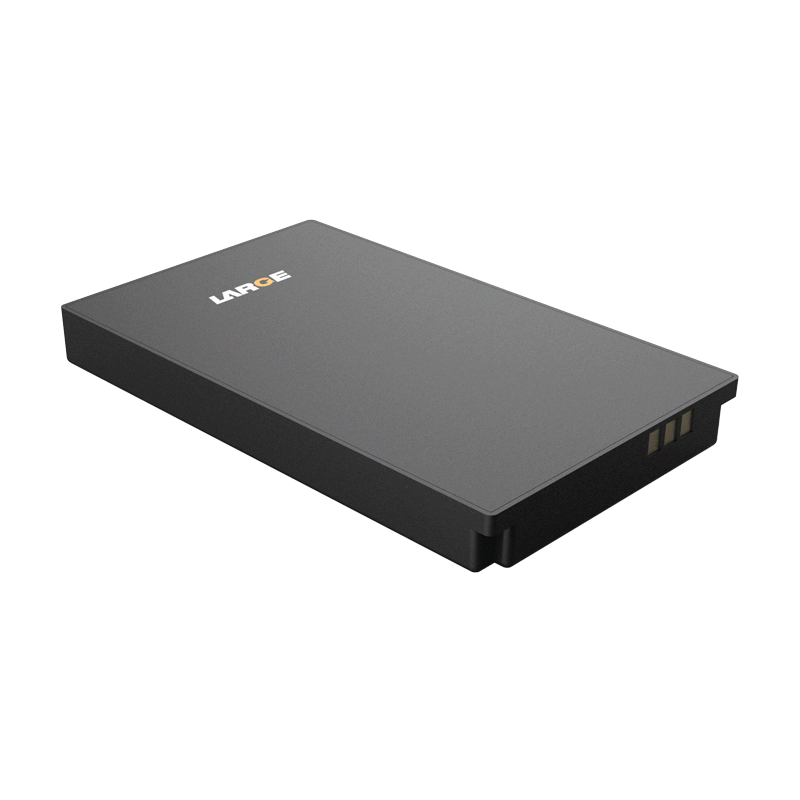

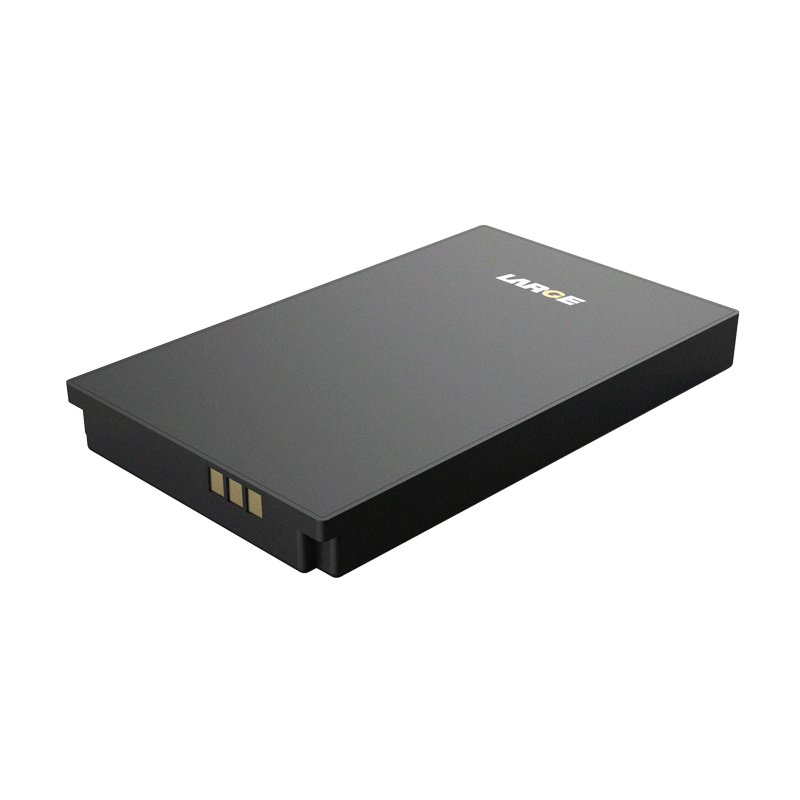

7.4V 3.5Ah Explosion-proof Li-Polymer Battery for Special Mobile Terminal

Product number: 04DQ0345-03

Cell model：4567104/3.7V/3500mAh

Battery specification: 4567104-2S1P/7.4V/3500mAh

Nominal voltage：7.4V

Nominal capacity：3.5Ah

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 0.6A

Instant discharging current: 1.5A

End-off voltage: 6.0V

Internal resistance: ≤180mΩ

Battery weight: 150g

Product dimension: 13*72*118mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～55 ℃

Storage temperature: -20～45 ℃

Battery case: engineering plastic

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, explosion proofing, etc.

Application field: special mobile terminal, special tablet

Product features

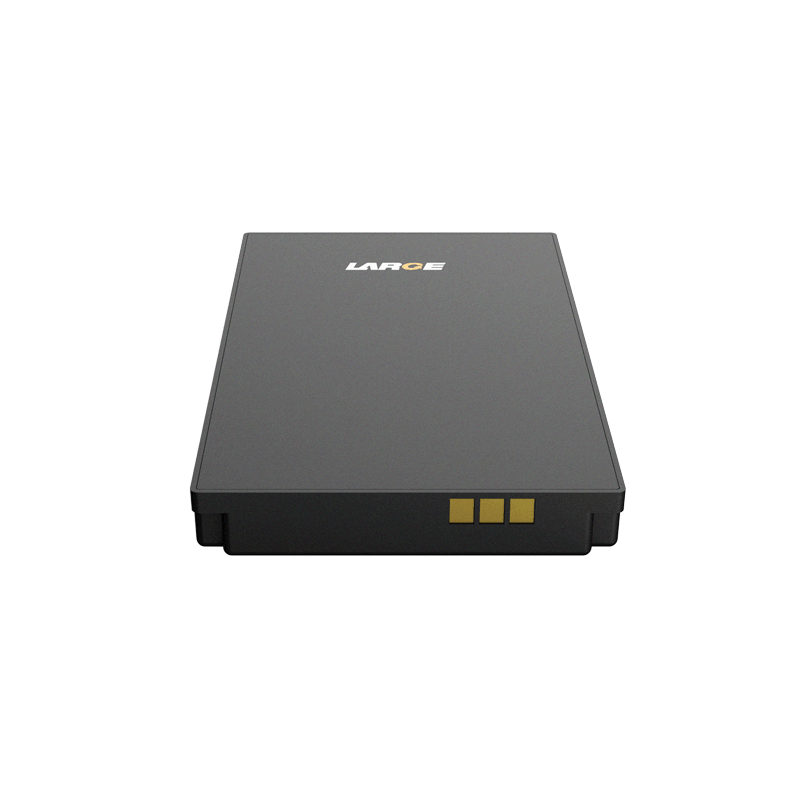

Hardware output: adopt gold plate sheet mode to improve the conductive reliability.

Data communication management: adopt IC+I2C/SMBUS protocol so as to try our best to eliminate the security risks.

The battery pack is safe and has passed explosion detection.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
