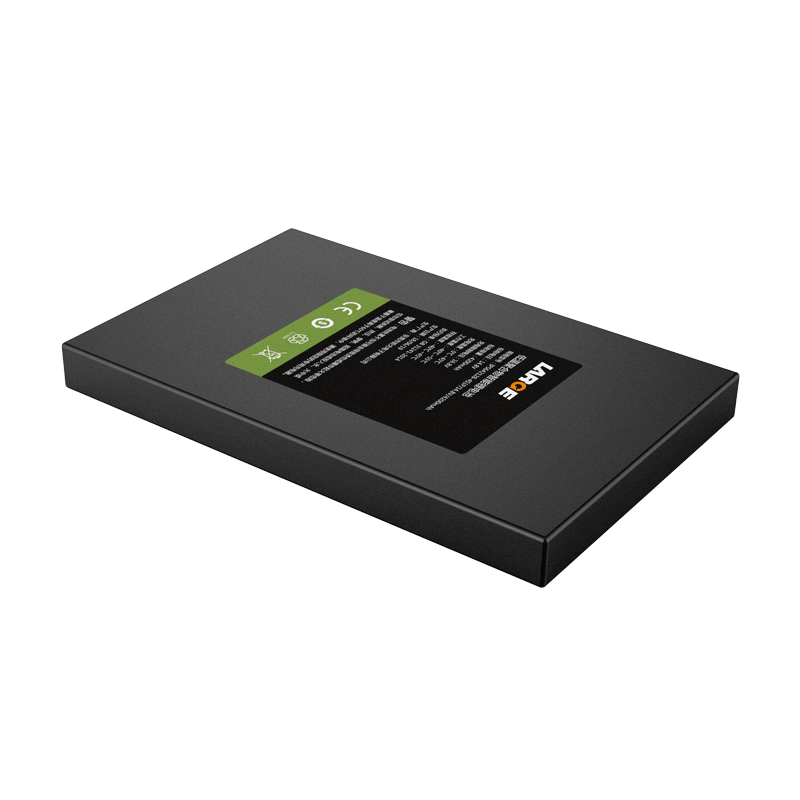

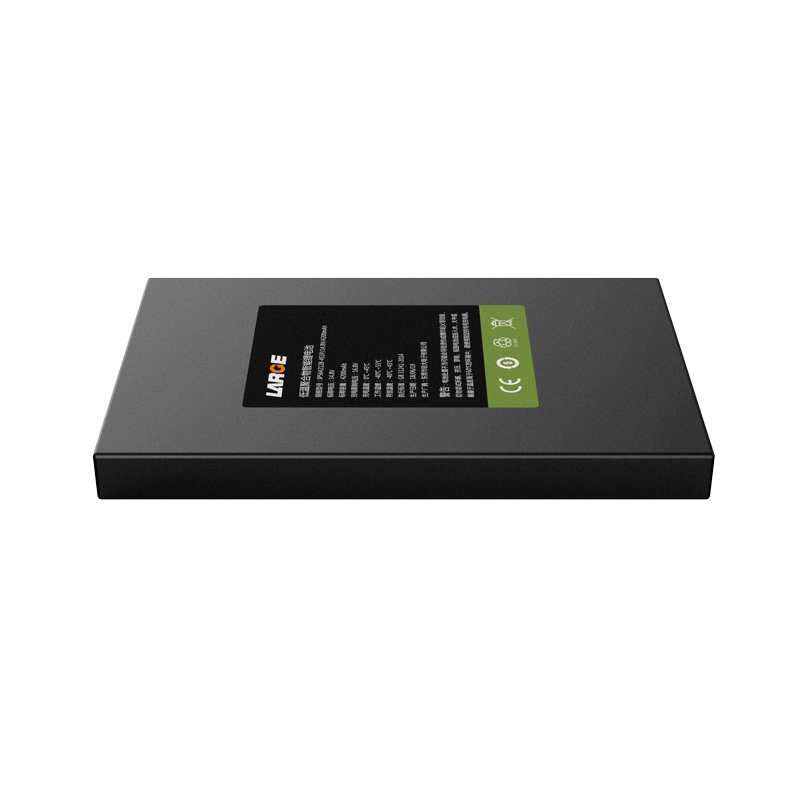

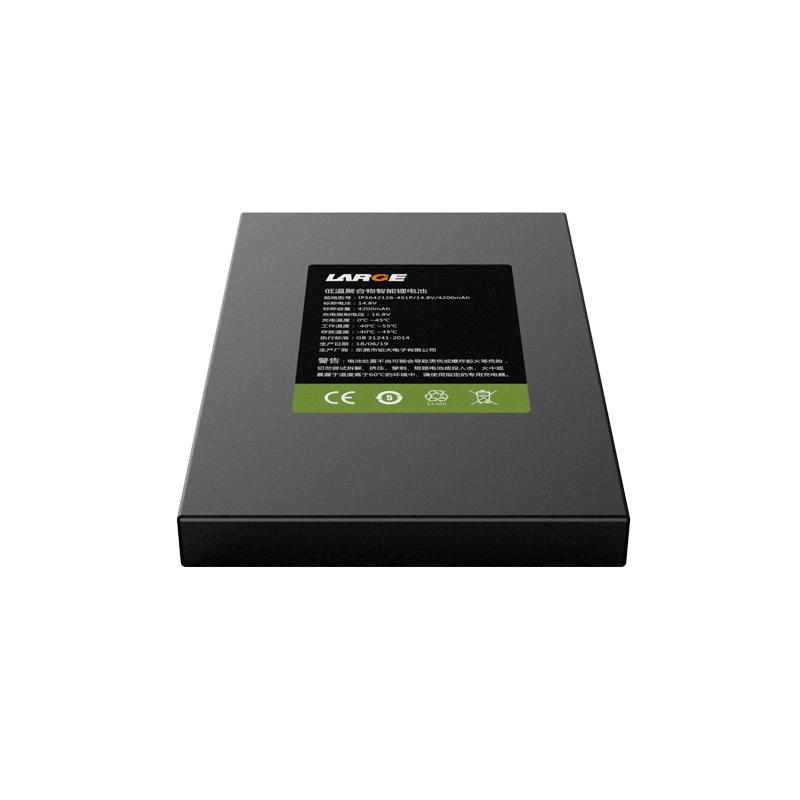

14.8V 4200mAh Lithium Polymer Battery for Portable Mobile Equipment

Product number: 39DZ009-01

Cell model：IP5642128 3.7V 4200mAh

Battery specification: IP5642128-4S1P/14.8V/4200mAh

Nominal voltage：14.8V

Nominal capacity：4200mAh

Charging voltage: 16.8V

Charging current: ≤2.1A

Discharging current: 3A

Instant discharging current: 8A

End-off voltage: 10V

Internal resistance: ≤250mΩ

Battery weight: 350g

Product dimension: 11.2*86*135mm

Charging temperature：0～45℃

Discharging temperature: -40～55 ℃

Storage temperature: -40～45 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, I2C management, etc.

Application field: portable mobile equipment

Product features

1. It has low self-discharge.

2. The battery has intelligent power meter with I2C communication.

3. The battery has good security and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
