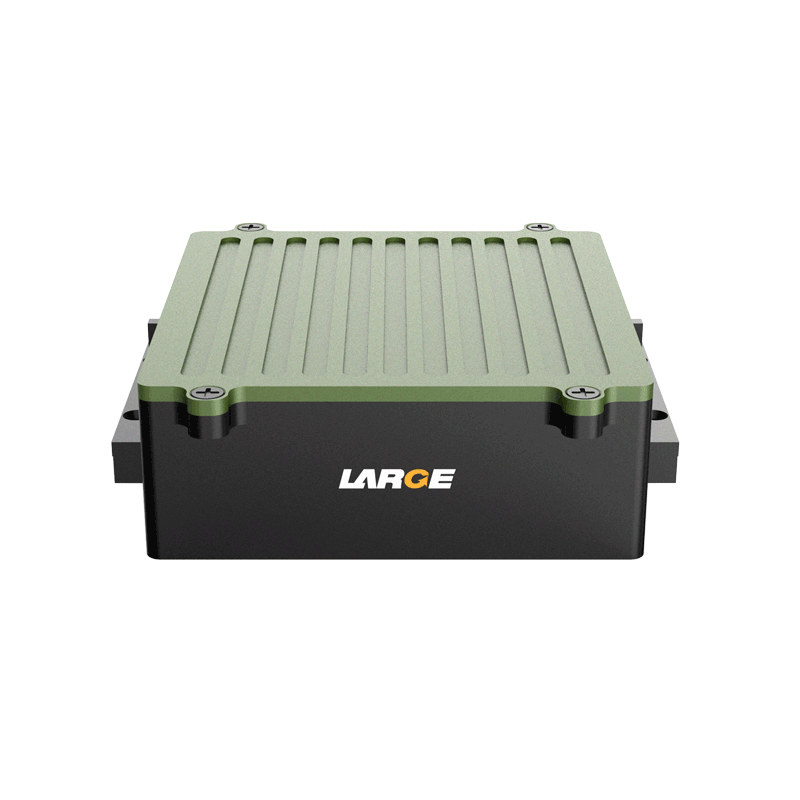

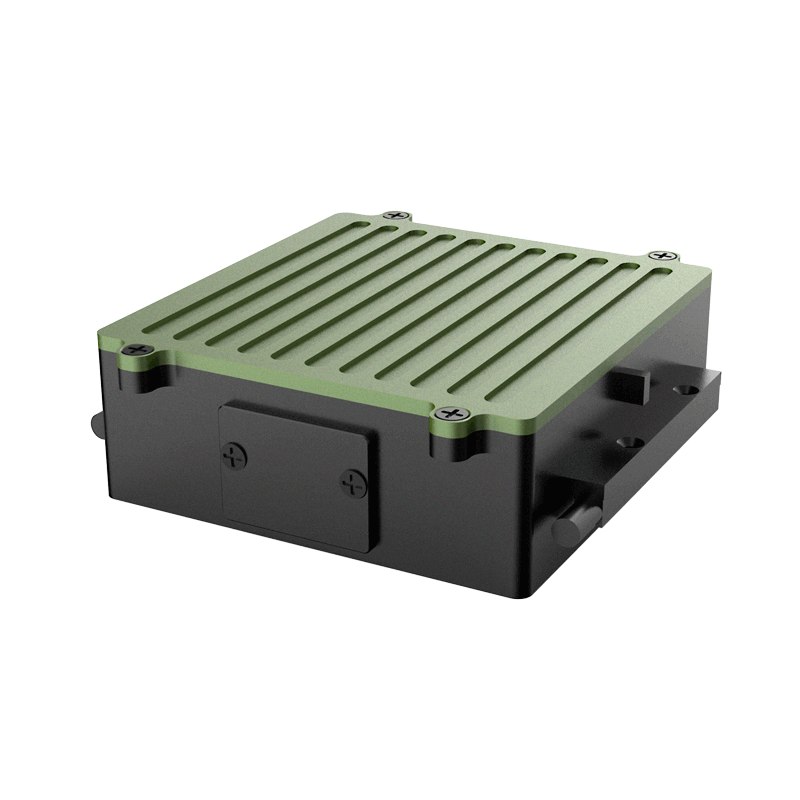

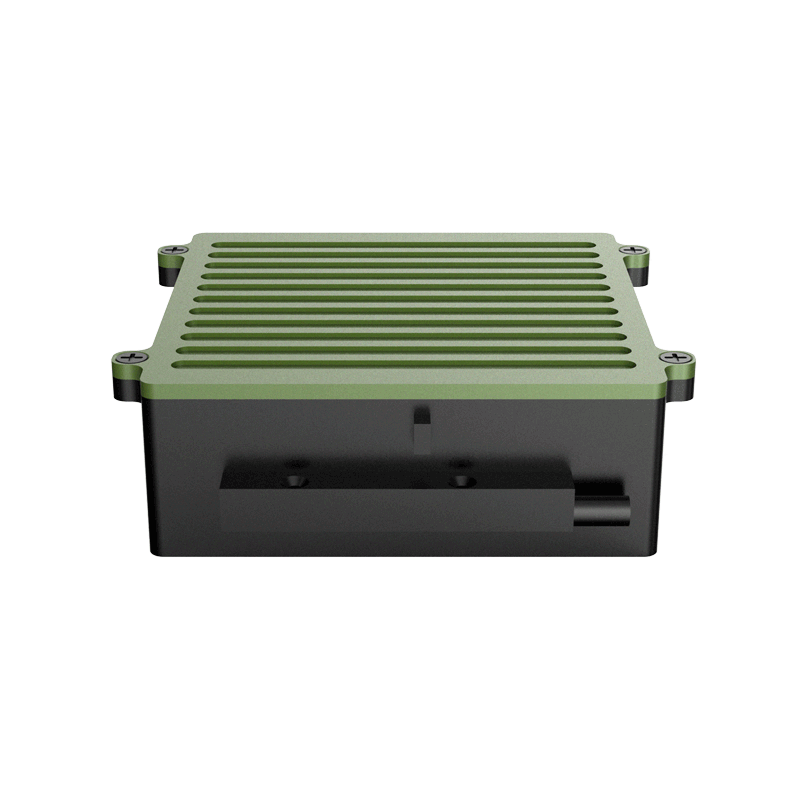

14.8V 1700mAh Low Temperature Lithium Polymer Battery for Special Backup Instrument

14.8V 1700mAh Low Temperature Lithium Polymer Battery for Special Backup Instrument
14.8V 1700mAh Low Temperature Lithium Polymer Battery for Special Backup Instrument
14.8V 1700mAh Low Temperature Lithium Polymer Battery for Special Backup Instrument
14.8V 1700mAh Low Temperature Lithium Polymer Battery for Special Backup Instrument

Product Detail

Product number: 35AQ430-01

Cell model:LA505855CL/1700mAh/3.7V

Battery specification: LA505855CL-4S1P/14.8V/1700mAh

Nominal voltage:14.8V

Nominal capacity:1700mAh

Charging voltage: 16.8V

Charging current: ≤1.6A

Discharging current: 1.6A

Instant discharging current: 1.6A

End-off voltage: 10V

Internal resistance: ≤250mΩ

Battery weight: 200g

Product dimension: 63*64.5*23.5(±0.2,mm)

Charging temperature:0~45℃

Discharging temperature: -40~55 ℃

Storage temperature: -20~25 ℃

Battery case: aluminum alloy 5A06 H112, black anodized inside and outside

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and SMBus communication, etc.

Application field: backup battery of special backup instrument


Product features

1. It has low self-discharge.

2. It has smart meter with SMBus communication.

3. The battery pack has good security and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

5. The product is in good condition at low temperature.

6. Product design refer to RTCA do-311 2008.

*
*
*
*
*
