22 Years' Battery Customization

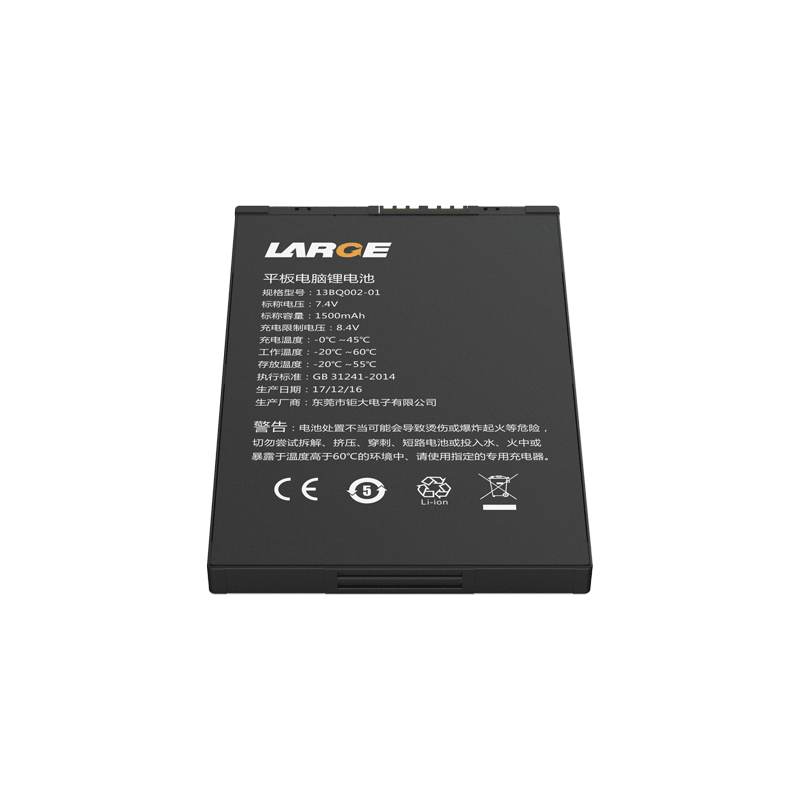

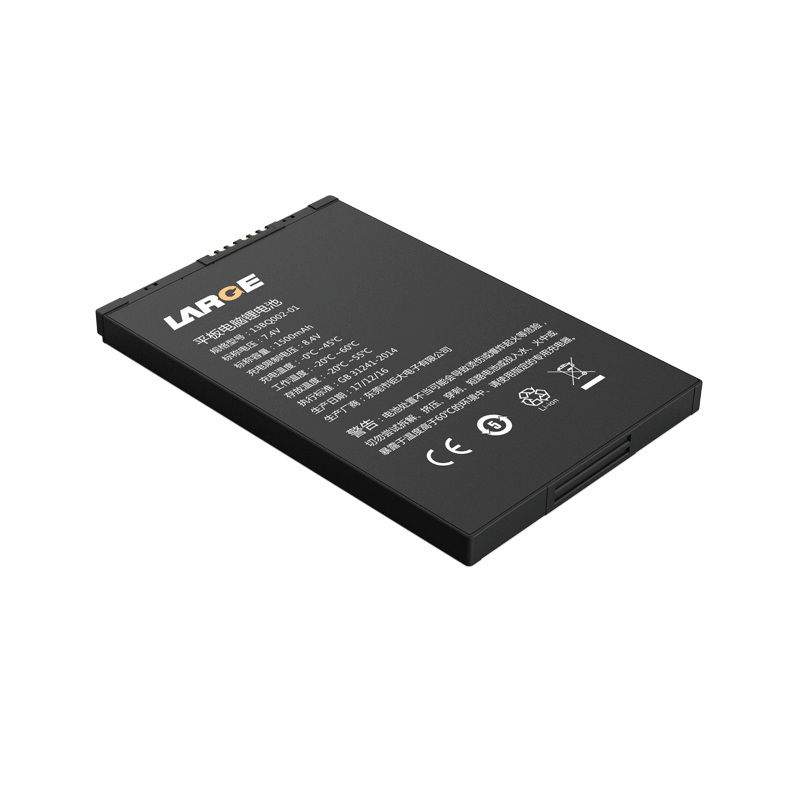

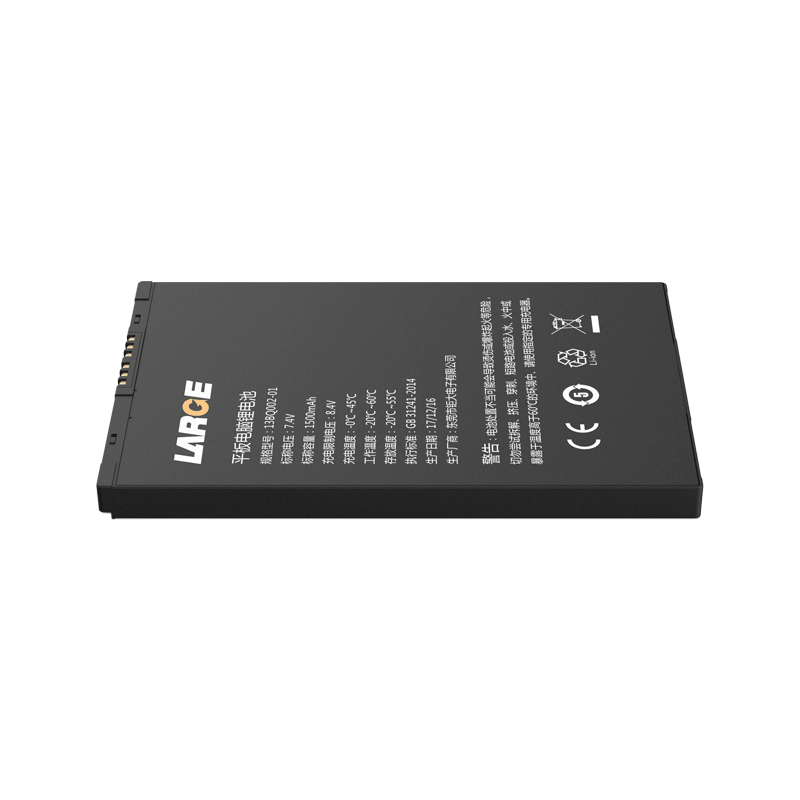

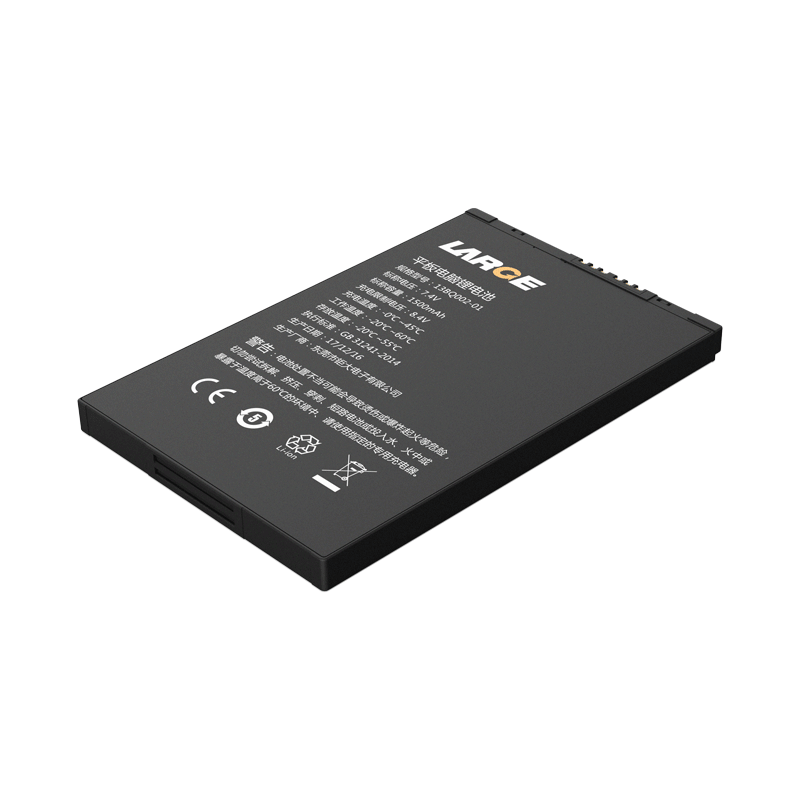

7.4V 1500mAh Polymer Battery for Tablet PC

7.4V 1500mAh Polymer Battery for Tablet PC
7.4V 1500mAh Polymer Battery for Tablet PC
7.4V 1500mAh Polymer Battery for Tablet PC
7.4V 1500mAh Polymer Battery for Tablet PC

Product Detail

Product number: 13BQ002-01

Cell model:564458/3.7V/1500mAh

Battery specification: 564458-2S1P/7.4V/1500mAh

Nominal voltage:7.4V

Nominal capacity:1500mAh

Charging voltage: 8.4V

Charging current: ≤0.75A

Discharging current: 0.3A

Instant discharging current: 0.75A

End-off voltage: 6.0V

Internal resistance: ≤280mΩ

Battery weight: 67g

Product dimension: 6.5*62*94mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: handheld device, tablet PC, etc.


Product features

It has ABS+PC housing, which increases the reliability and stability of the battery.

Hardware output terminal: adopts gold-plated shrapnel output mode to increase conductive reliability.

Data communication management: adopt TI-I2C software management chip, I2C precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

The battery pack has good security, nice performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
*
*
