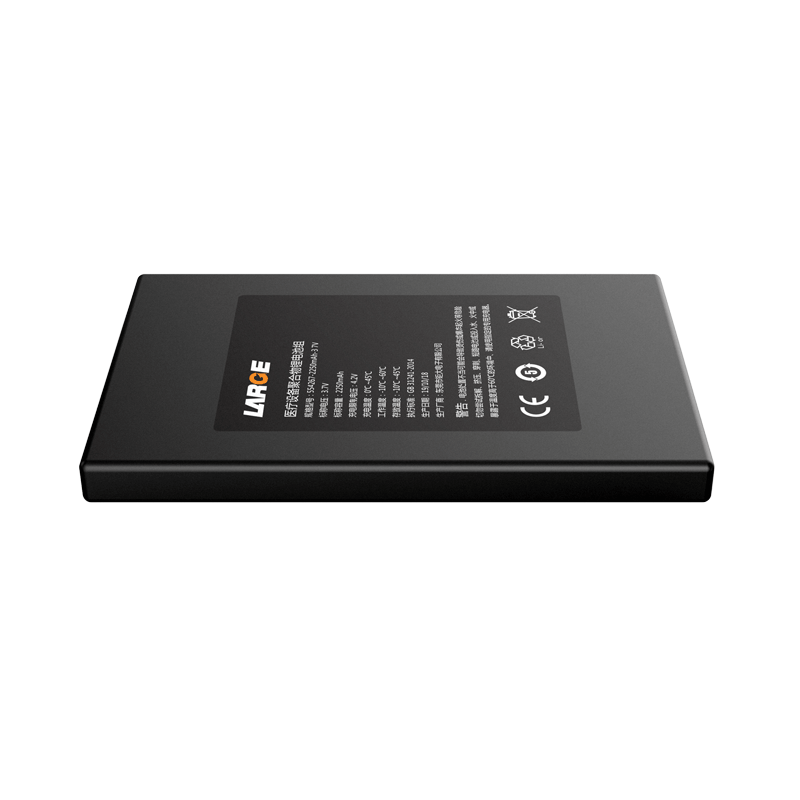

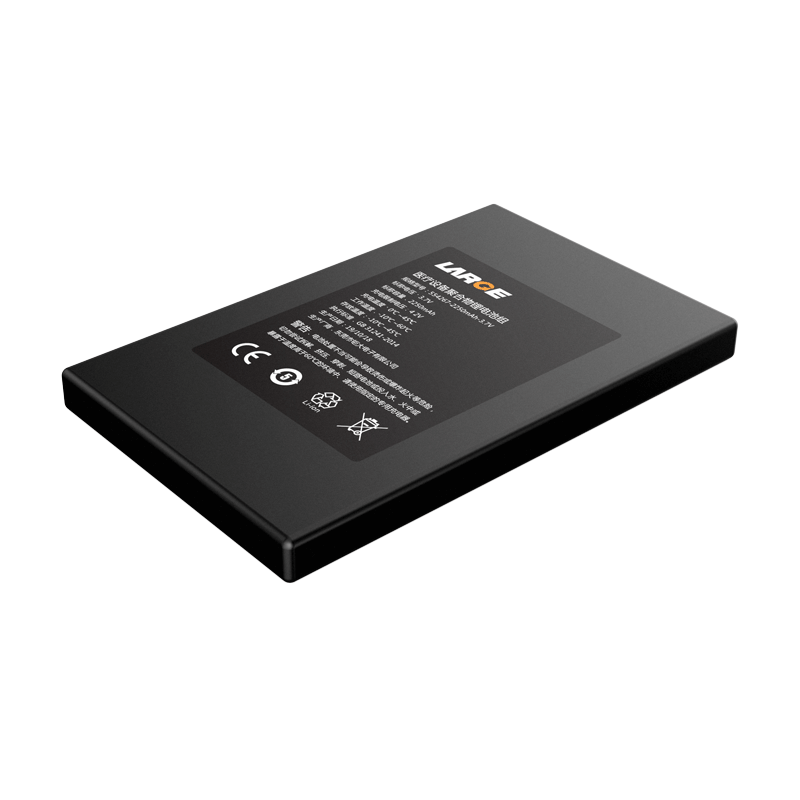

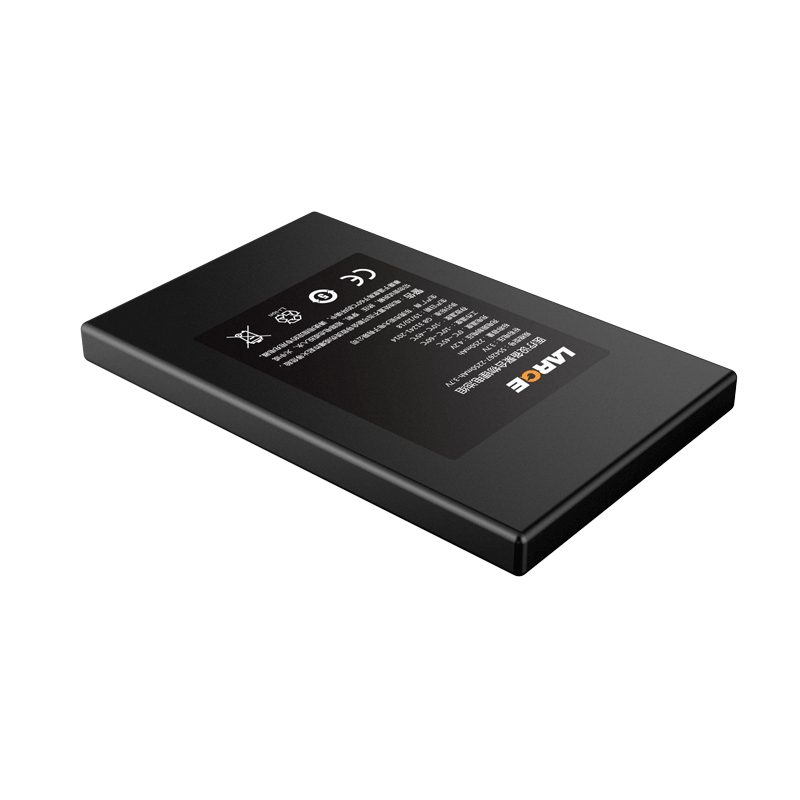

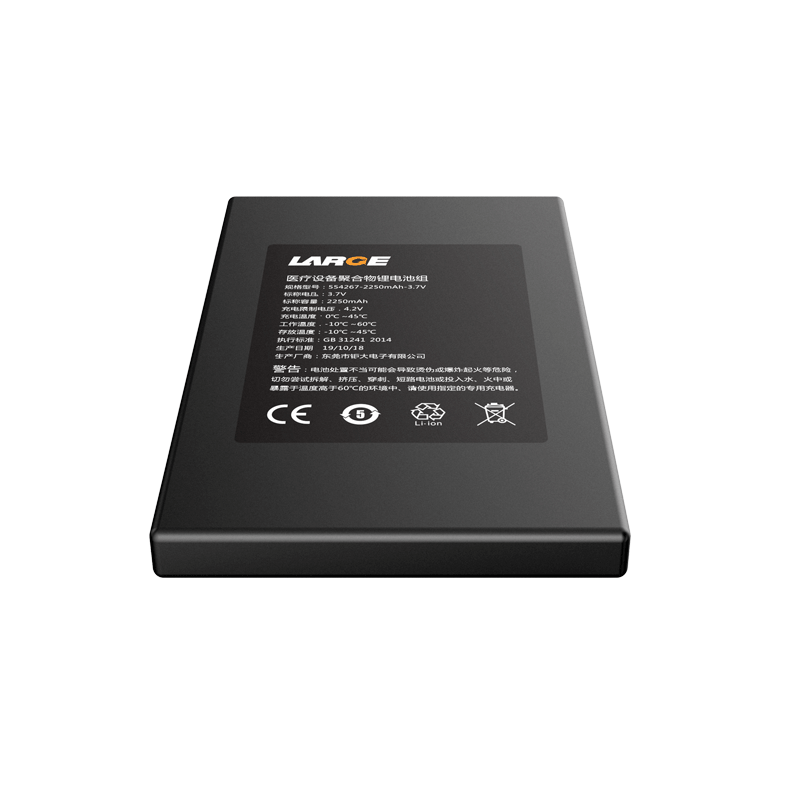

554267 3.7V 2250mAh Lithium Polymer Battery for Medical Device

Product number: 02DQ0027-08

Cell model：554267/2250mAh/3.7V

Battery specification: 554267-2250mAh-3.7V

Nominal voltage：3.7V

Nominal capacity：2250mAh

Charging voltage: 4.2V

Charging current: 450mA

Discharging current: 450mA

End-off voltage: 3V

Internal resistance: ≤200mΩ

Battery weight: 50g

Product dimension: 68.5*42.5*5.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -10～60℃

Storage temperature: -10～45℃

Battery case: label

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: medical device
