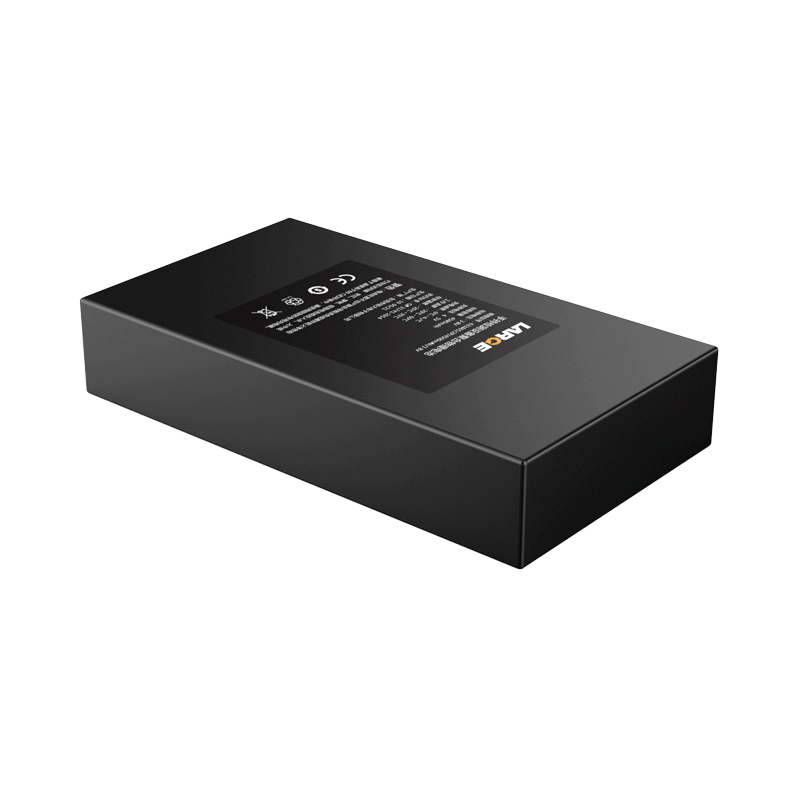

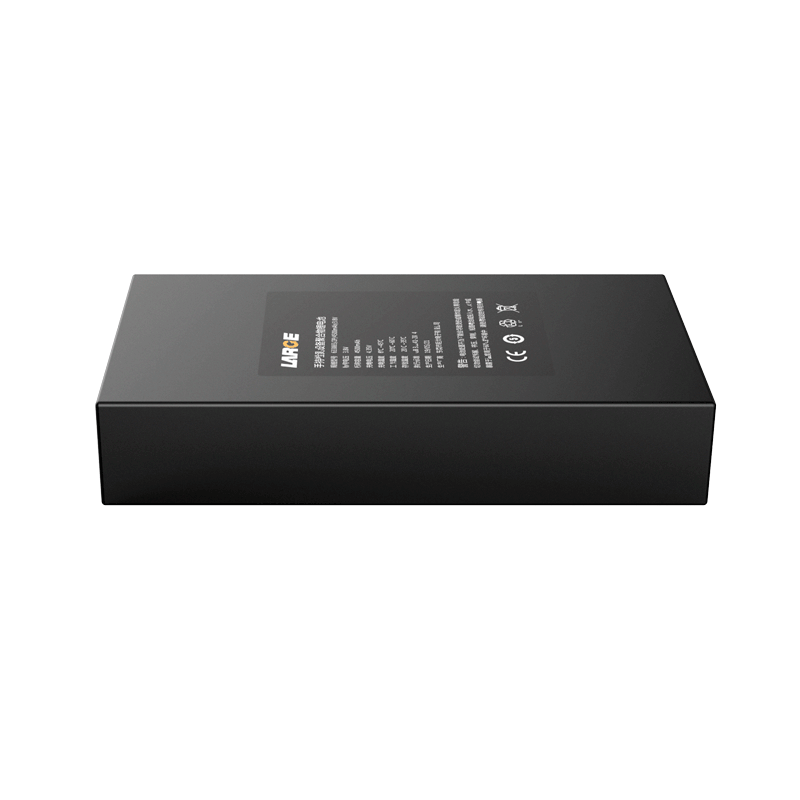

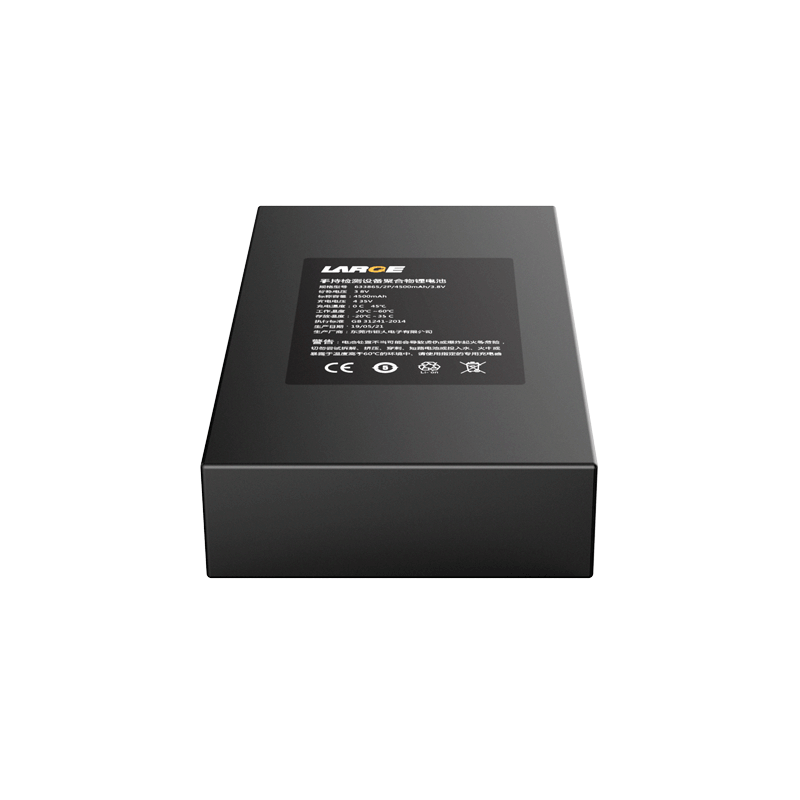

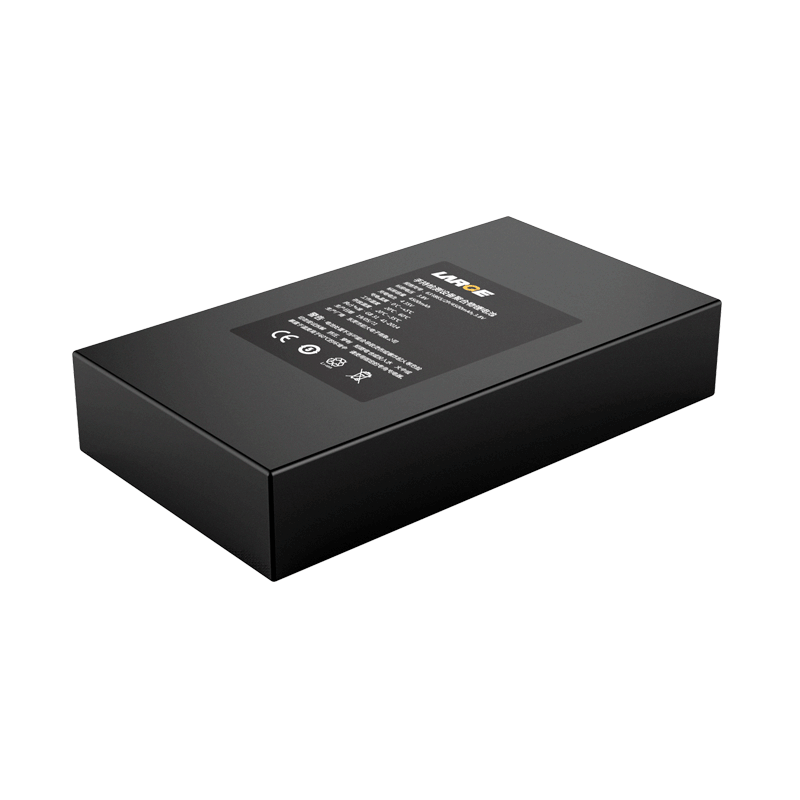

3.8V 2250mAh Polymer Battery for Handheld Equipment

Product number: 01DQ0023-39

Cell model：633865/2250mAh/3.8V

Battery specification: 633865/2P/4500mAh/3.8V

Nominal voltage：3.8V

Nominal capacity：4500mAh

Charging voltage: 4.35V

Charging current: ≤880mA

Discharging current: ≤880mA

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: about 90g

Product dimension: 68.3*38.2*13.0mm（MAX）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35℃

Battery case: PVC

Lithium ion battery protection: overcharge protection, over-discharge protection and discharge overcurrent protection, discharge short-circuit protection.

Application field: handheld equipment
