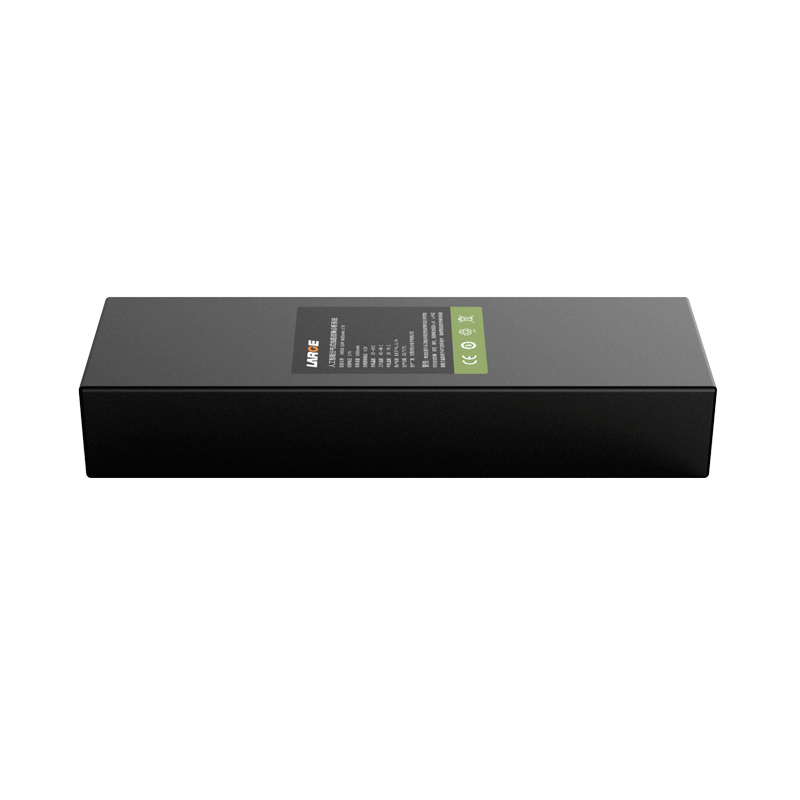

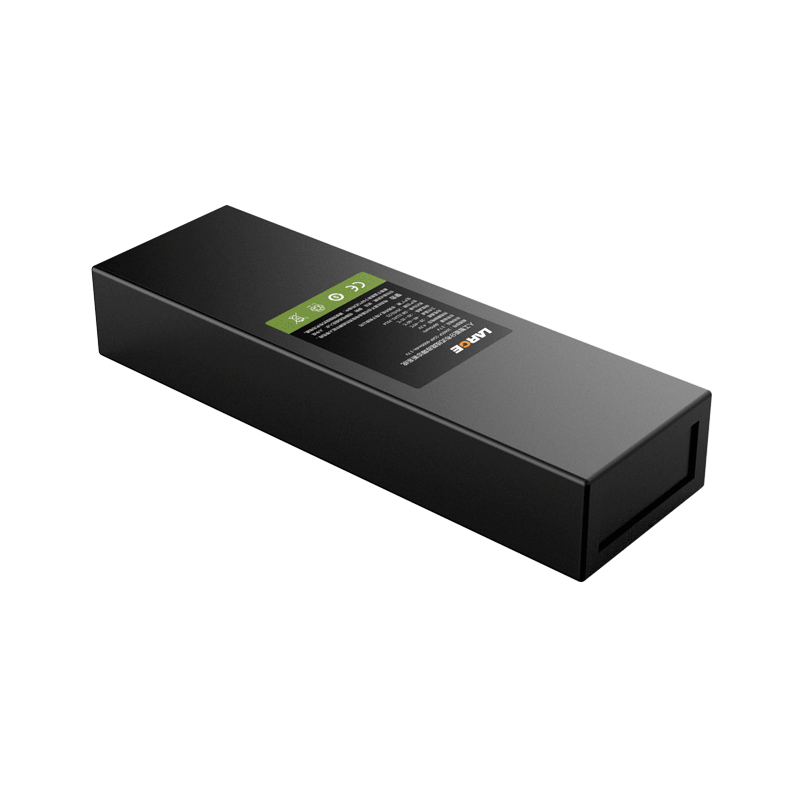

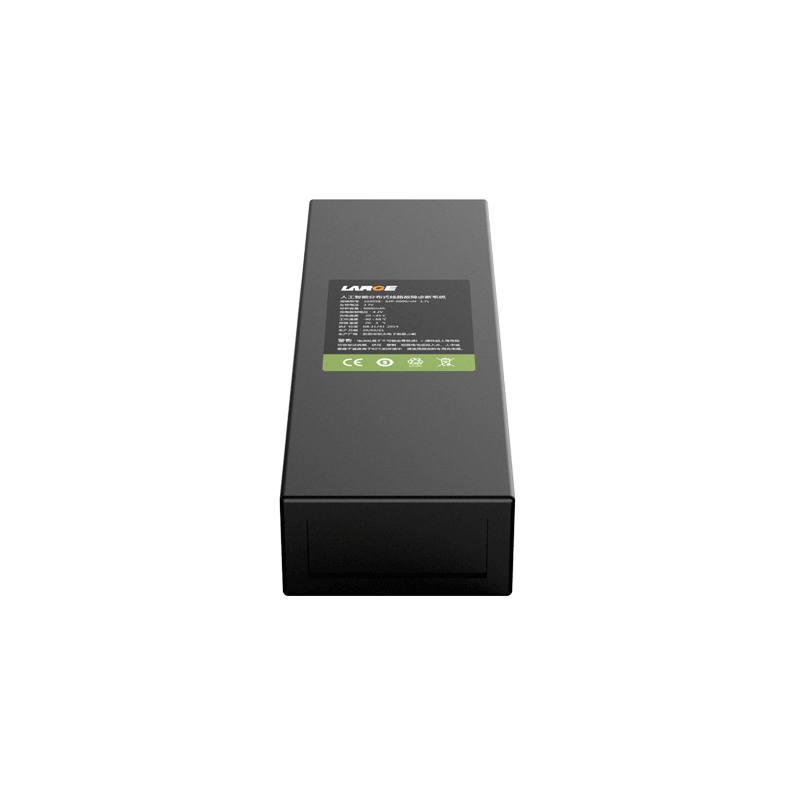

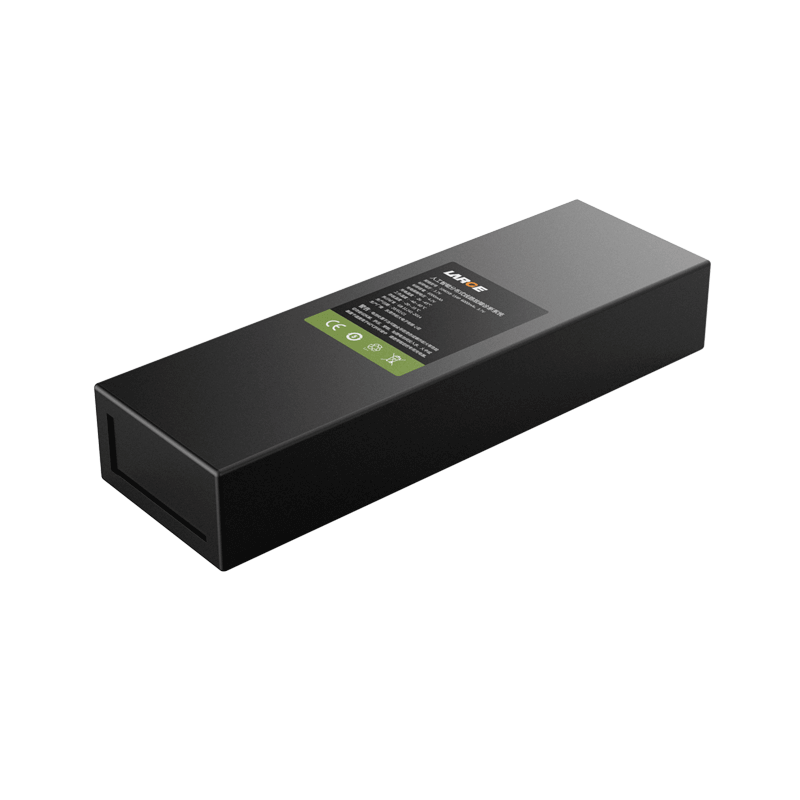

6000mAh 3.7V Low Temperature Battery Lithium Polymer Battery for AI Distributed Line Fault Diagnose System

Product number: 04EQ237-02

Cell model：104058-1500mAh-3.7V

Battery specification: 104058-1S4P-6000mAh-3.7V

Nominal voltage：3.7V

Nominal capacity：6000mAh

Charging voltage: 4.2V

Charging current: ≤3A

Discharging current: 1.2A

Instantaneous discharge current: 3A

End-off voltage: 2.5V

Internal resistance: ≤180mΩ

Battery weight: 192g

Product dimension: 128*42.5*22mm（Max）

Charging temperature：-20～45℃

Discharging temperature: -40～60 ℃

Storage temperature: -20～35℃

Battery package: blue PVC shrink film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and ESD protection.

Application field: portable line fault diagnose system, low temperature charge and discharge special equipment

Product features

Blue PVC heat shrink film package is simple and reliable, and is easy to install.

Connector plug outlet: JST plug output mode is adopted to increase conductive reliability.

The lithium battery can discharge at low temperature -40℃.

The lithium battery can charge at low temperature -20℃.

Battery management: adopt imported protective chip, which has good stability, high precision monitoring and accurate control with ESD protection and temperature protection, so as to eliminate the security risks.

The battery pack has good security and nice low temperature discharge performance. It can charge at low temperature, for example, charge at -40℃ over 50% power.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
