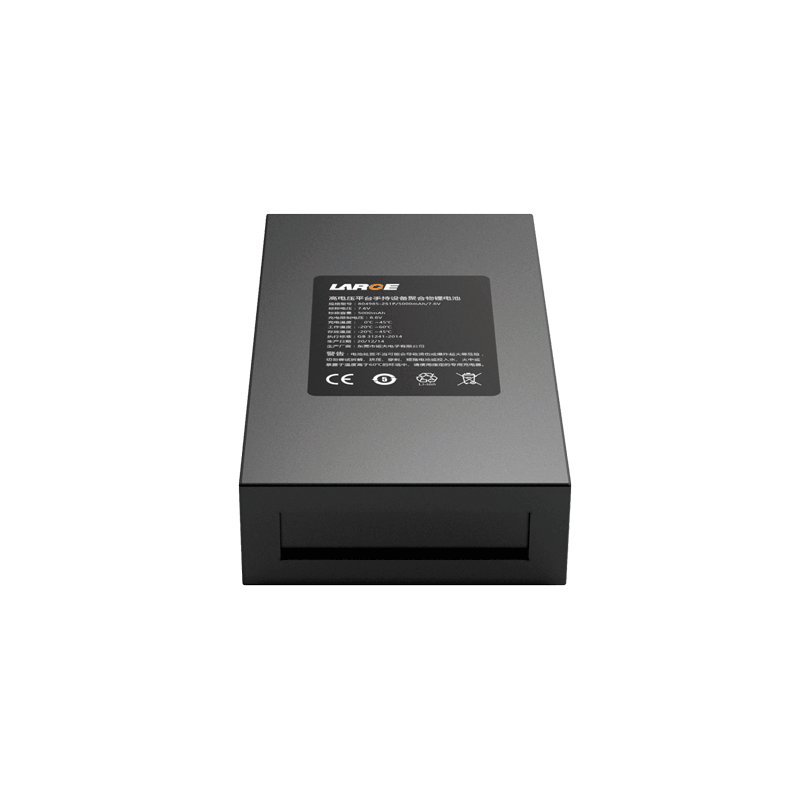

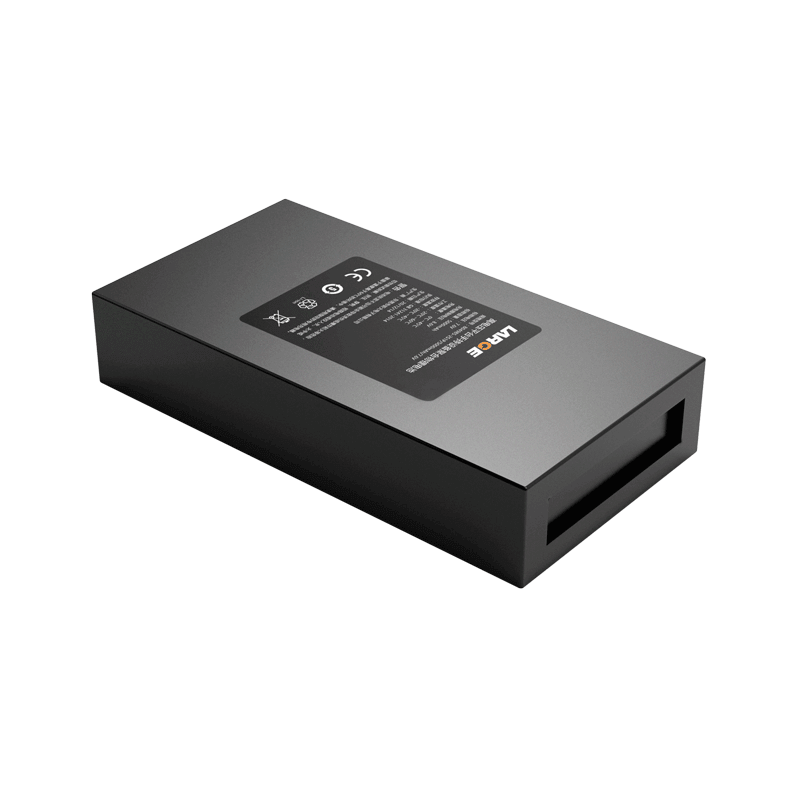

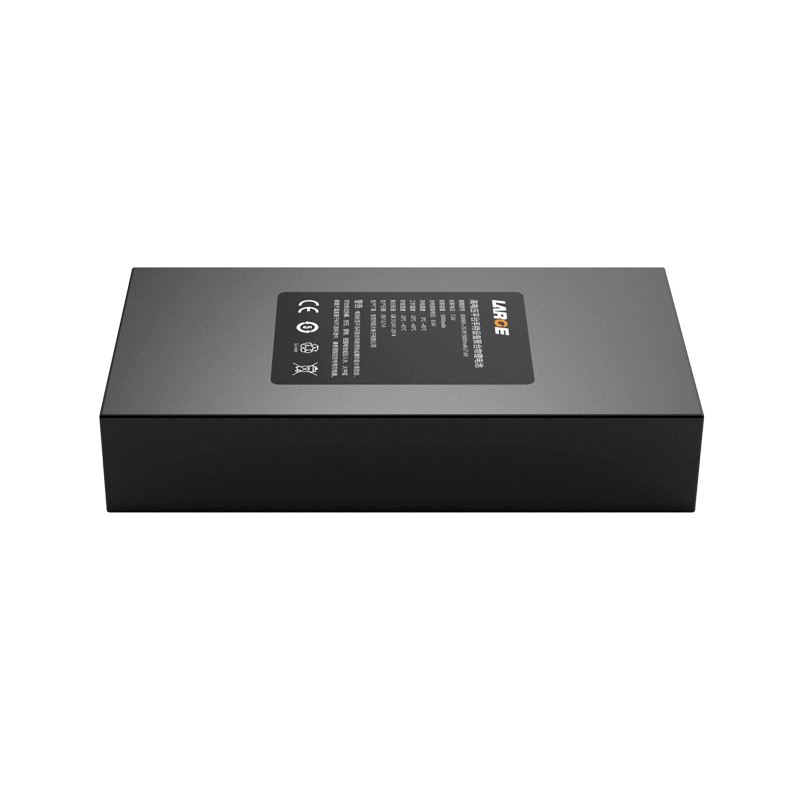

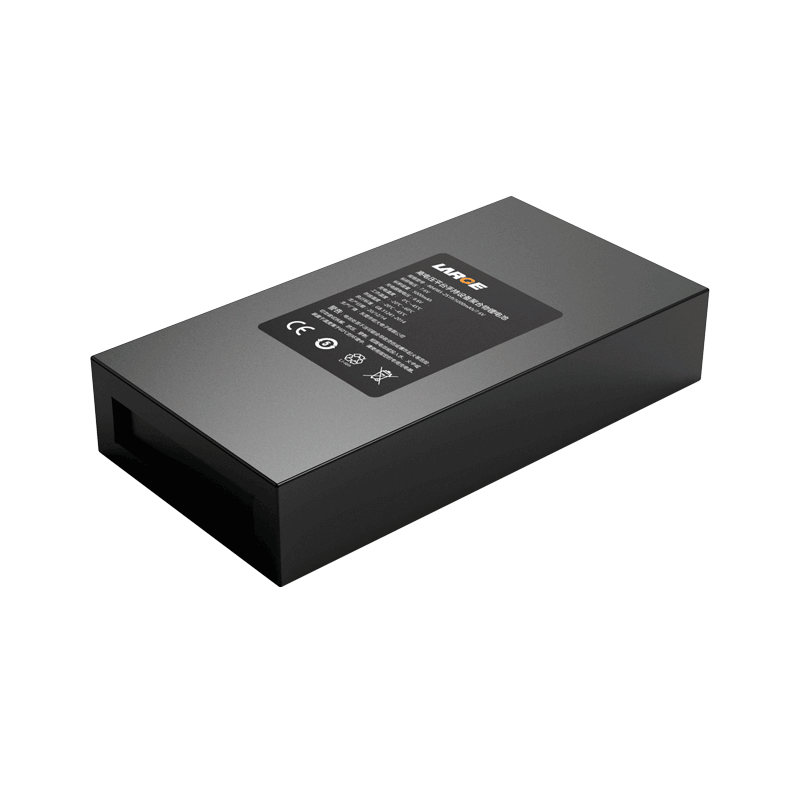

804985 7.6V 5000mAh Lithium Polymer Battery for Handheld Device

Project number : 33DZ019-01

Cell model: 804985/5000mah /3.8V

Battery specification: 804985-2S1P/5000mAh/7.6V

Nominal voltage: 7.6V

Nominal capacity: 5000mAh

Charging voltage: 8.6V

Charging current: ≤ 2.5A

Discharge current: 2.5A

Instantaneous discharge current: 4-10A

Discharge cut-off voltage: 6V

Finished product internal resistance: 200 m or less Ω

Battery weight: 152G

Product dimension: 21×50×95mm (Max)

Charging temperature: 0 ~ 45℃

Discharging temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: PVC

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,SMBUS communication, etc.

Application: handheld terminal batteries
