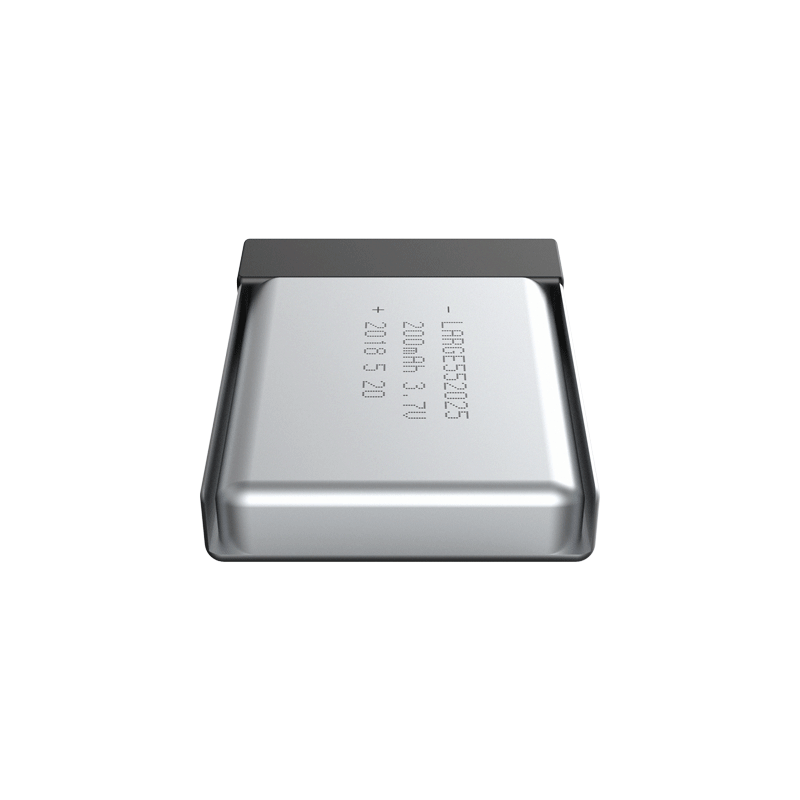

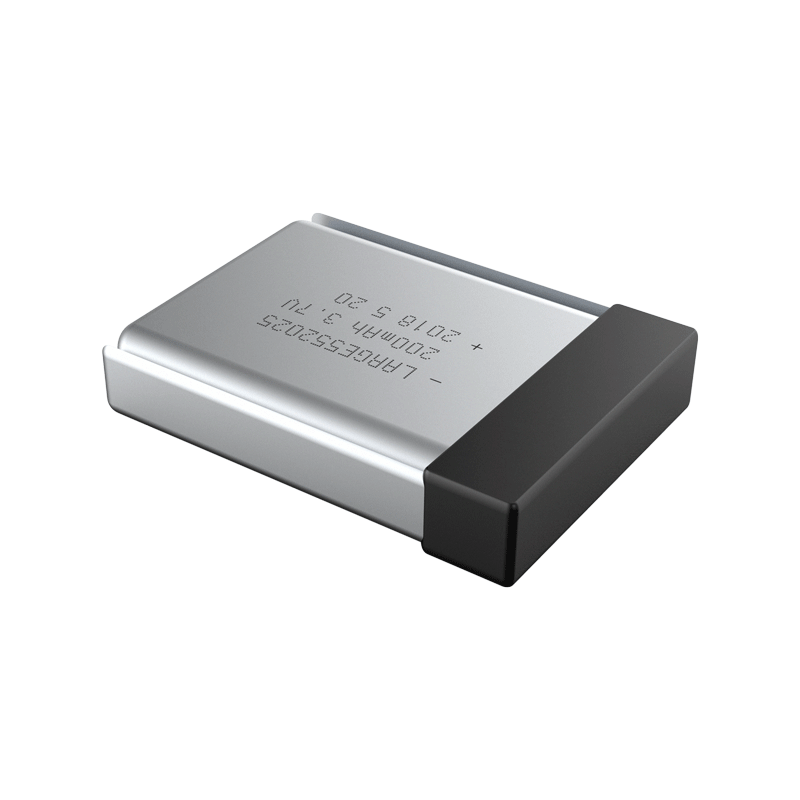

3.7V 200mAh Lithium Ion Battery for Special Instruments

3.7V 200mAh Lithium Ion Battery for Special Instruments

Product number: 05BQ1430-02

Cell model：552025/3.7V/200mAh

Battery specification: 552025-1S1P/3.7V/200mAh

Nominal voltage：3.7V

Nominal capacity：200mAh

Charging voltage: 4.2V

Charging current: ≤100mA

Discharging current: 100mA

Instant discharging current: 0.2A

End-off voltage: 3.0V

Internal resistance: ≤260mΩ

Battery weight: 7g

Product dimension: 27.5*20.6*5.7mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: high temperature tape

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: special instruments, test and control instrument
