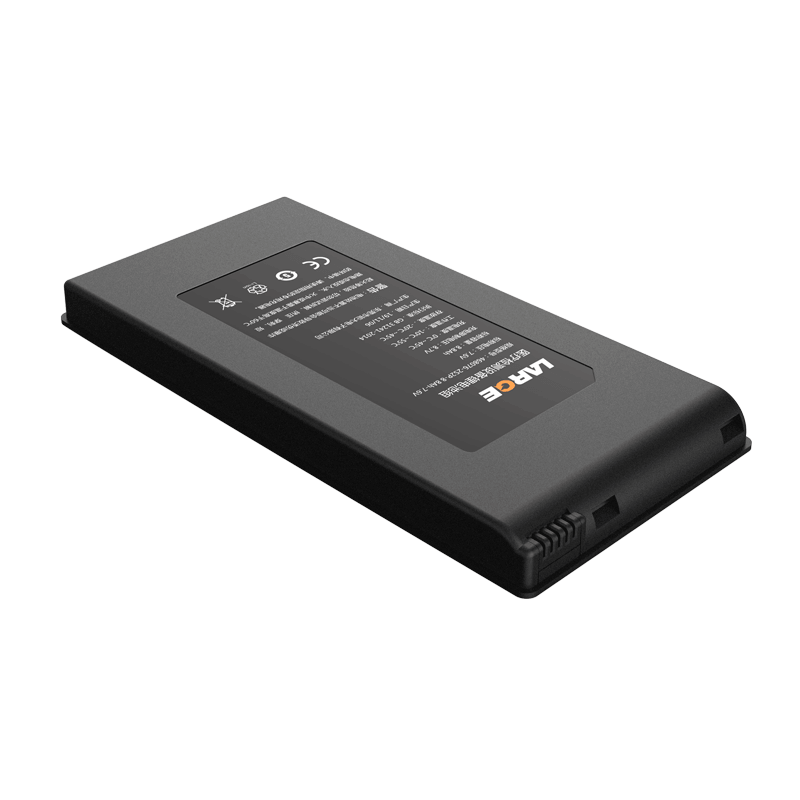

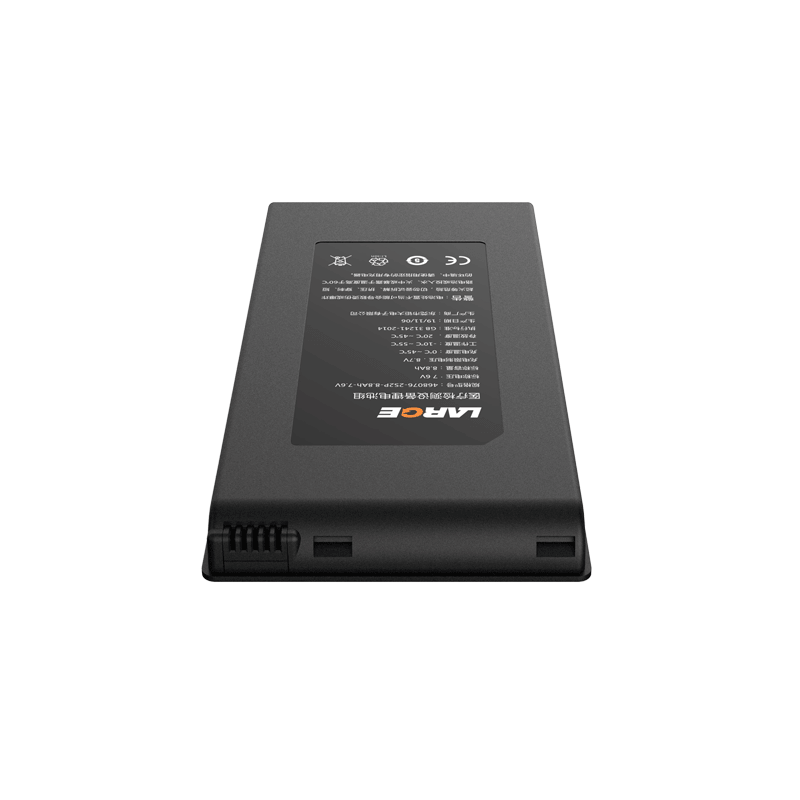

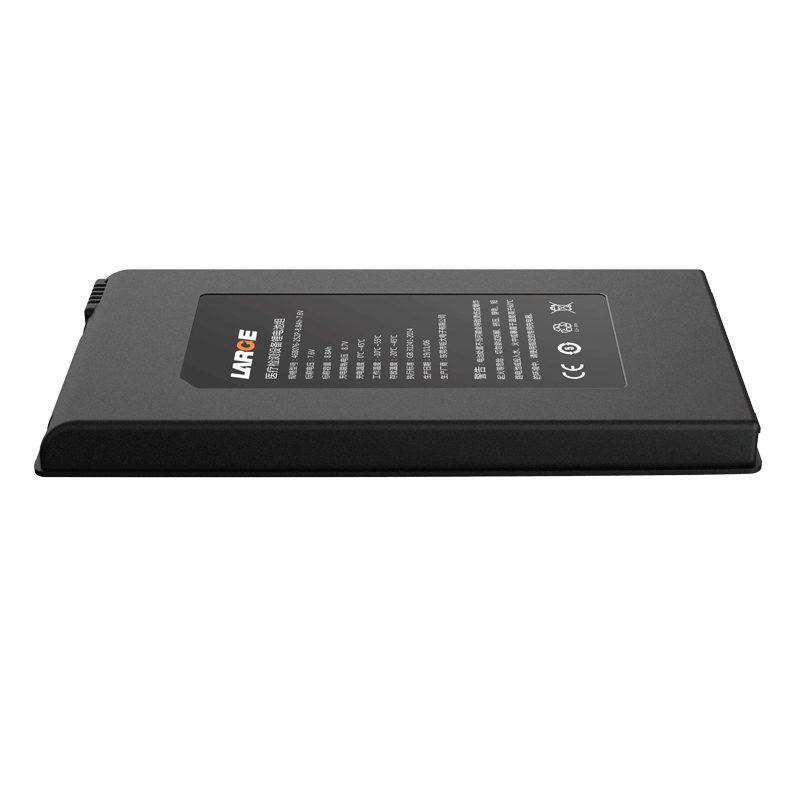

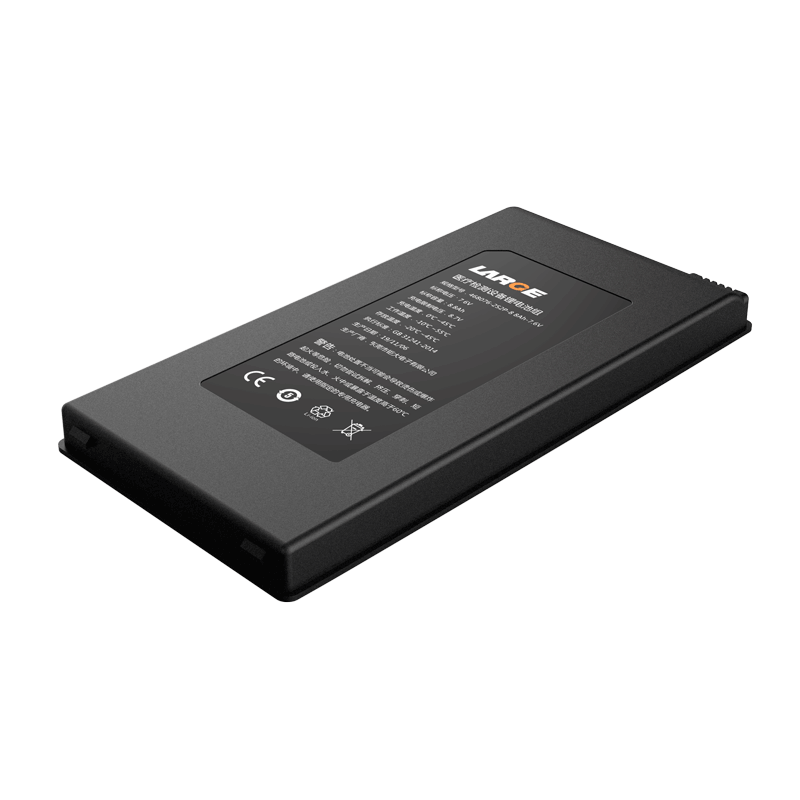

468076 7.6V 8.8Ah Lithium Polymer Battery for Medical Assistance Electronic Loupe

Product number: 41DZ003-06

Cell model：468076PLV-4.35V-4400mAh

Battery specification: 468076-2S2P-8.8Ah-7.6V

Nominal voltage：7.6V

Nominal capacity：8.8Ah

Charging voltage: 8.7V

Charging current: ≤4.5A

Discharging current: 4A

Instant discharging current: 4A

End-off voltage: 6V

Internal resistance: ≤150mΩ

Battery weight: 300g

Product dimension: 175.66*86.66*14.15mm

Charging temperature：0～45℃

Discharging temperature: -10～55℃

Storage temperature: -20℃～45℃

Battery case: technical grade

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: outdoor monitoring, medical equipment, magnifying glass

Product features

Current: It can keep discharging in 4A at maximum.

Data communication management: adopt imported protective chip, imported MOS with 10KNTC, which can transmit temperature changing to eliminate the security risks greatly.

Cell characteristics: use self-developed ultra-high capacity polymer cell.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
