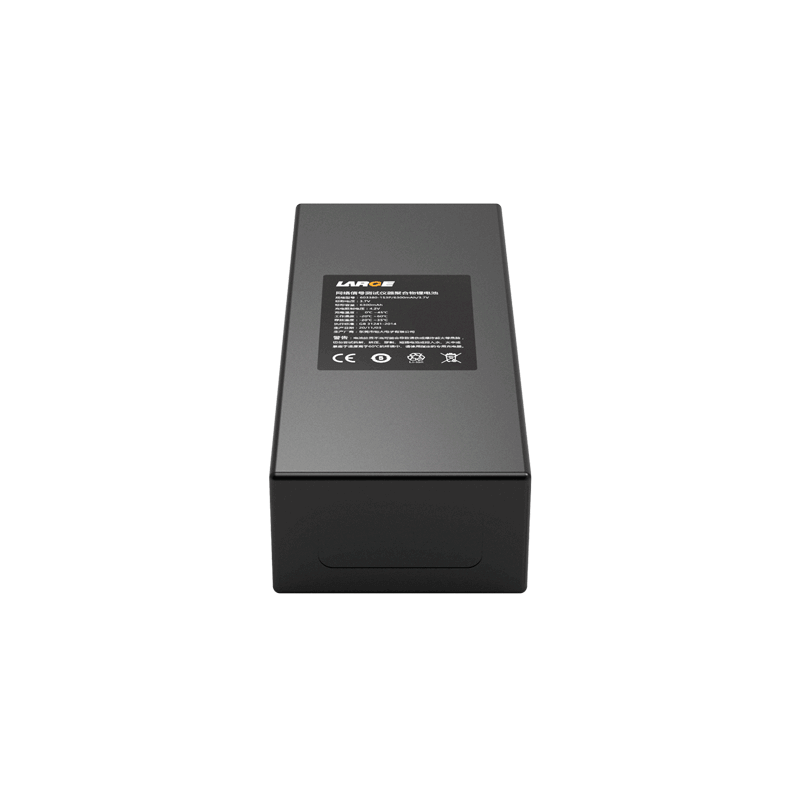

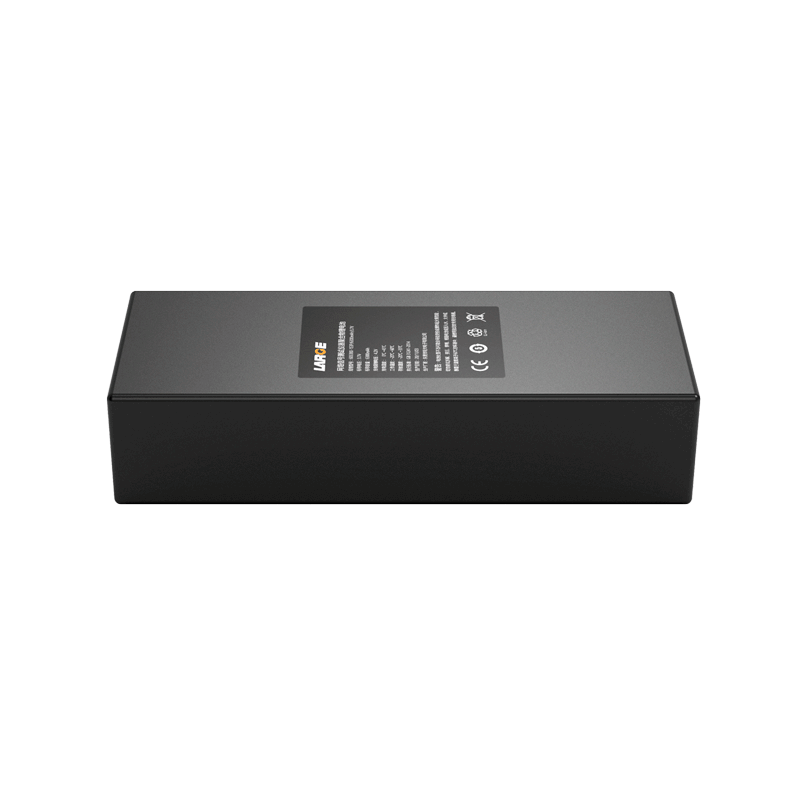

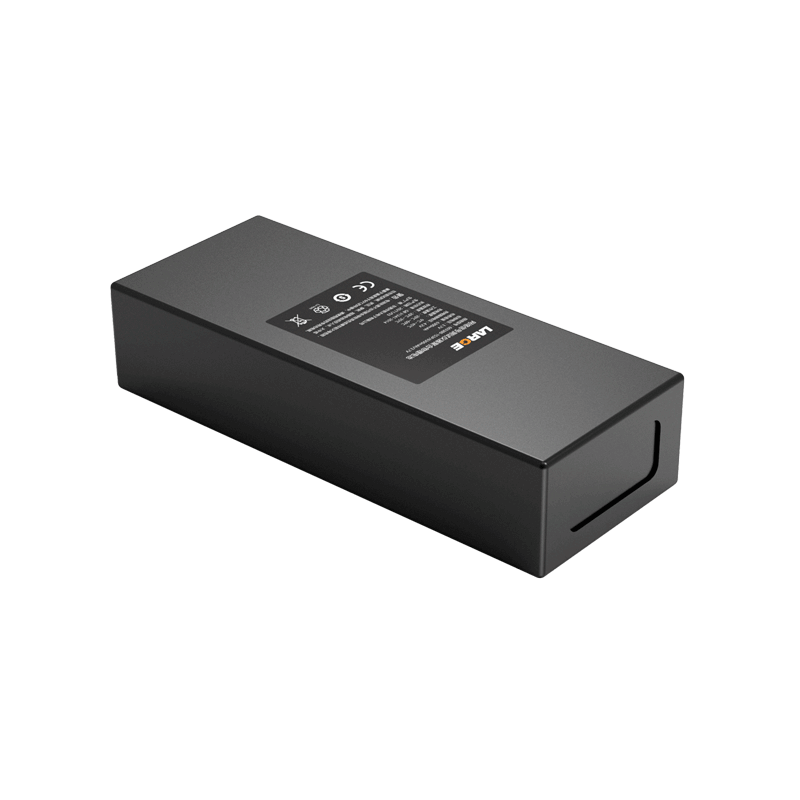

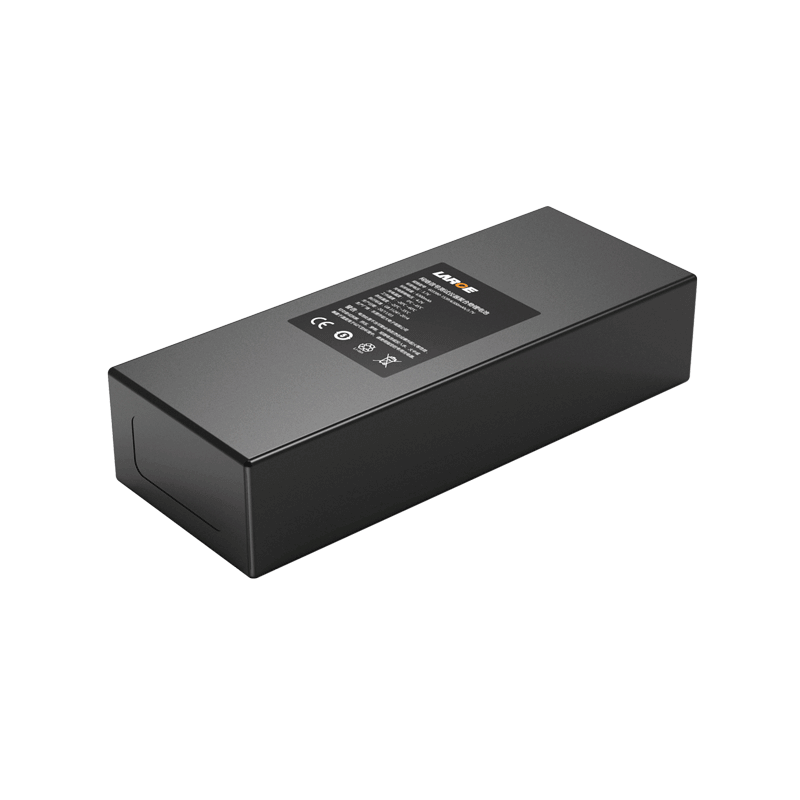

3.7V 6300mAh Lithium Polymer Battery for Network Signal Testing Instrument

Product number: 01WQ0037-20

Cell model：603380-2100mAh-3.7V

Battery specification: 603380-1S3P/6300mAh/3.7V

Product dimension: 86×34×19mm（Max）

Nominal voltage：3.7V

Nominal capacity：6300mAh

Charging voltage: 4.2V

Charging current: ≤3A

Discharging current: ≤3A

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: 140g

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35 ℃

Battery case: PVC heat shrinkable film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, ESD protection, etc.

Application field: network signal testing instrument, portable handheld terminal test equipment

Product features

1. Black PVC shrinkable film is reliable, and is easy to assemble.

2. Output terminal: Adopt UL connector output mode of national standard to increase the conductivity reliability;

3. Battery protection management: Adopt imported Seiko protection chip with good stability, high precision monitoring and precise control, which has maximum elimination of safety hazards.

4. The battery pack has good safety, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
