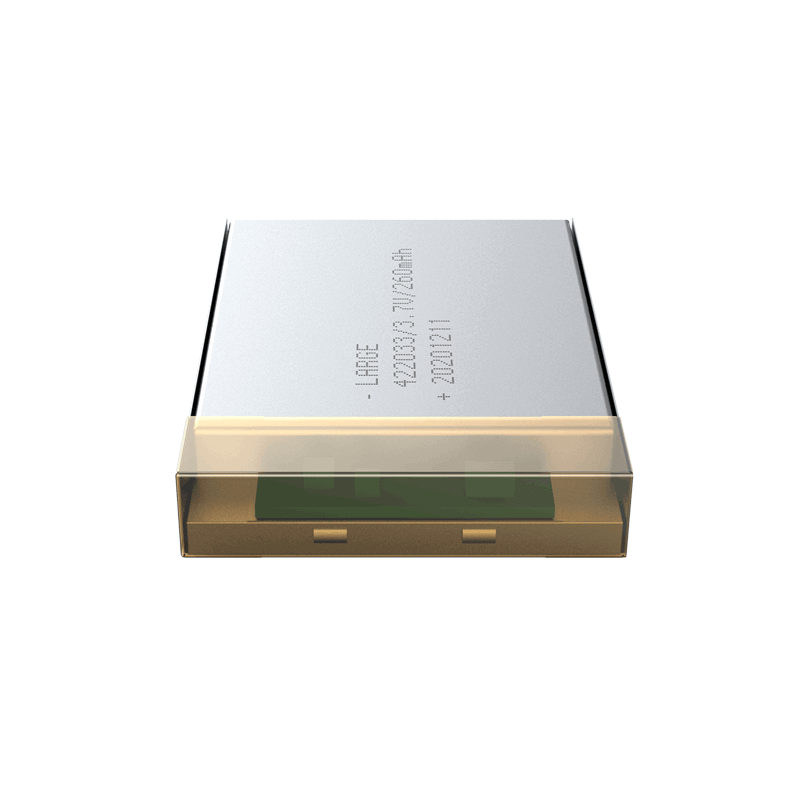

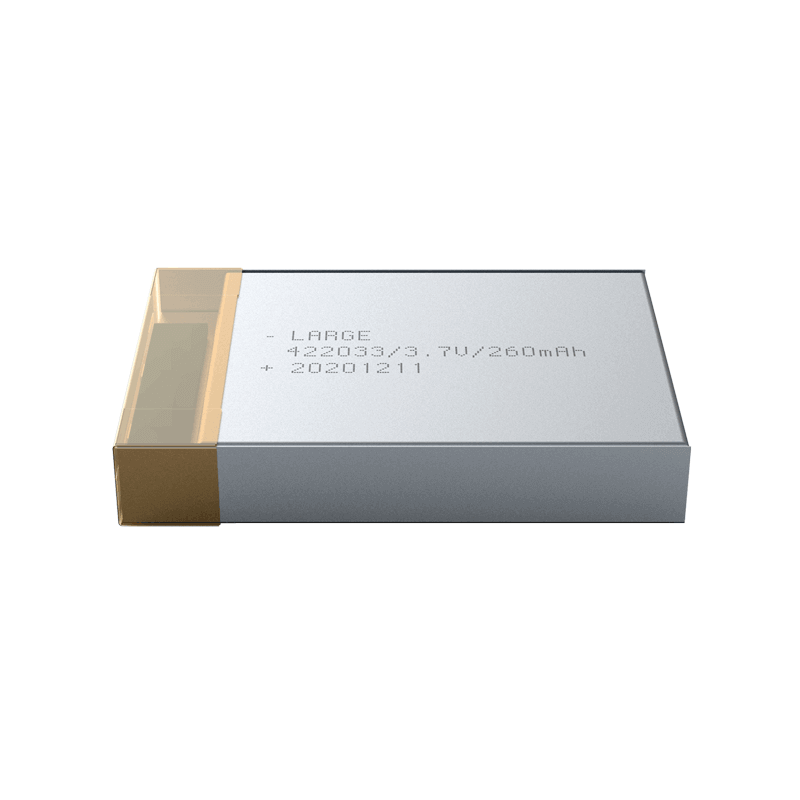

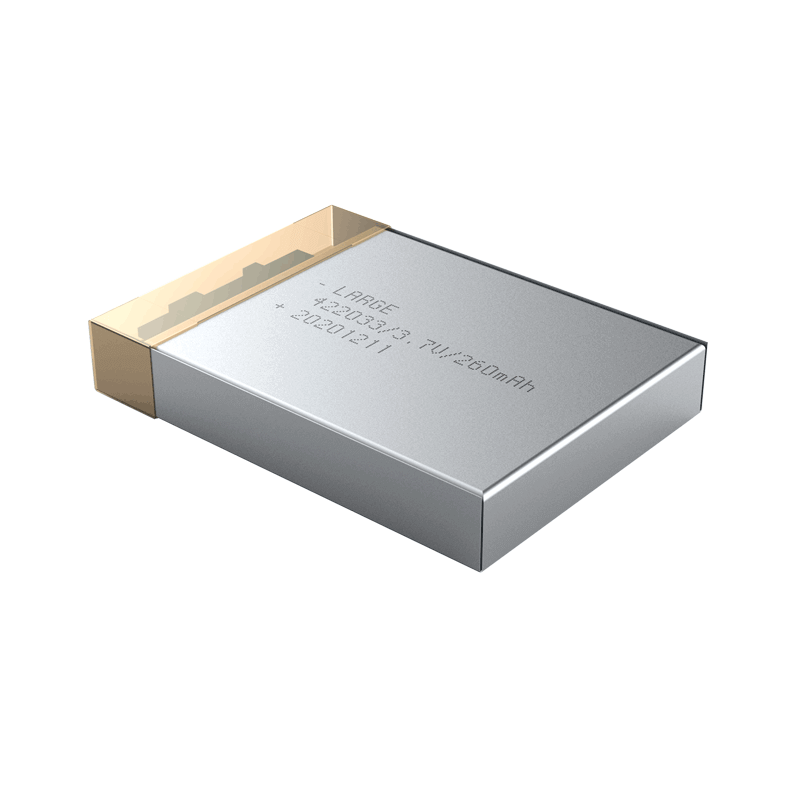

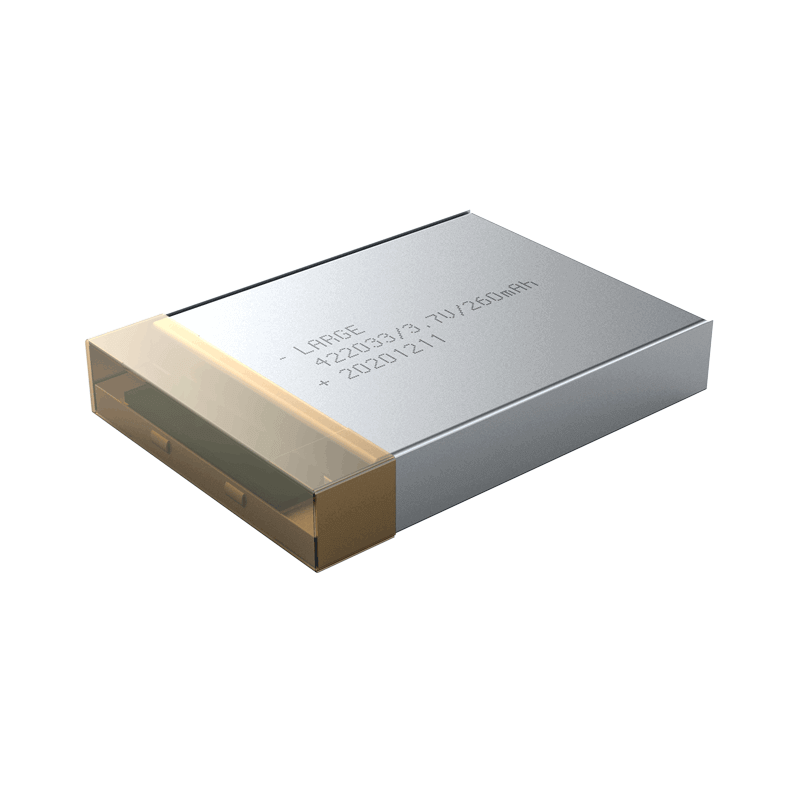

422033 3.7V 260mAh Lithium Polymer Battery for Wearable Low-frequency Instrument

Product Number: 00BQ0002-01

Cell model: 422033-260MAa-3.7V

Battery specification: 422033-1S1P-260MAa-3.7V

Product dimension: 35×20.5×4.2mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 260mAh

Charging voltage: 4.2V

Charging current: ≤260mA

Discharge current: ≤260mA

Discharge cut-off voltage: 3.0V

Finished product internal resistance: 280 mΩ or less

Battery weight: 16G

Charging temperature: 0～45℃

Discharge temperature: -20～60℃

Storage temperature: -20～35℃

Battery case: simple package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Handheld devices, power module, portable devices
