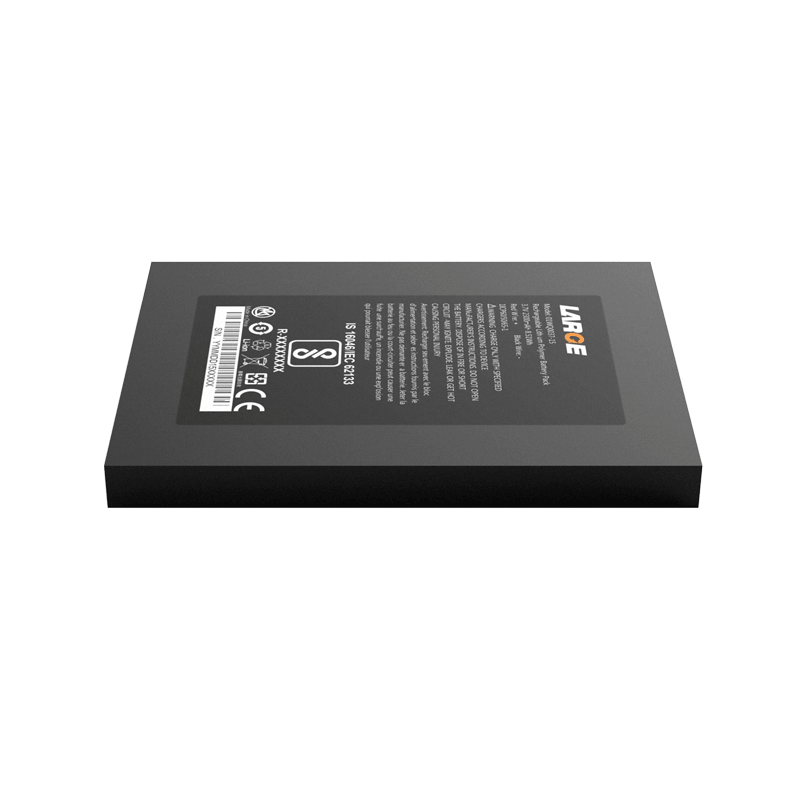

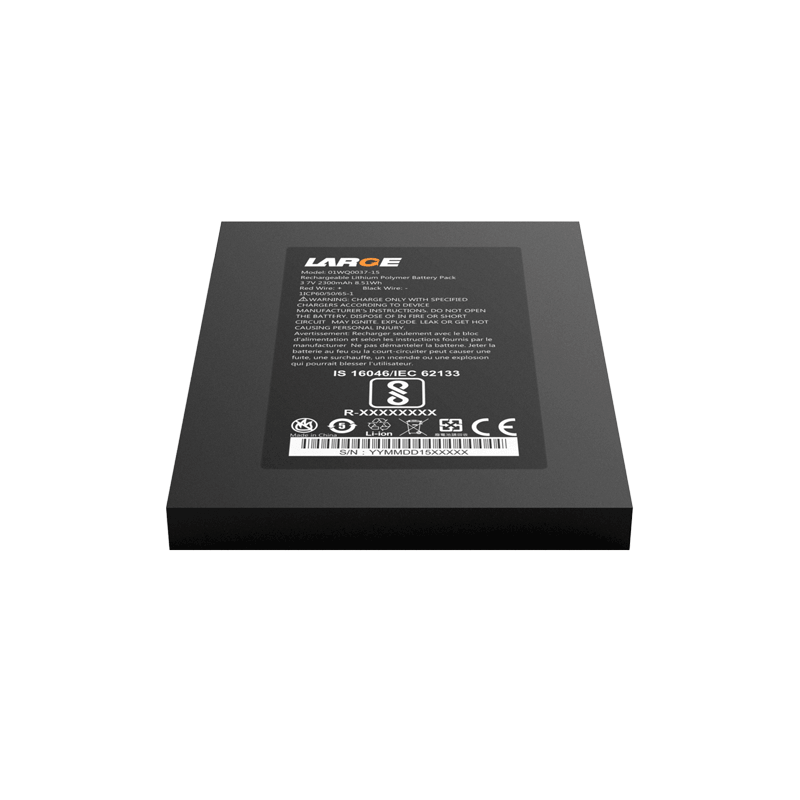

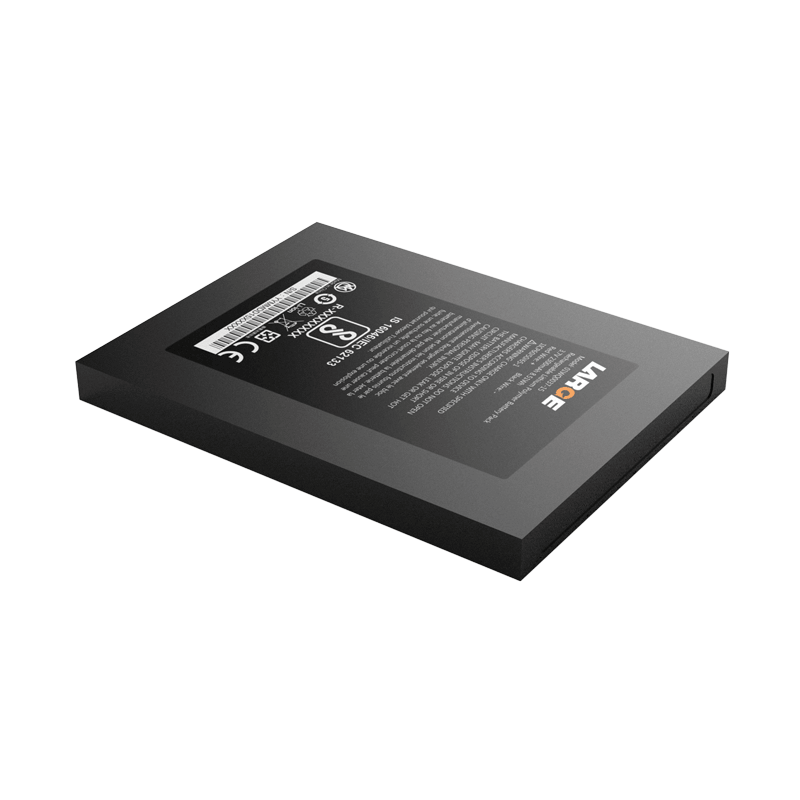

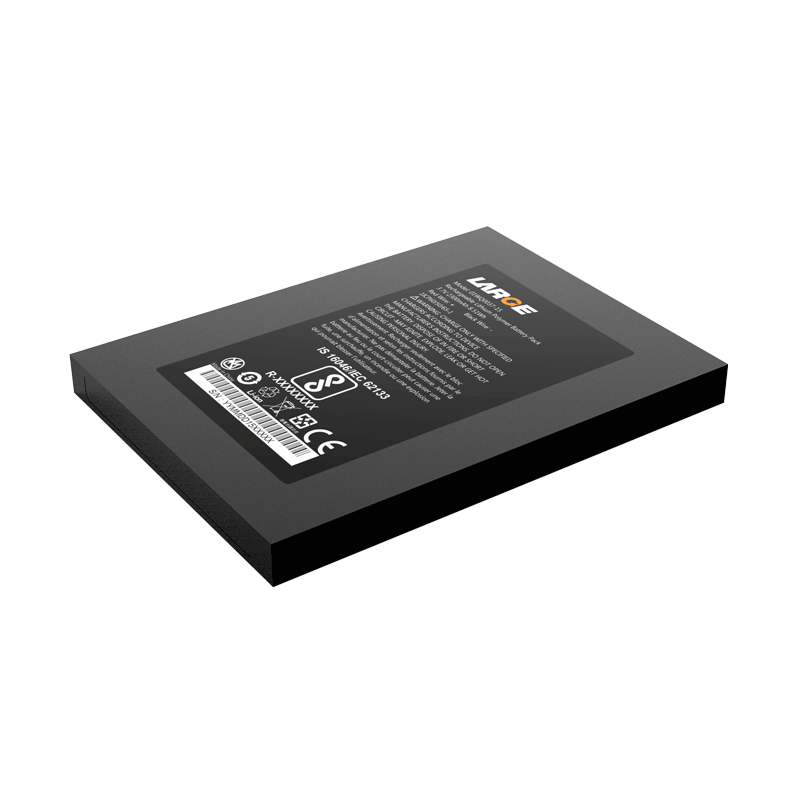

555065 3.7V 2300mAh Polymer Battery for Network Signal Tester

Product number: 01WQ0037-15

Cell model：555065/2300mAh/3.7V

Battery specification: 555065/2300mAh/3.7V

Nominal voltage：3.7V

Nominal capacity：2300mAh

Charging voltage: 4.2V

Charging current: ≤1150mA

Discharging current: ≤2500mA

End-off voltage: 3.0V

Internal resistance: ≤200mΩ

Battery weight: about 55g

Product dimension: 69*51.5*6.2mm（MAX）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: PVC

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short circuit protection.

Application field: Network signal tester
