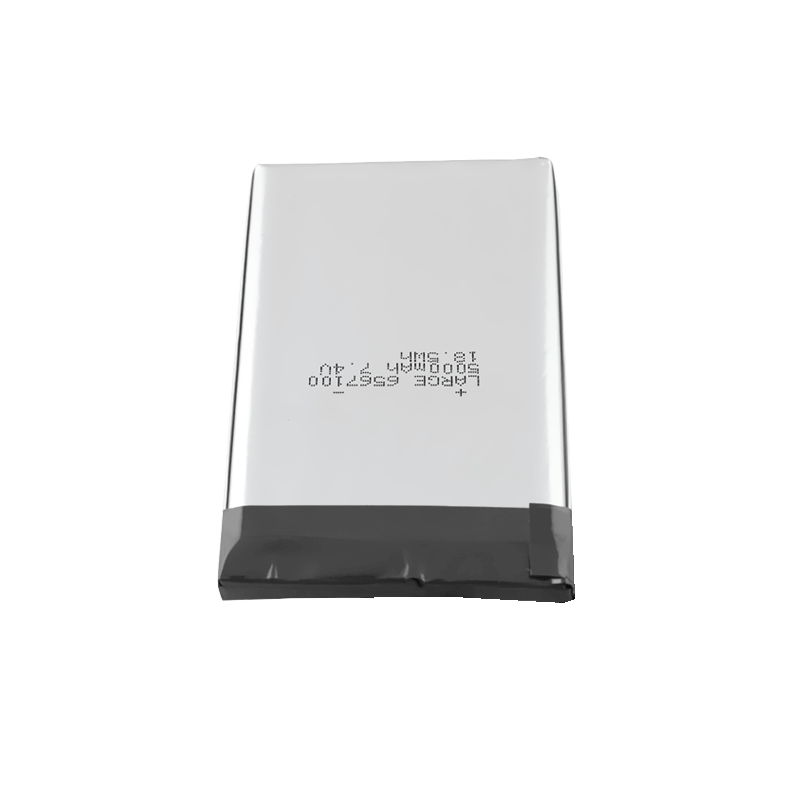

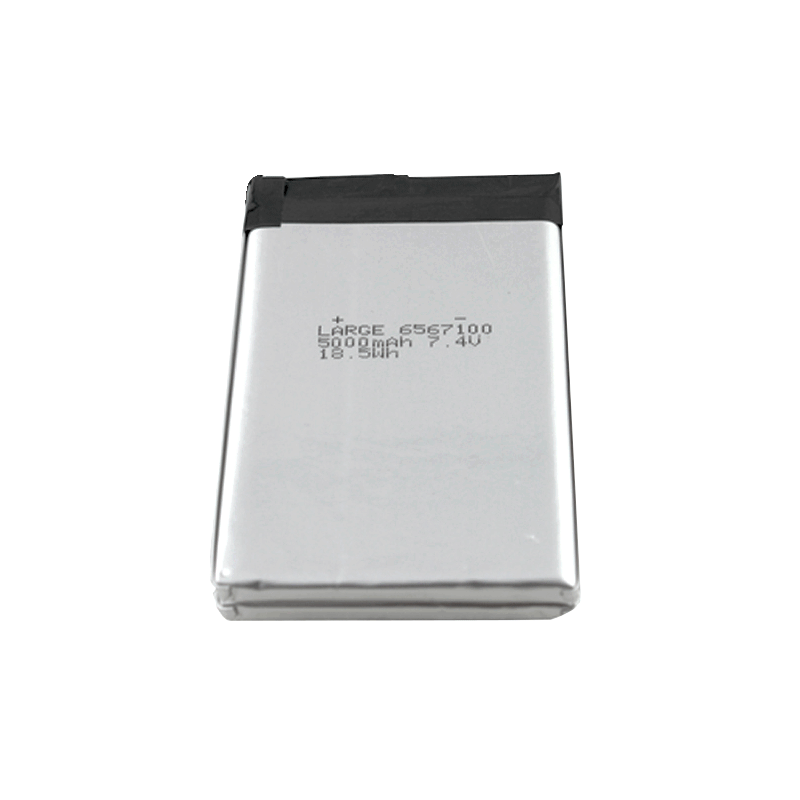

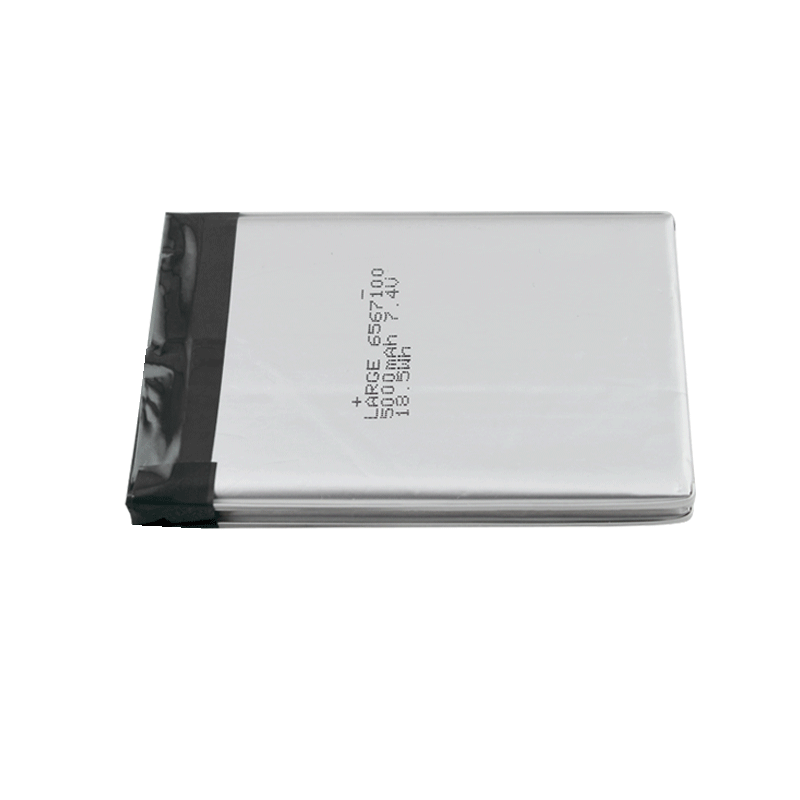

7.4V 5000mAh 6567100 Lithium Polymer Battery Lithium Cobalt Acid Battery

Project number : 08AQ543-02

Combination mode: PL6567100-2S1P

Nominal voltage: 7.4V

Operating voltage: 6~8.4V

Nominal capacity: 5000mAh

Standard continuous discharge current: 0.2C

Maximum continuous discharge current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 13.3*67*102mm

Finished product internal resistance: 150 mΩ or less

Lead model: UL1007/20# red and black, line length: 100mm
