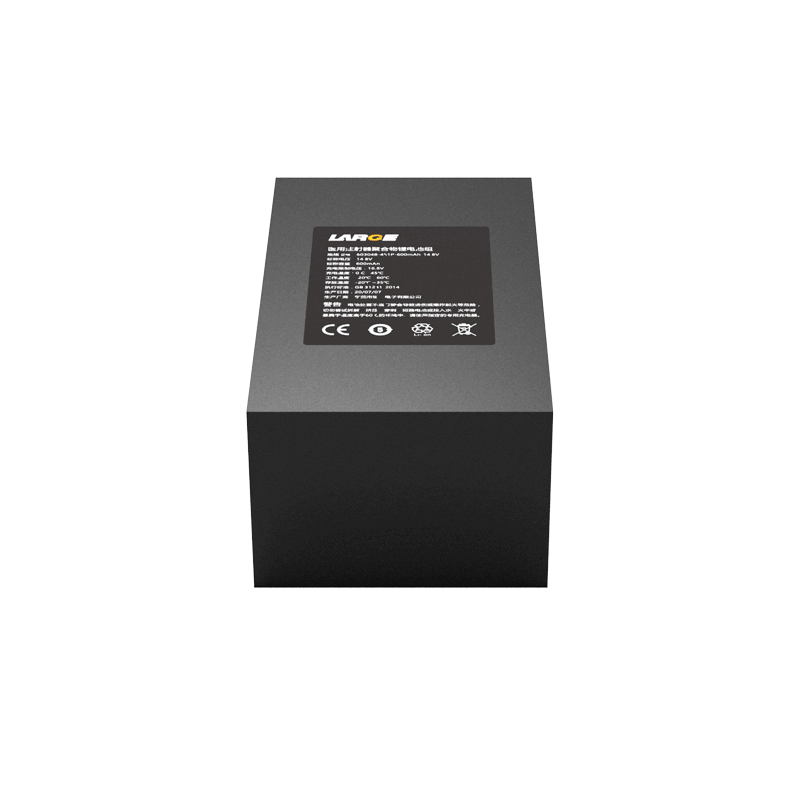

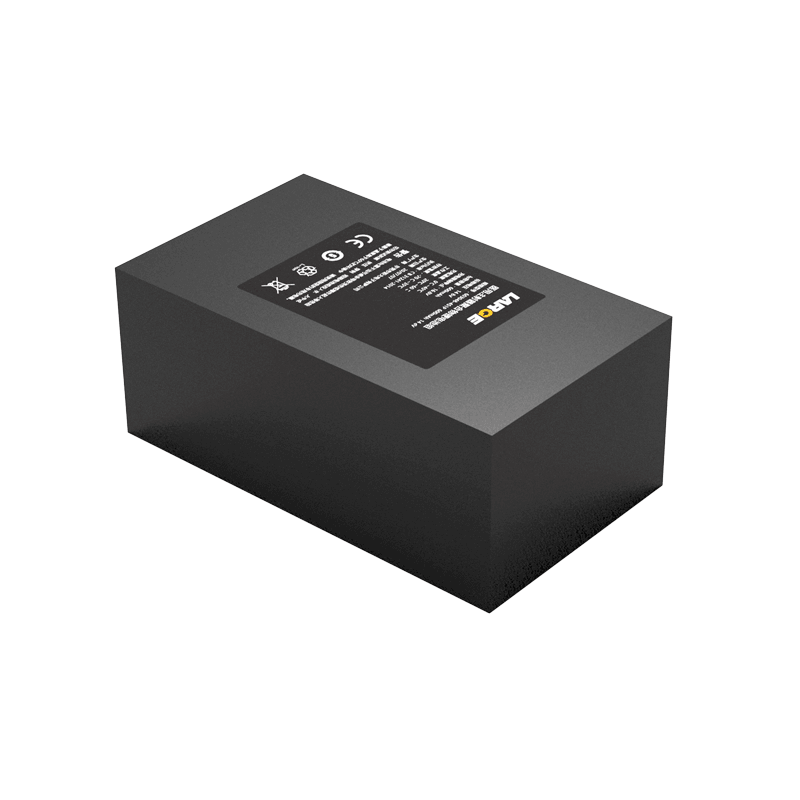

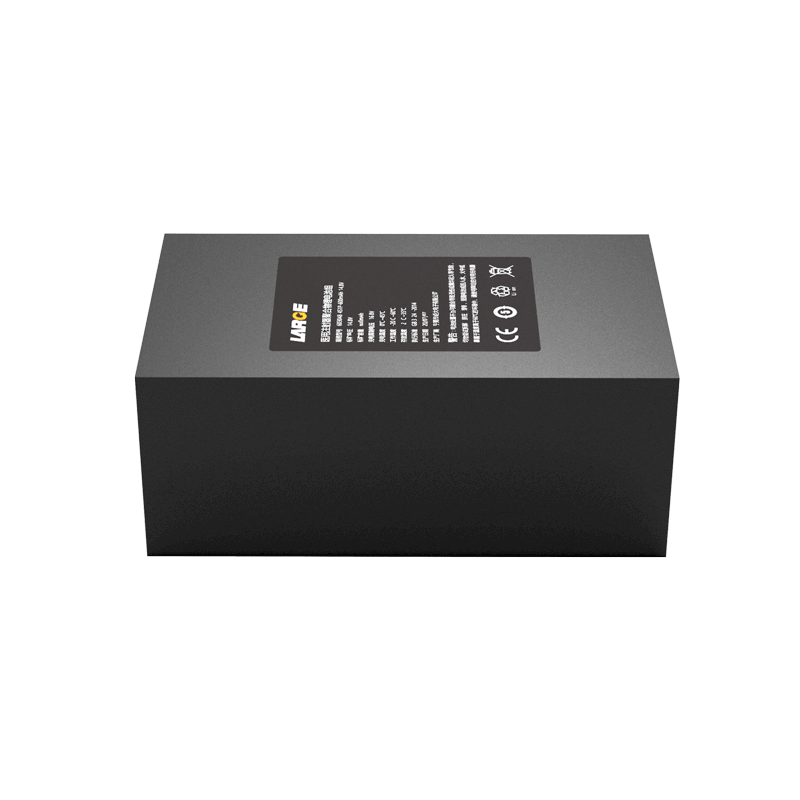

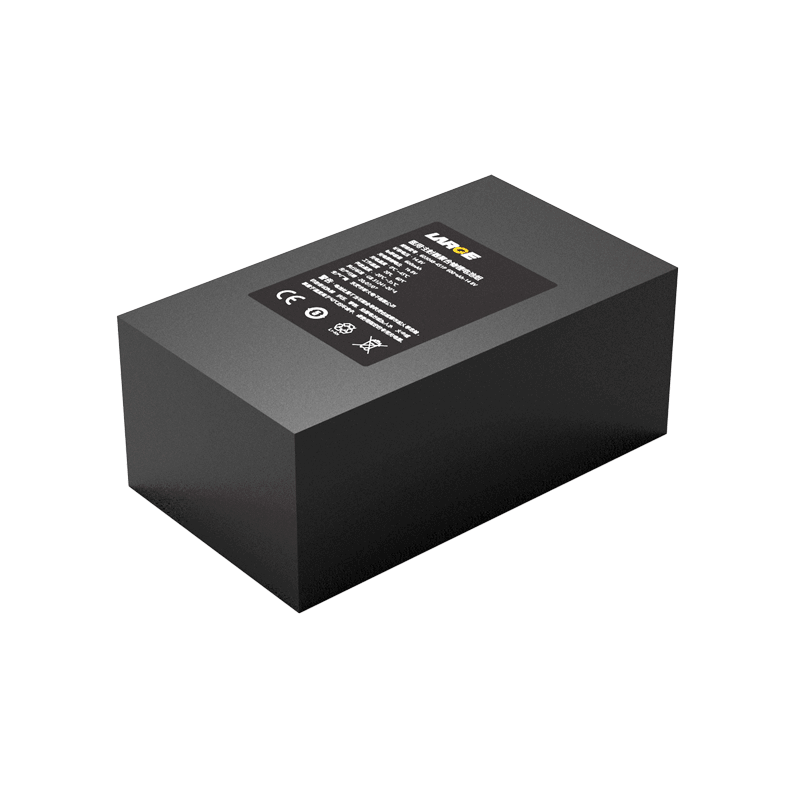

14.8V 600mAh Lithium Polymer Battery Pack For Medical Syringe

Product number: 05DQ0045-01

Cell model：603048-600mAh-3.7V

Battery specification: 603048-4S1P-600mAh-14.8V

Product dimension: 60*34*25mm（Max）

Nominal voltage：14.8V

Nominal capacity：600mAh

Charging voltage: 16.8V

Charging current: ≤0.6A

Discharging current:120mA

Instant discharging current: 20A

End-off voltage: 12.0V

Internal resistance: ≤80mΩ

Battery weight: 80g

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35℃

Battery case: PVC heat shrink film

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, temperature protection, over current protection, ESD protection

Application field: portable medical equipment, medical syringe

Product features

1.PVC heat shrinkable film package is simple, reliable and easy to install.

2.Connector plug output: xt30 plug output mode is adopted to increase the conductive reliability of the plug, and the gold-plated hardware terminal output mode is used to increase the conductive reliability.

3.Battery protection management: It adopts special lithium battery protection chip with high stability, high precision monitoring, precise control and temperature protection, so as to eliminate potential safety hazards to the maximum extent.

4.The battery pack has good security, nice low-temperature discharge performance, high rate, supports 30C rate discharge, and the discharge capacity reaches more than 90%.

5.The battery pack has good security, nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
