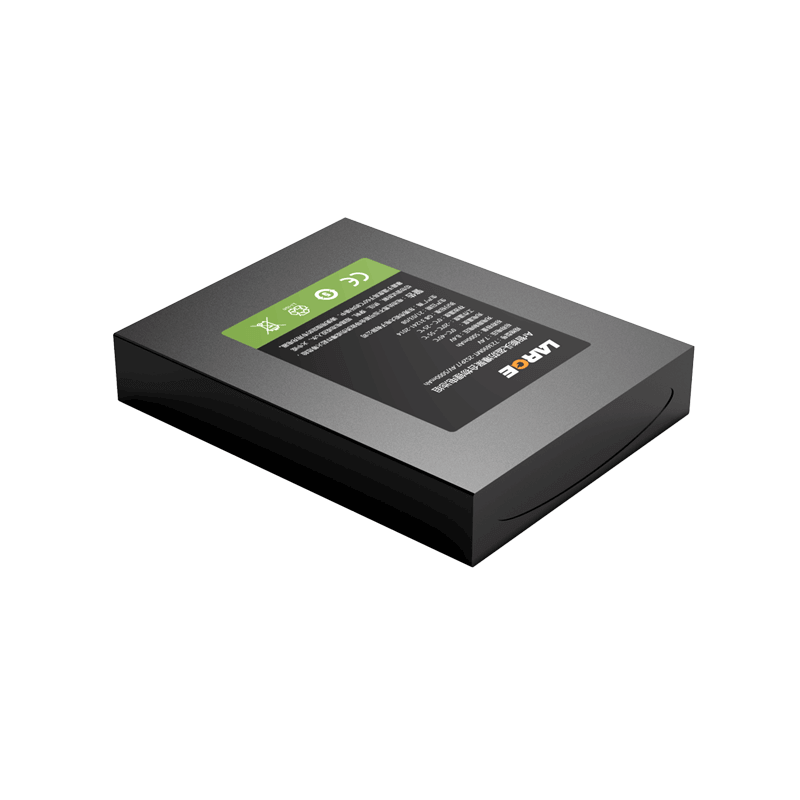

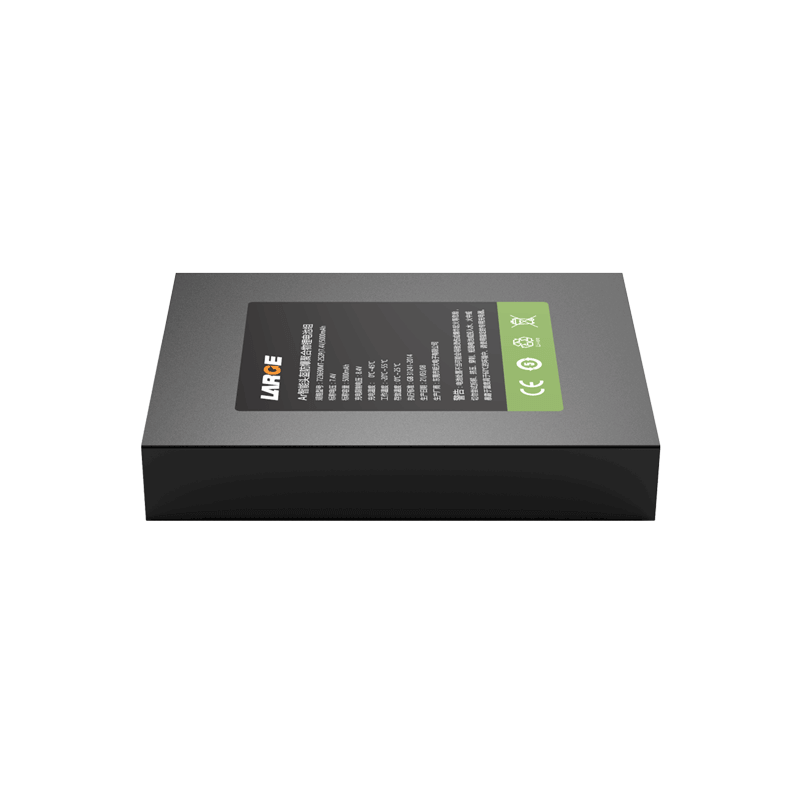

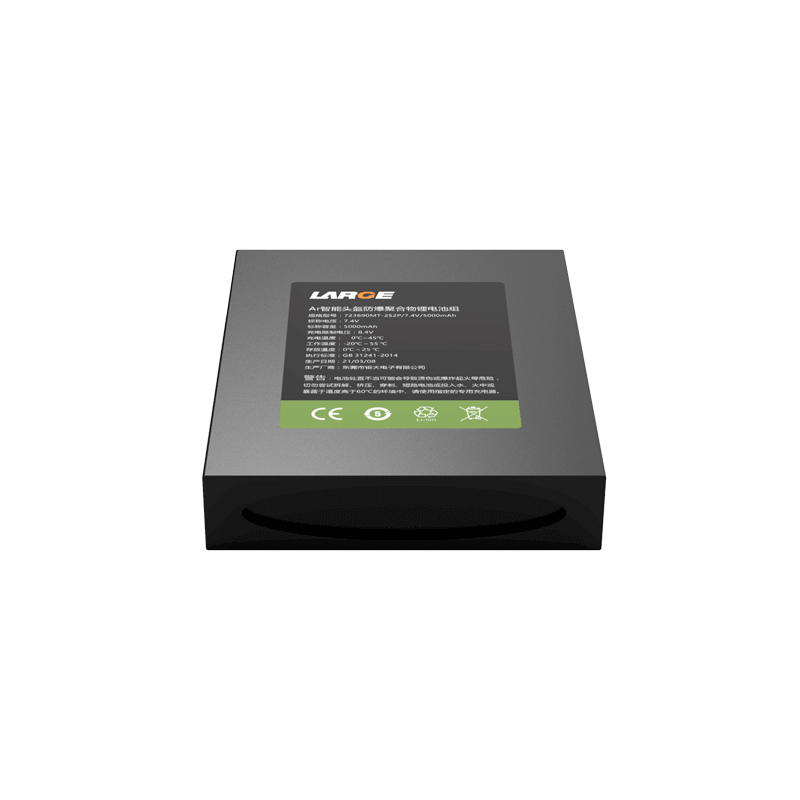

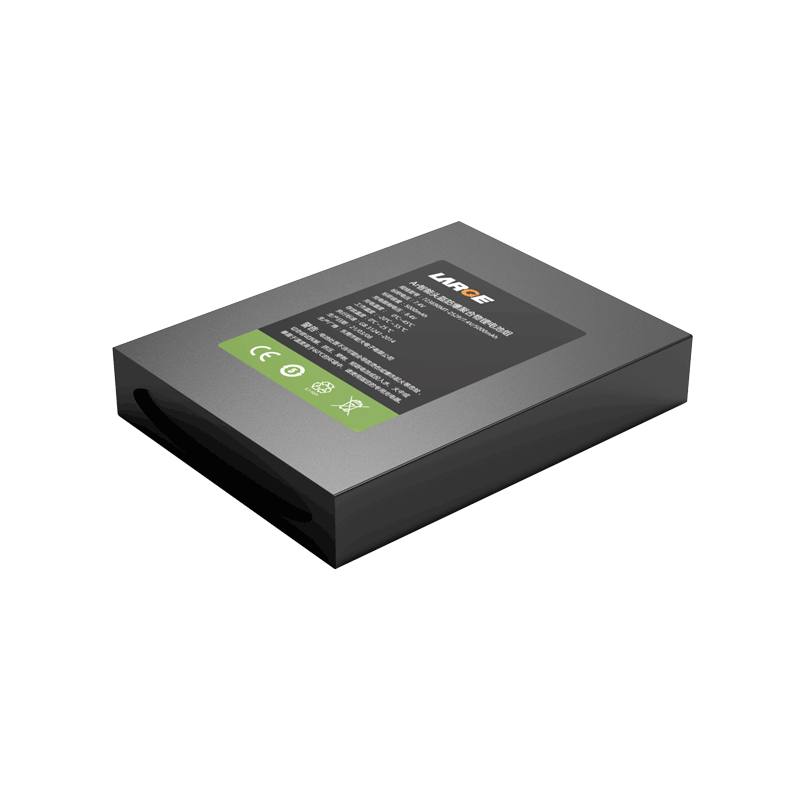

7.4V 5000mAh Lithium Polymer Battery for Smart Helmet

Project number: 34AQ080-02

Battery model: LA723690EX/2500mAh/3.7V- explosion-proof

Battery specification: 723690MT-2S2P/7.4V/5000mAh- explosion-proof

Nominal voltage: 7.4V

Nominal capacity: 5000mAh

Charging voltage: 8.4V charging

Charging current: ≤2.5A

Discharge current: 2.3A

Instant discharge current: 6.0A

Discharge cut-off voltage: 3.0V

Internal resistance of finished product: ≤200mΩ

Battery weight: 600g

Product dimension: 16.5*74*96mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: 0 ~ 25℃

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: explosion-proof AR smart helmet
