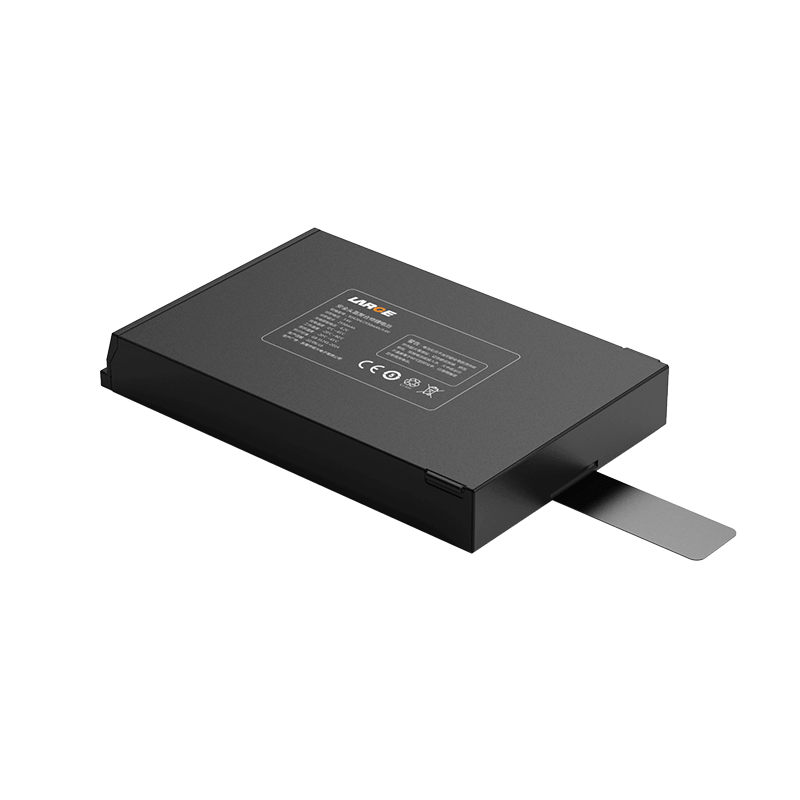

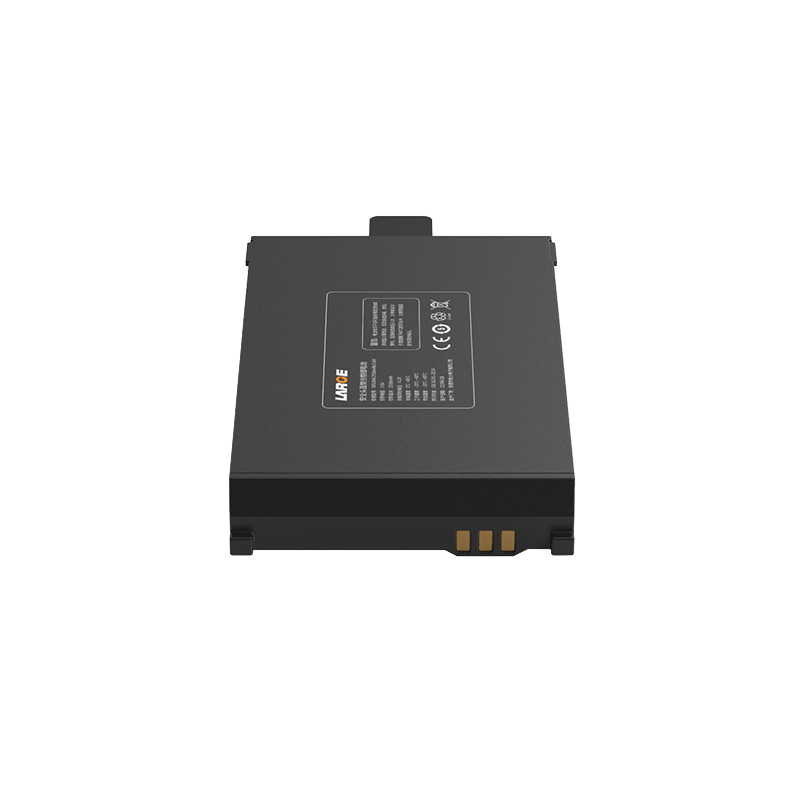

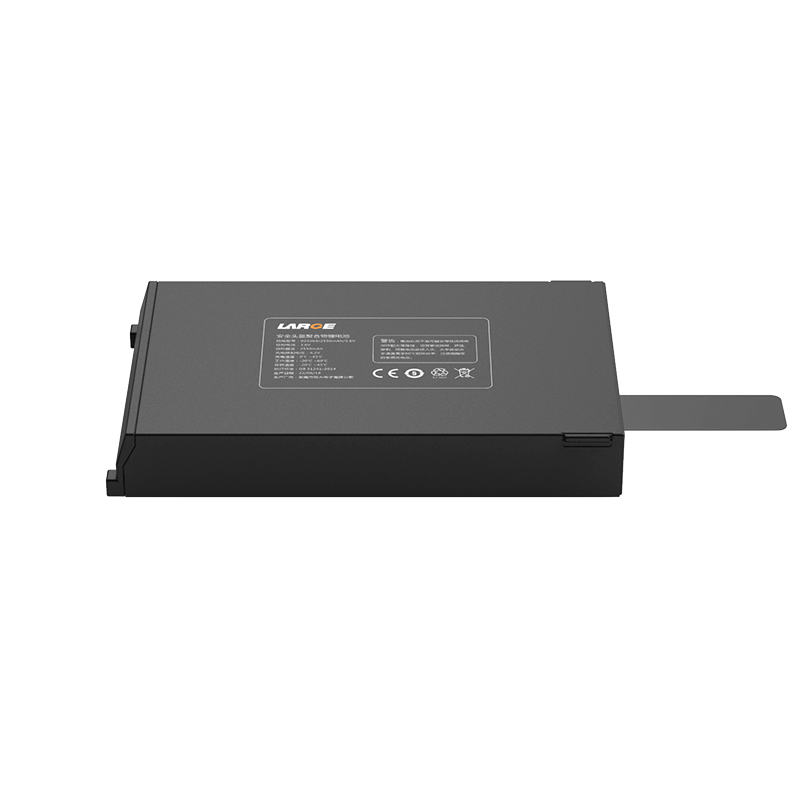

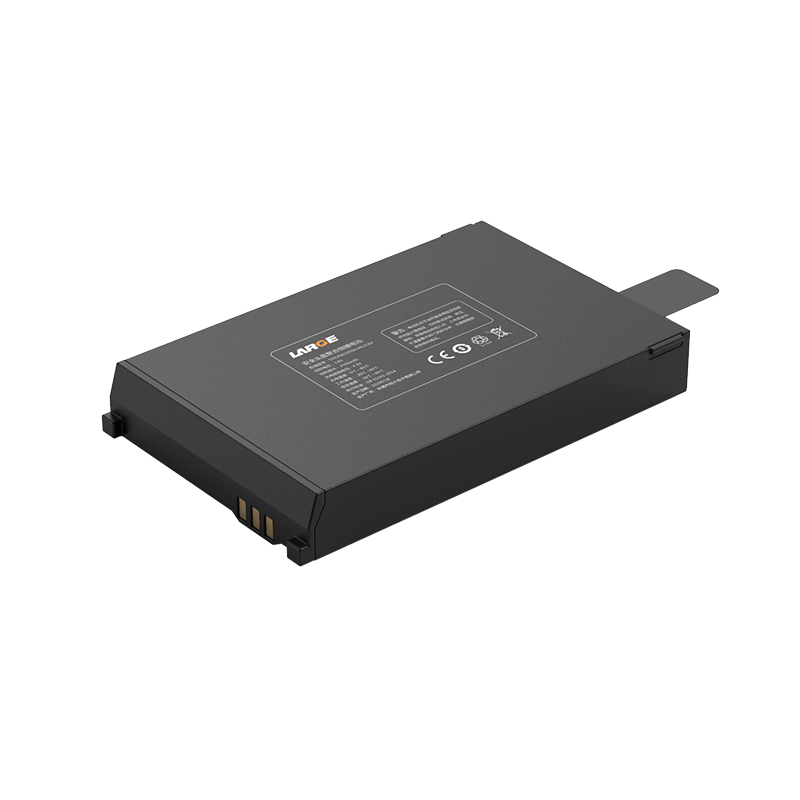

924264 3.7V 2550mAh Lithium Polymer Battery for Safety Helmet

Project number: 33DZ043-01

Cell model: 924264/2550mAh/3.6V

Battery specification: 924264-1S1P/2550mAh/3.6V

Nominal voltage: 3.6V

Nominal capacity: 2550mAh

Charging voltage: 4.2V

Charging current: ≤2A

Discharge current: 1.25A

Instant discharge current: 3-6A

Discharge cut-off voltage: 2.4V

Finished internal resistance: ≤400mΩ

Battery weight: 56g

Product size: 11.3*46.2*71.57mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: Plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,NTC and so on

Application: Safety helmet

Product Features

1.Low self consumption;

2.NTC test temperature

3.The battery has good safety, nice low temperature performance and long cycle life.

4.The battery has long cycle life, which accord with low carbon, energy saving, environmental protection value concept;

5.Explosion-proof design
