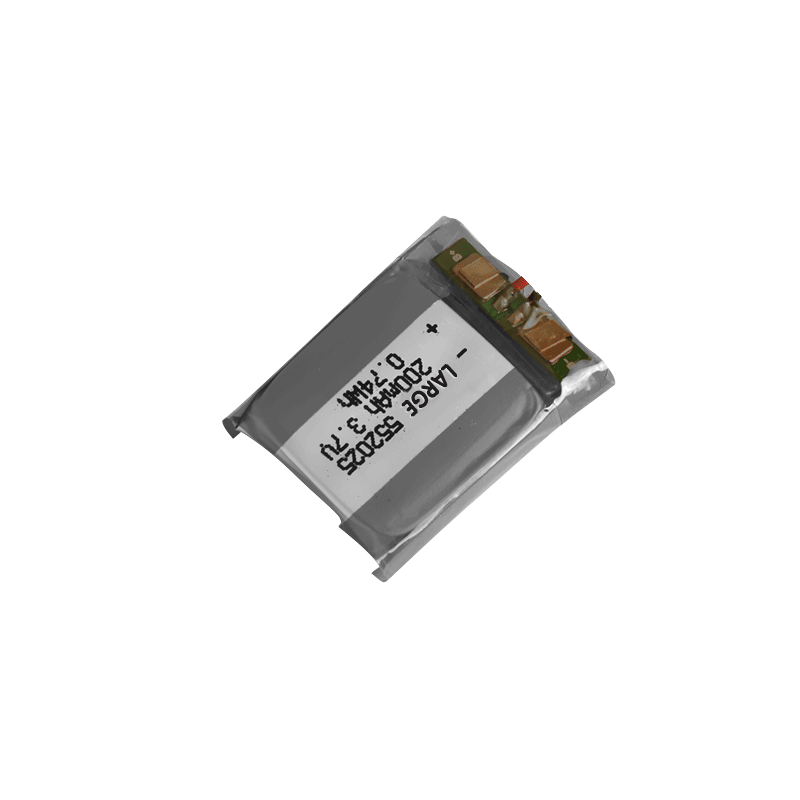

3.7V 200mAh 552025 Lithium Polymer Battery for Communications and Security Products

Product number: 00BQ0001-05

Battery model: P552025E-R01/200mah /3.7V

Nominal voltage: 3.7V

Nominal capacity: 210mAh

Factory voltage: 3.80V~3.95V

Product dimension: Max: 27.5mm*20.6mm*5.7mm

Internal resistance of products: ≦ 260 m Ω

Battery weight: about 7.0G

Output mode: JST-ZHR-2P forward /UL3302/26#

Duration: 12 months

Operating temperature: 0~+45℃ charging, -10℃~+60℃ discharge

Battery charging: Charging limit voltage: 4.2V Charging current: 40mA(standard) 200mA(maximum)

Battery discharge: Discharge cut-off voltage: 3.0V Discharge current: 40mA(standard) 200mA(maximum)
