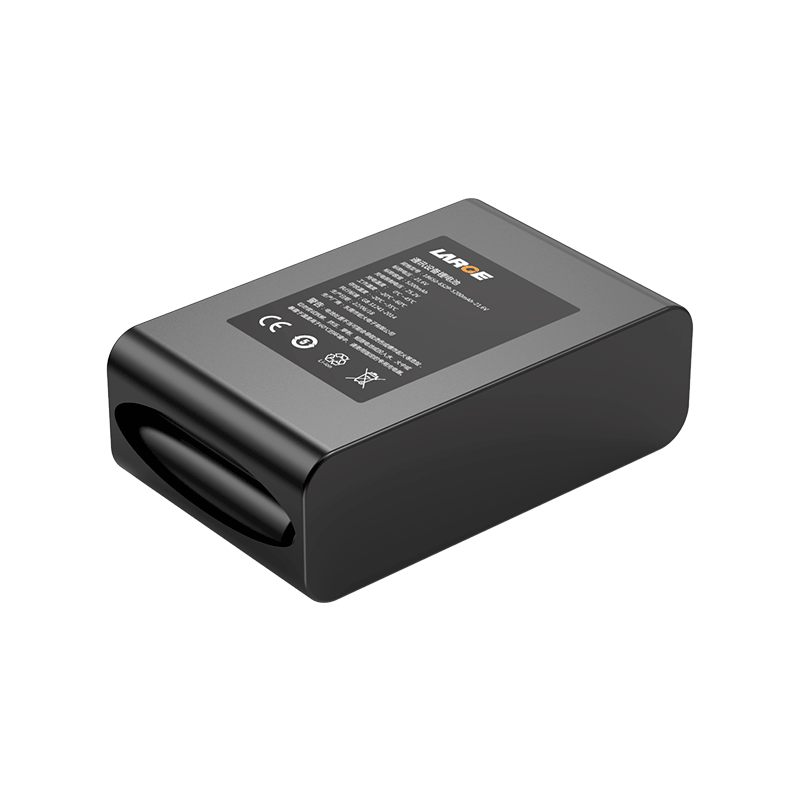

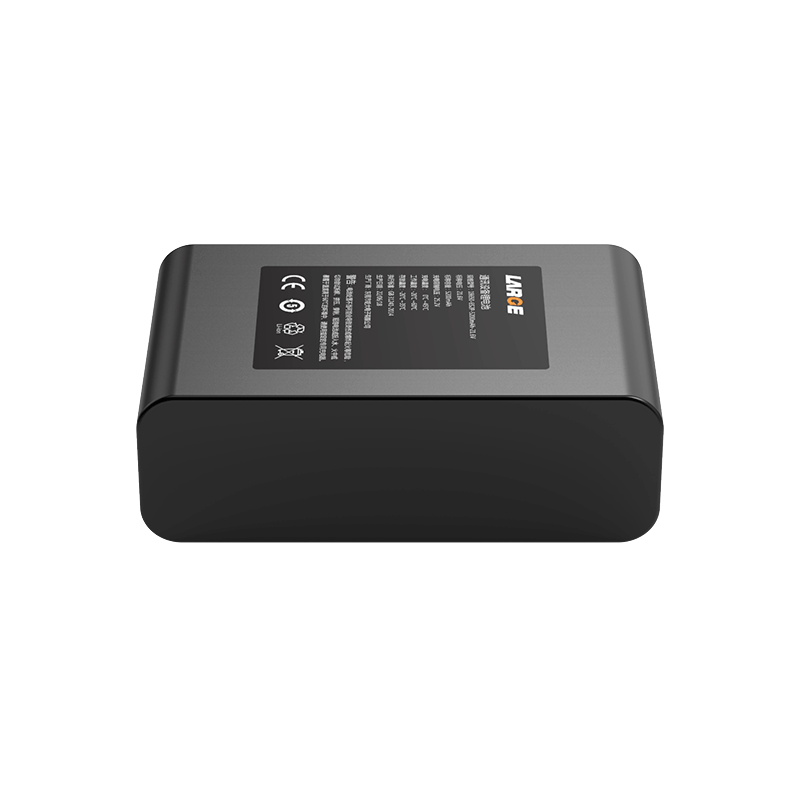

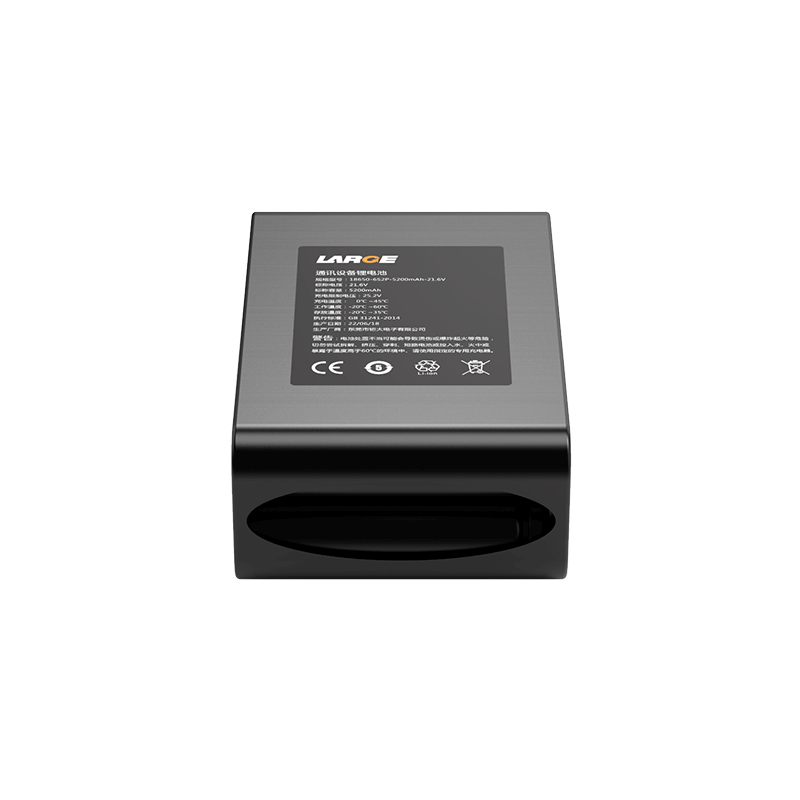

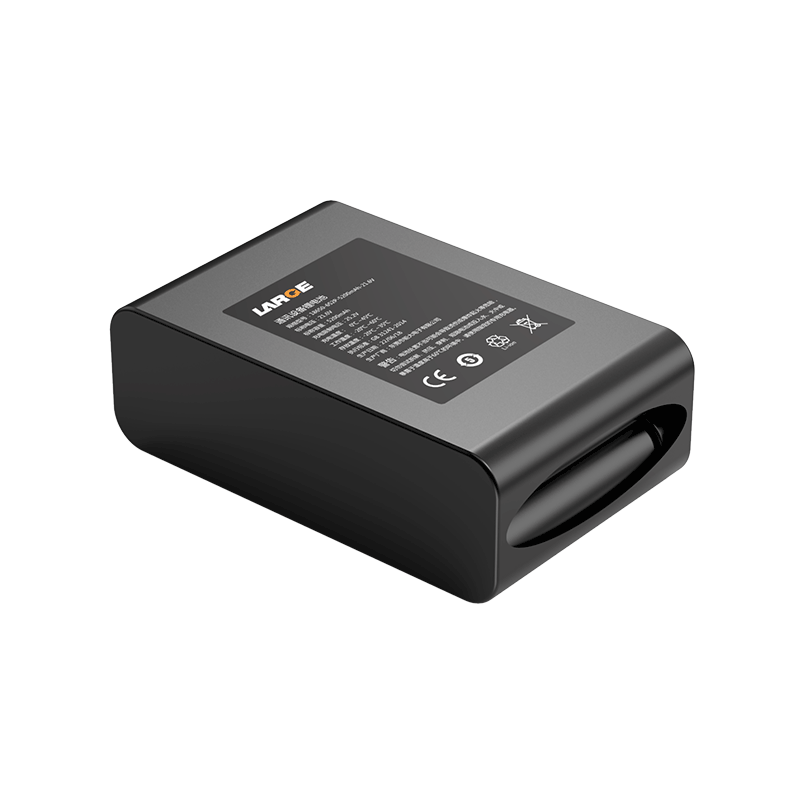

18650 21.6V 5200mAh Lithium-ion Battery for Communication Equipment

Product number: 36AQ613-01

Cell model: 18650-2600mAh-3.6V

Battery specification: 18650-6S2P-5200mAh-21.6V

Product size: 115*72*38mm (Max)

Nominal voltage: 21.6V

Nominal capacity: 5200mAh

Finished internal resistance: ≤180mΩ

Charging voltage: 25.2V

Charging current: ≤2.5A

Discharge current: ≤2.5A

Discharge cut-off voltage: 15V

Battery weight: 750g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: blue PVC heat shrinkable film

Output mode: JST plug

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Application: Communication equipment
