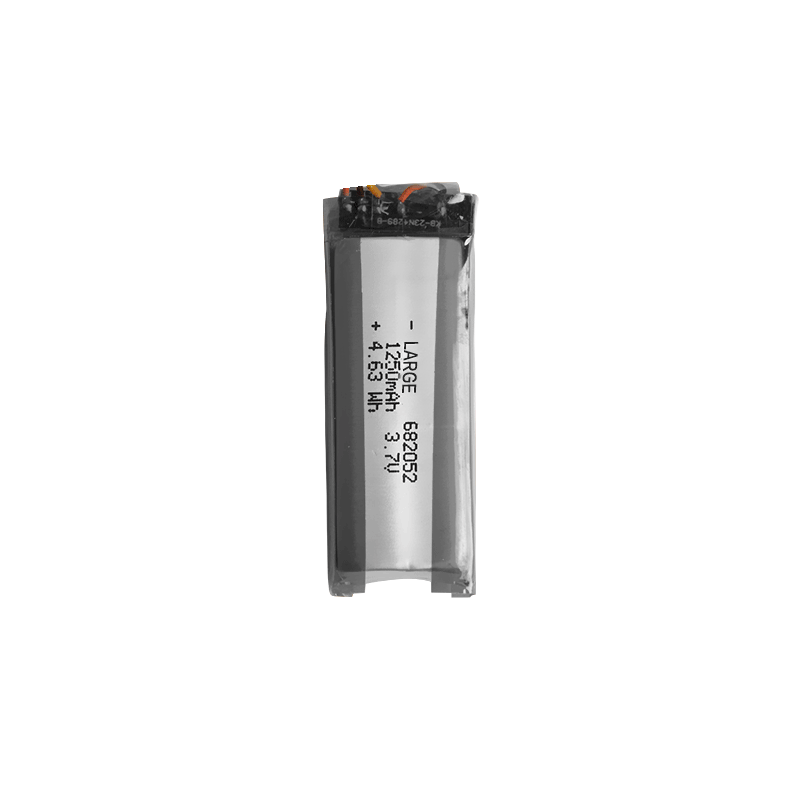

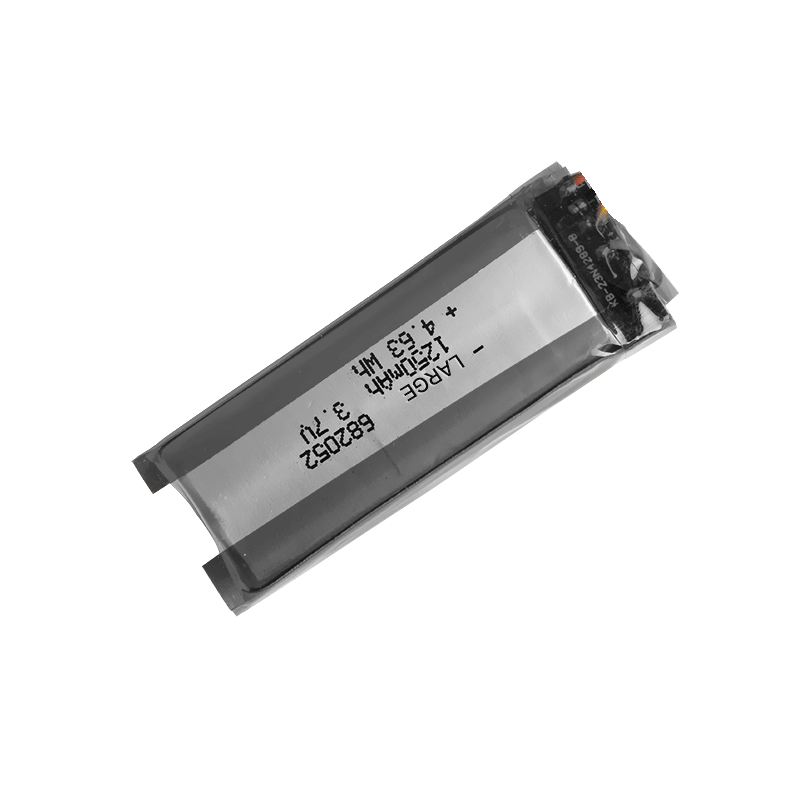

3.7V 1250mAh 682052 Lithium Polymer Battery Lithium Cobalt Acid Battery

Product number: 00BQ0001-10

Battery model: P682052N-2P-R02/1250mah /3.7V

Nominal voltage: 3.7V

Nominal capacity: 1250mAh

Factory voltage: 3.75V~3.95V

Product dimension: Max: 57.0mm*21.5mm*15.0mm

Internal resistance of products: ≦ 200 m Ω

Battery weight: about 26.0g

Output mode: FORWARD jST-ZHR-3P

Duration: 12 months

Operating temperature: 0~+45℃ charging, -10℃~+60℃ discharge

Battery charging: Charging limit voltage: 4.2V Charging current: 250mA(standard) 1250mA(maximum)

Battery discharge: Discharge cut-off voltage: 3.0V Discharge current: 250mA(standard)
