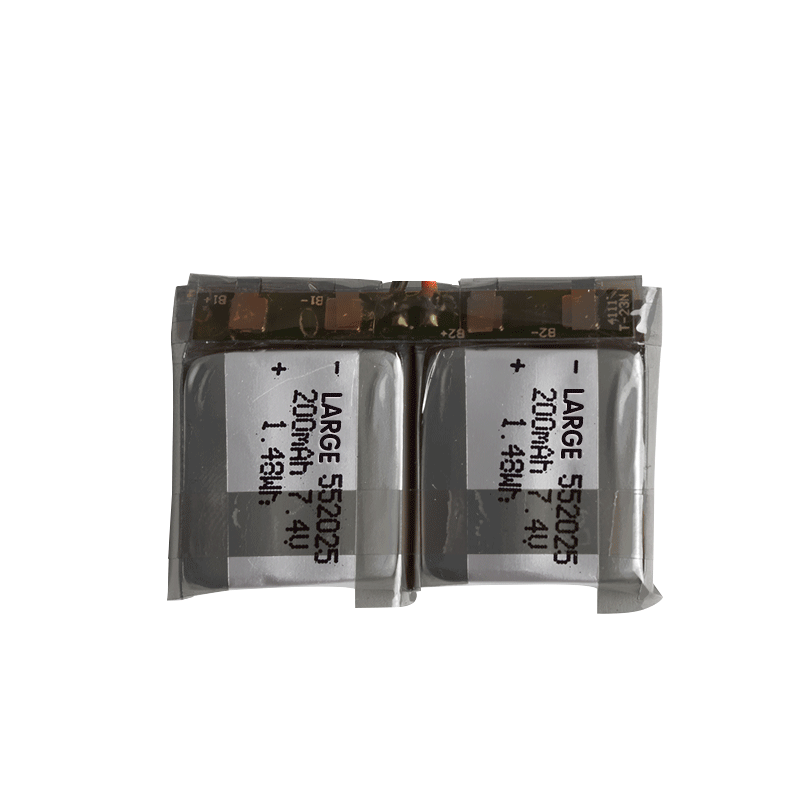

7.4V 200mAh 552025 Lithium polymer Battery

Product number: 00BQ0001-02

Battery model: P552025E-2S-R01/190mah /7.4V

Nominal voltage: 7.4V

Nominal capacity: 200mAh

Factory voltage: 7.6V~7.9V

Product dimension: Max: 27.0mm*42.0mm*5.80mm

Internal resistance of products: ≦ 450 m Ω

Battery weight: about 12.0g

Output mode: JST-ZHR-2p forward /UL1007/26#

Duration: 12 months

Operating temperature: 0~+45℃ charging, -10℃~+60℃ discharge

Battery charging: Charging limit voltage: 8.4V Charging current: 40mA(standard) 200mA(maximum)

Battery discharge: discharge cut-off voltage: 6.0V discharge current: 40mA(standard) 300mA(maximum)
