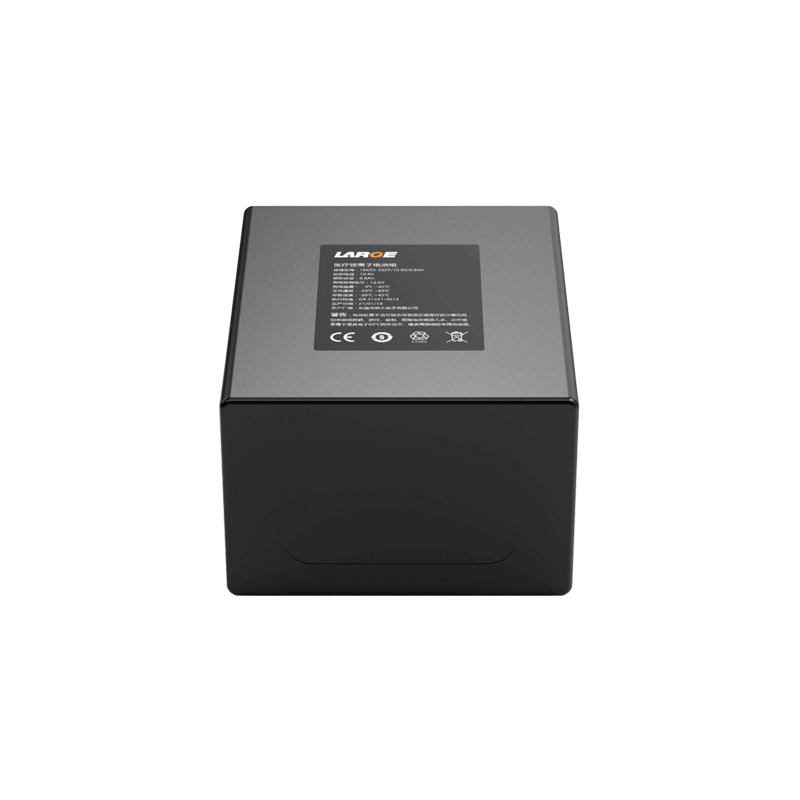

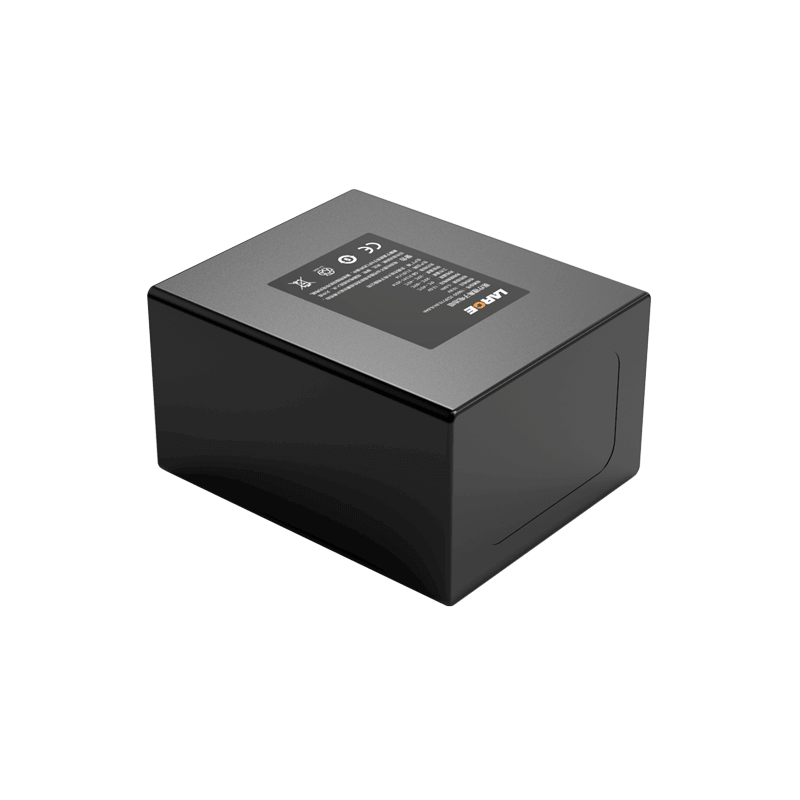

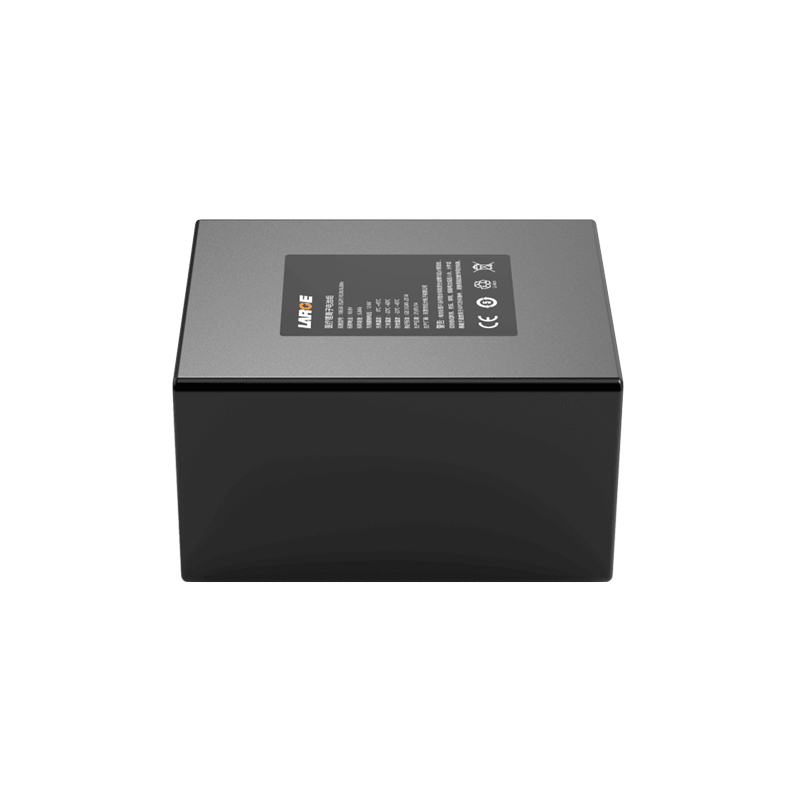

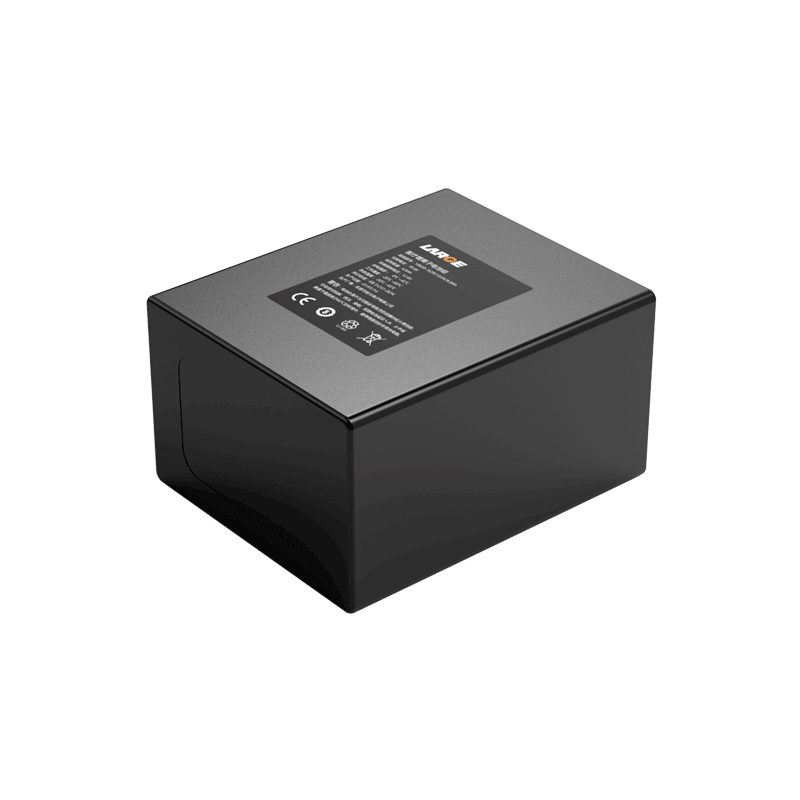

18650 10.8V 6.8Ah Samsung Battery for Medical Equipment

Project number : 33DZ009-02

Cell model: 18650/3.6V/3.4Ah

Battery specification: 18650-3S2P/10.8V/6.8Ah

Nominal voltage: 10.8V

Nominal capacity: 6.8Ah

Charging voltage: 12.6V

Charging current: ≤3.4A

Discharge current: 10A

Instant discharge current: 15A

Discharge cut-off voltage: 7.5V

Finished product internal resistance: ≤150mΩ

Battery weight: 300g

Product dimension: 74*62*42mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Temperature protection: 75℃±5℃

Battery case: PVC

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.

Application: Medical battery
