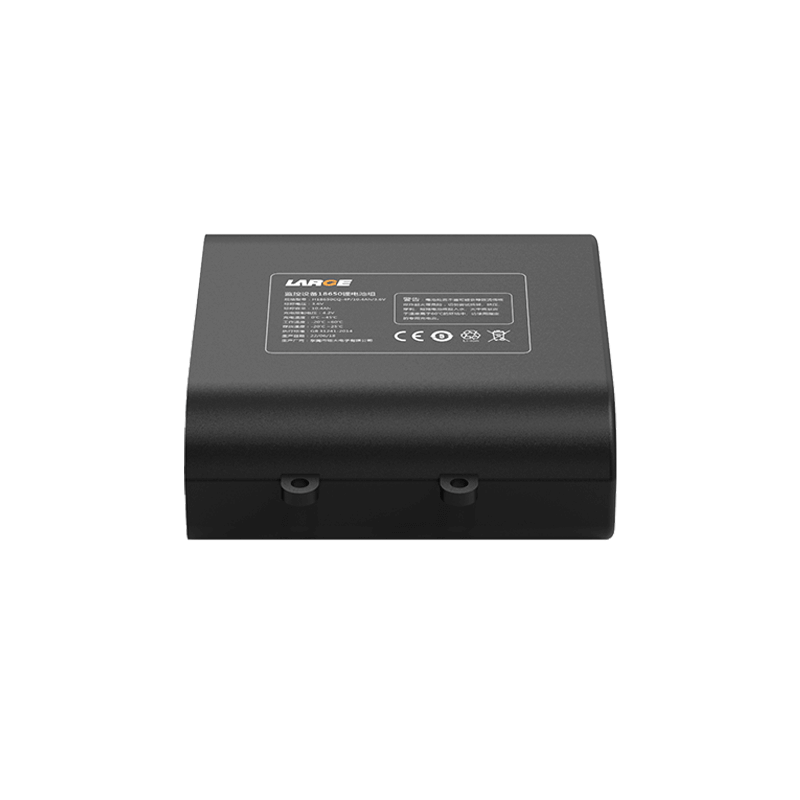

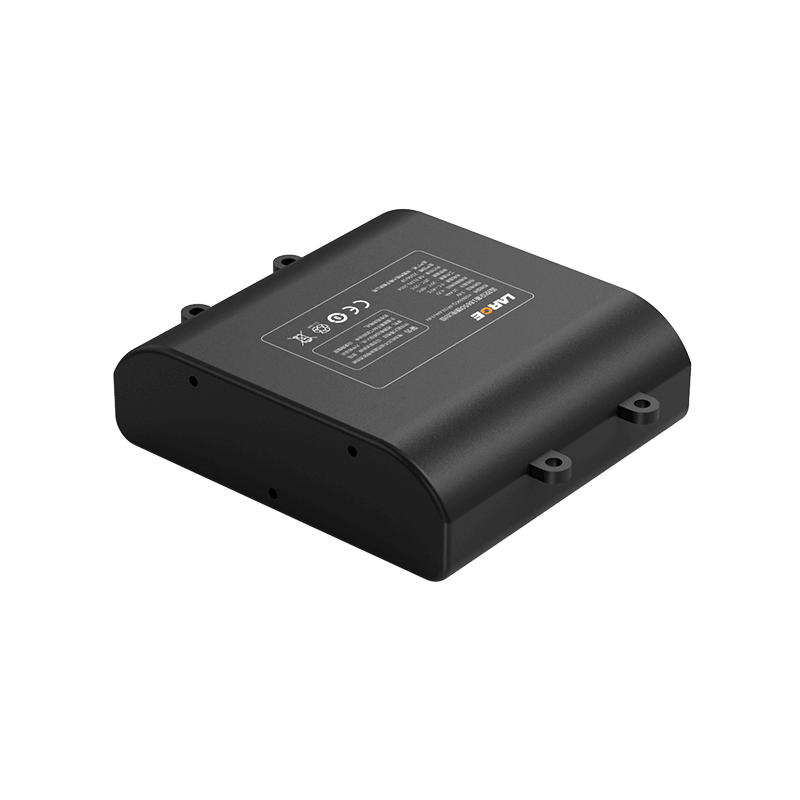

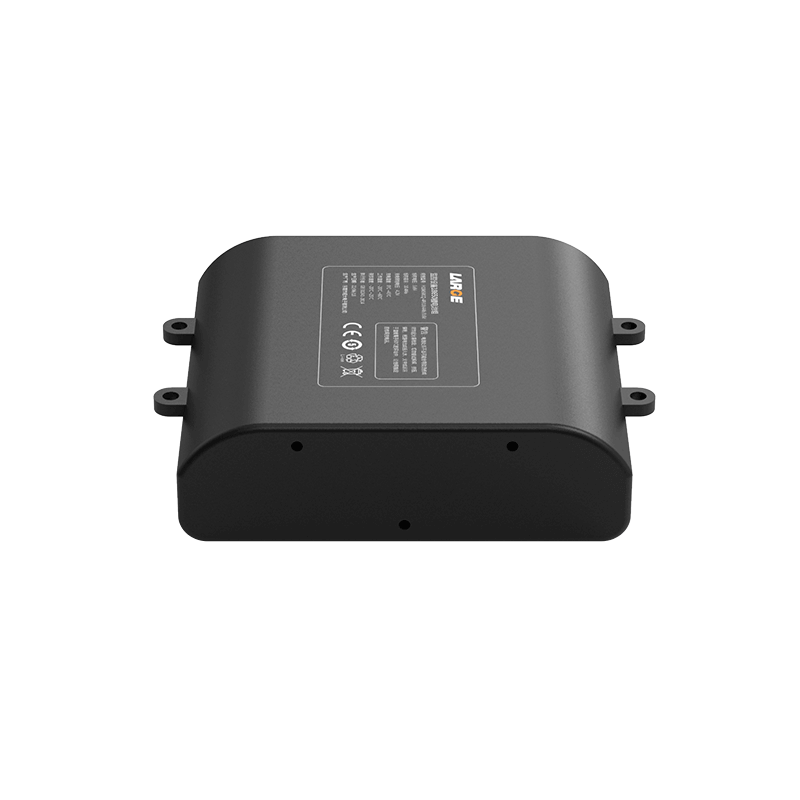

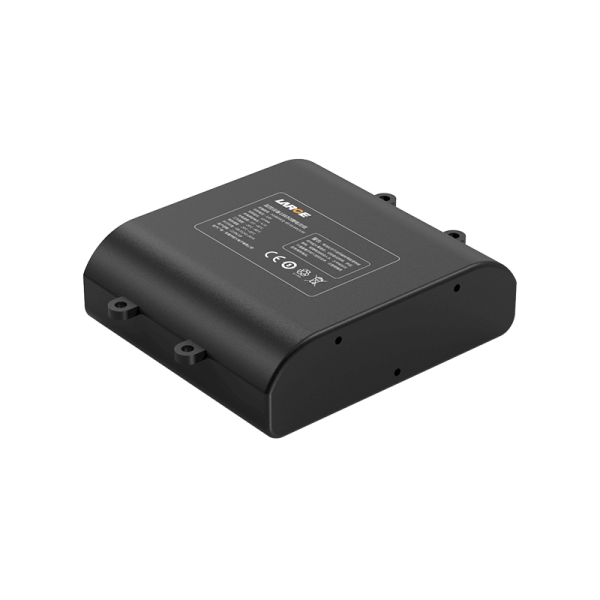

18650 3.6V 10.2Ah Lithium-ion Battery for Monitor Device

Project number: 01DQ0040-28

Cell model: H18650CQ/2550mAh/3.6V

Battery specification: H18650CQ-1S4P/10.4Ah/3.6V

Nominal voltage: 3.6V

Nominal capacity: 10.2Ah

Charging voltage: 4.2V

Charging current: ≤2.04A

Discharge current: 6.0A

Transient discharge current: 7A

Discharge cut-off voltage: 3.0V

Finished internal resistance: ≤250mΩ

Battery weight: 250g

Product dimension: 24*71*79mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 25℃

Battery encapsulation: ABS+PC

Intelligent lithium battery protection: capacity calculation, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection.

Application: Security monitoring
