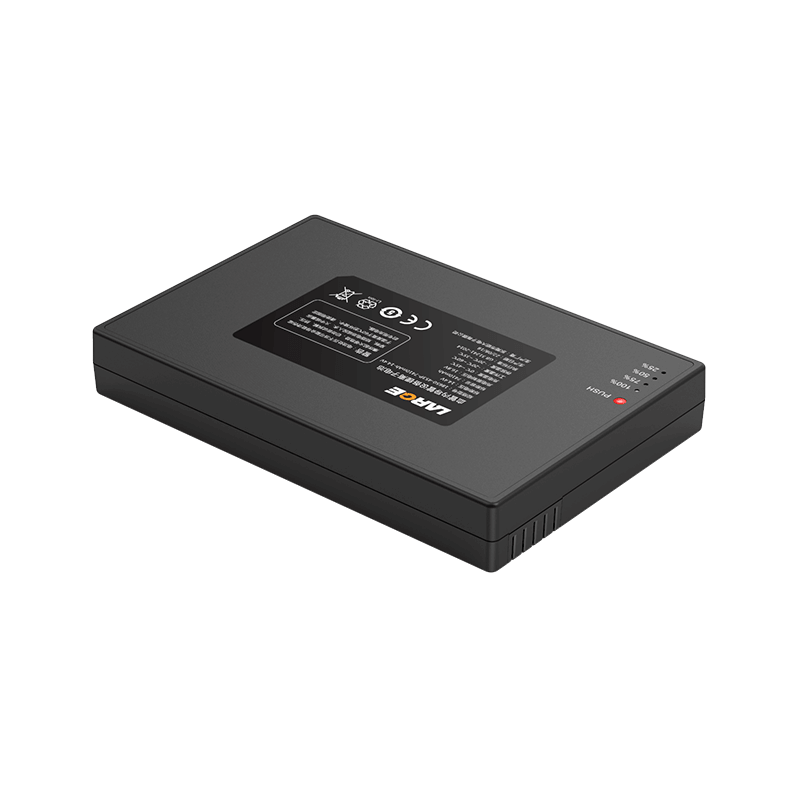

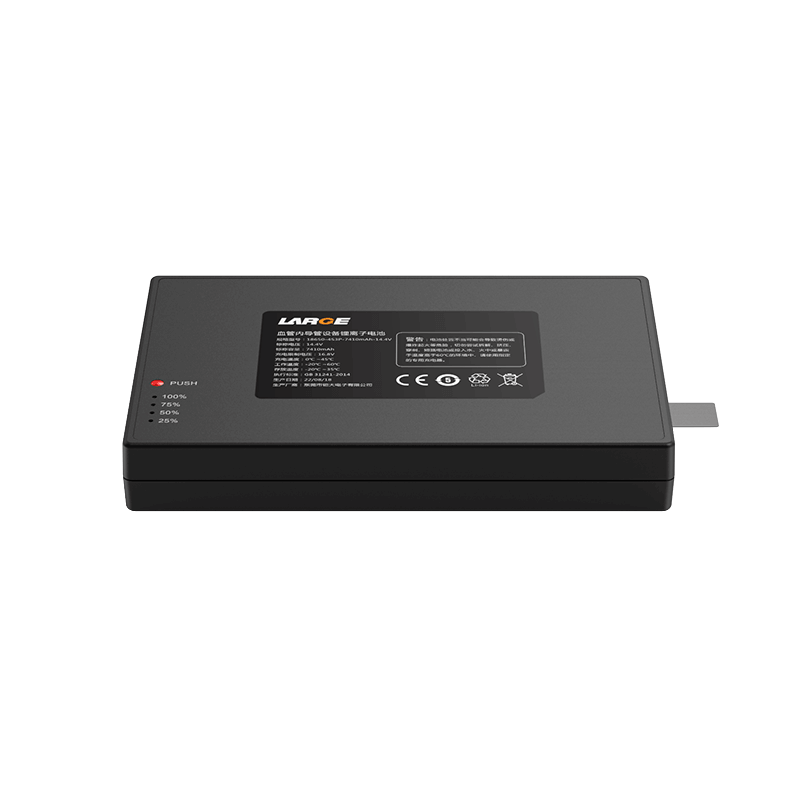

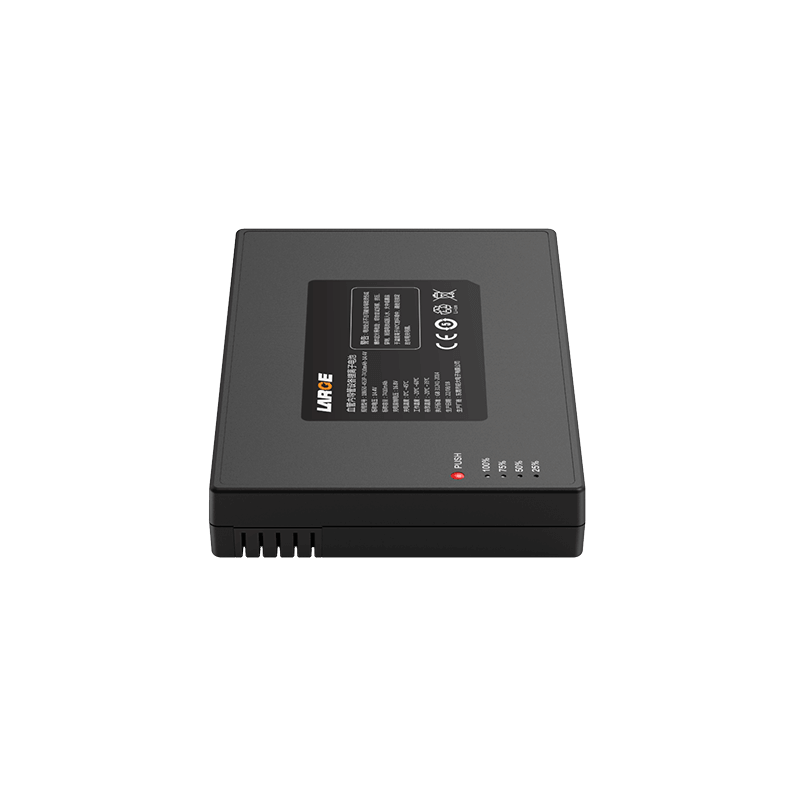

18650 14.4V 7410mAh Lithium-ion Battery for Endovascular Catheter Equipment

Product number: 01WQ0079-01

Cell model: 18650-2550mAh-3.6V

Battery specification: 18650-4S3P-7410mAh-14.4V

Product size: 165*109*24mm (Max)

Nominal voltage: 14.4V

Nominal capacity: 7410mAh

Finished internal resistance: ≤150mΩ

Charging voltage: 16.8V

Charging current: ≤3.75A

Discharge current: ≤6A

Discharge cut-off voltage: 12.0V

Battery weight: 700g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Application: Endovascular catheter equipment, medical equipment

Product Features

1.ABS + PC case increases the reliability and stability of the battery;

2.The battery pack uses special connection, resistance for better shock impact resistant performance;

3.Hardware output:Use gold-plated shrapnel output method to increase conductive reliability;

4.Data communications management: Use TI - SMBus software management chip, SMBus communication data transmission, accurate temperature control precision to eliminate potential safety problems.

5.Battery management: Use TI protection chip with good stability, high precision monitoring, precision control, ESD protection, temperature protection function to minimize potential security risks.

6.The battery has good safety, nice discharge performance and long cycle life.

7.The battery has long cycle life,which accord with low carbon, energy saving, environmental protection value concept;
