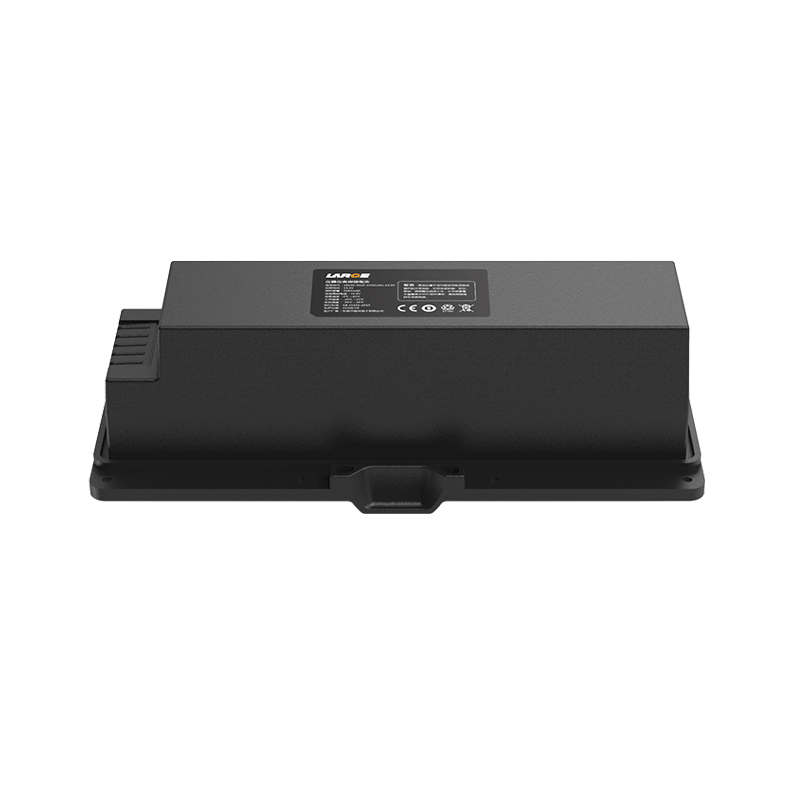

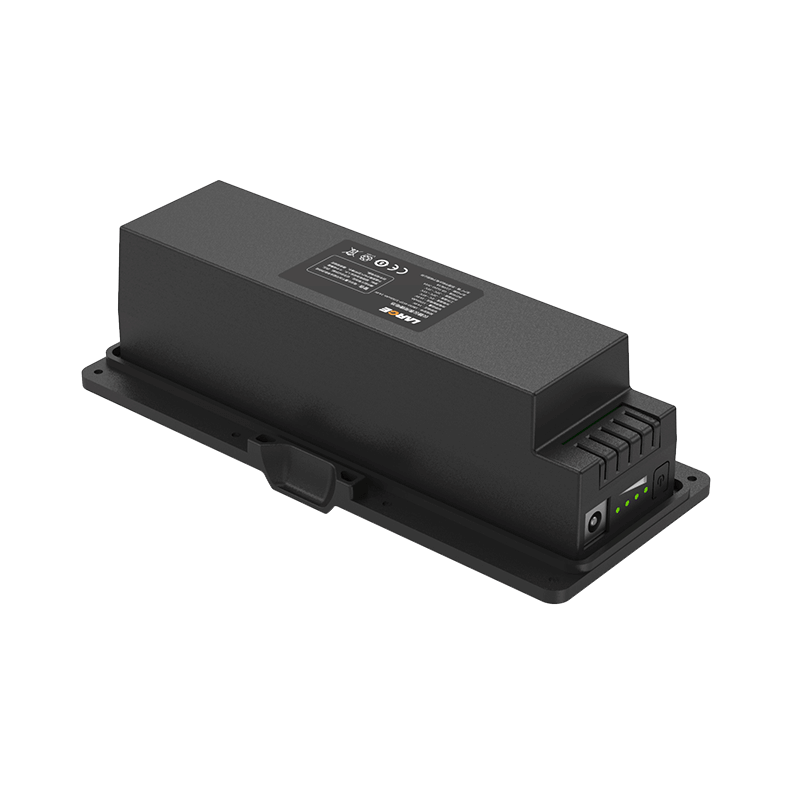

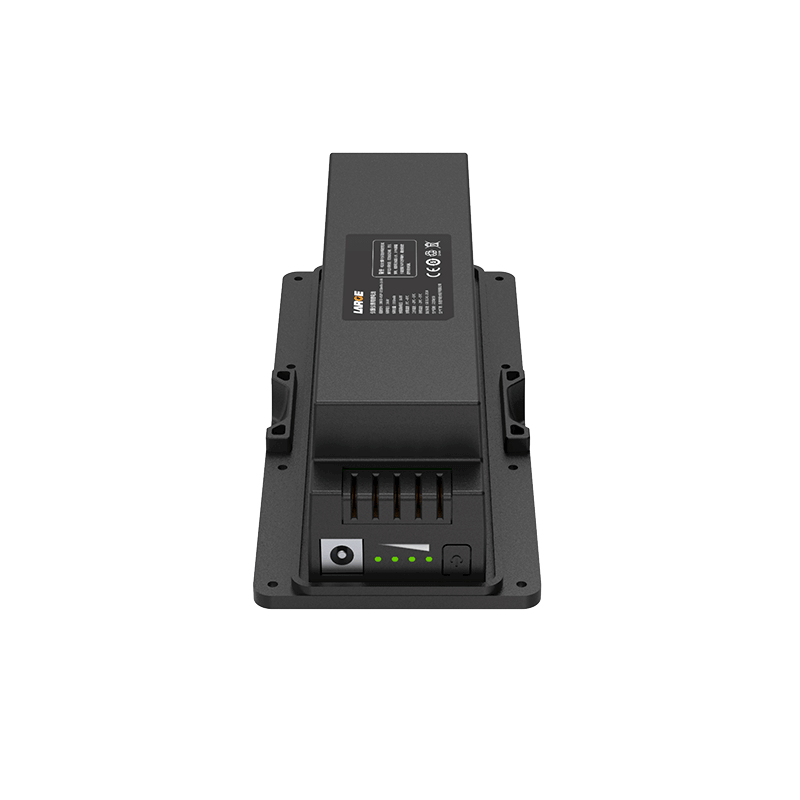

18650 14.4V 6700mAh Batteries for Instrumentation

Product number: 40AQ013-03

Cell model: 18650-3350mAh-3.6V

Battery specification: 18650-4S2P-6700mAh-14.4V

Nominal voltage: 14.4V

Nominal capacity: 6700mAh

Charging voltage: 16.8V

Charging current: ≤3200mA

Discharge current: 1280mA

Maximum discharge current: 5000mA

Discharge cut-off voltage: 11.2V

Internal resistance of finished product: ≤200mΩ

Battery weight: 520g

Product size: 157*54*42.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ +55℃

Storage temperature: -20 ~ +35℃

Battery package: plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, SMBUS communication, etc.

Application: handheld device, portable device, instrument, security
